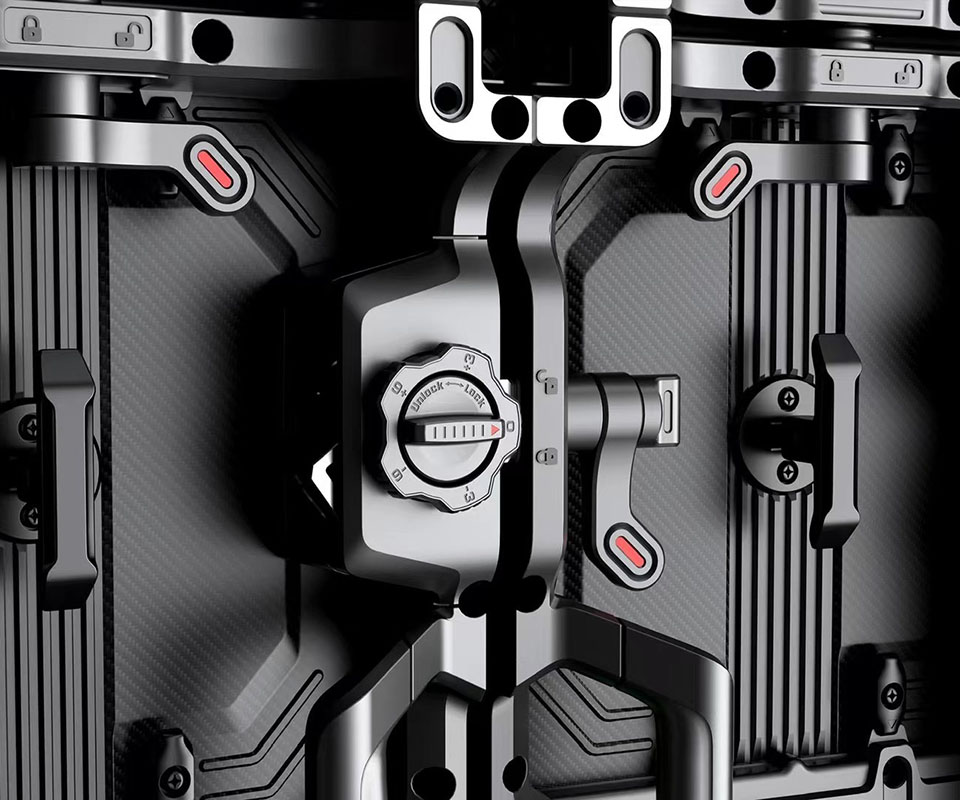

Curved Locks

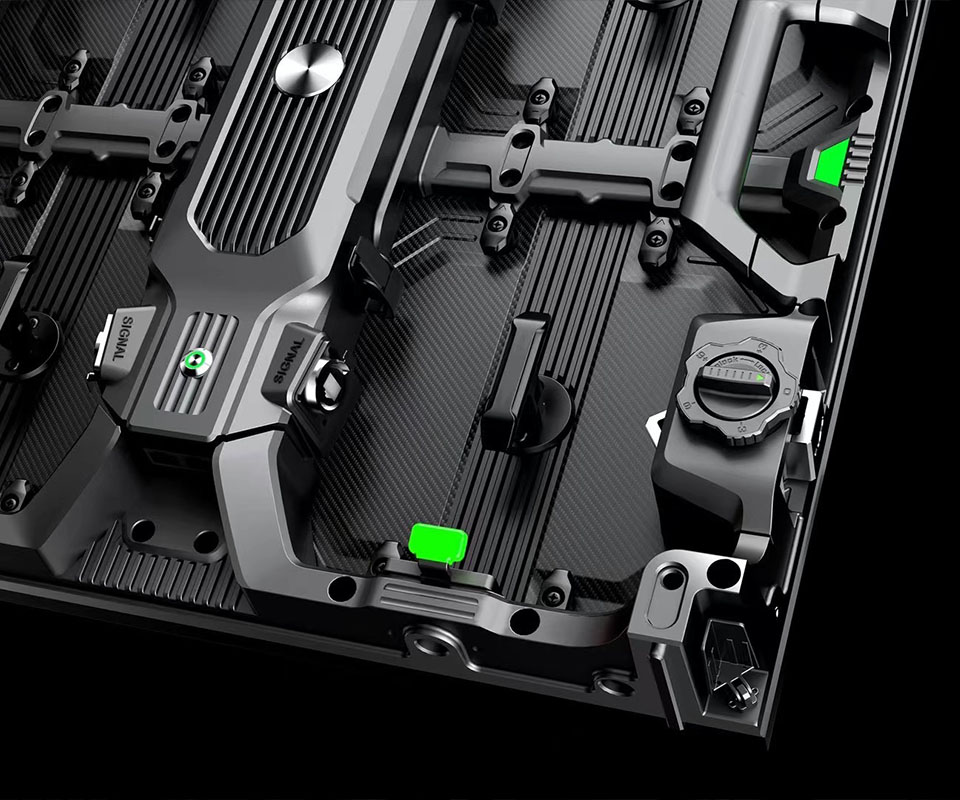

Corner Protection

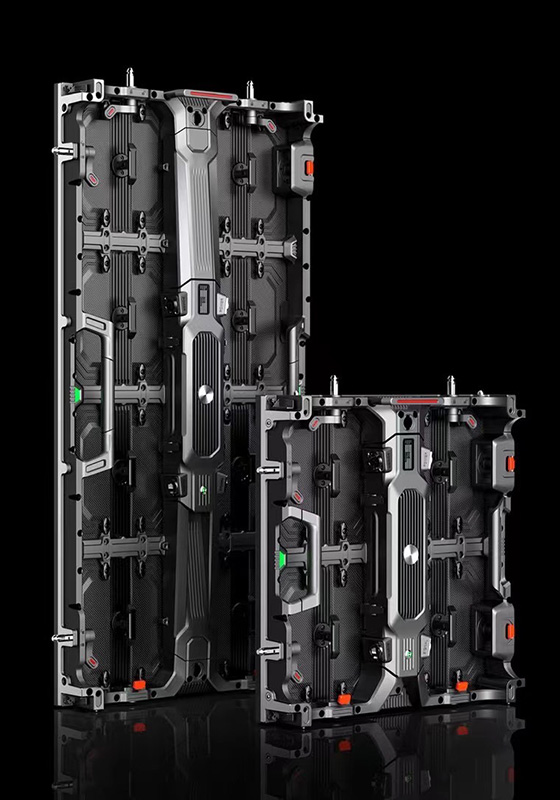

| Pixel pitch | P2.604mm | P2.976mm | P3.91mm | P4.81mm |
| LED Type | SMD1515 | SMD1515 | SMD2121 | SMD2121 |
| Density(dot/sqm) | 160000 | 112896 | 65536 | 43264 |
| Module Resolution | 96X96 | 84X84 | 64X64 | 52X52 |
| Module Size (mm) | 250X250 | 250X250 | 250X250 | 250X250 |
| Panel Resolution | 192X192 | 168X168 | 128X128 | 104X104 |
| Maintenance | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| Cabinet Frame | Aluminum | Aluminum | Aluminum | Aluminum |
| Brightness(cd/m2) | 800-5000 | 800-5000 | 800-5000 | 800-5000 |
| Color Temperature(K) | 3200-9300 | 3200-9300 | 3200-9300 | 3200-9300 |
| Grey Level(bit) | 14/16 | 14/16 | 14/16 | 14/16 |
| View Angle(H/ V) | 160° /160° | 160°/160° | 160°/160° | 160°/160° |
| Contrast Ratio | 5000/1 | 5000/1 | 5000/1 | 5000/1 |
| Frenquency(Hz) | 50/60 | 50/60 | 50/60 | 50/60 |
| Drive Mode | 1/32 Scan | 1/28 Scan | 1/16 Scan | 1/13 Scan |
| Max Power Consumption | 800(w/m²） | 800(w/m²） | 800(w/m²） | 800(w/m²） |
| Avg Power Consumption | 200(w/m²） | 200(w/m²） | 200(w/m²） | 200(w/m²） |
| Power Requirment | AC220V,50Hz | AC220V,50Hz | AC220V,50Hz | AC220V,50Hz |
| The specifications are for reference, actual values may vary. | ||||
We use Seatronic/CNLinco Power plugs for the Rental LED Screens cabinets power connections.
We use Seatronic/CNLinco Newwork plugs for the Rental LED Screens cabinets data connections.
We cooperate with Novastar tech/Colorlight/Huidu/VDWALL/Linsn tech for the controllers and processor.
We also offer high quality aluminum truss for rental LED screen, steady build and easy to install and uninstall.

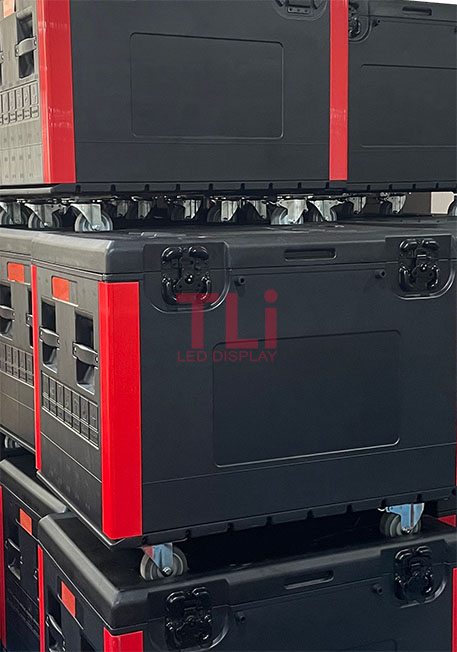

For better transportation and more stronger case for storage,we use the latest design flight case.
SHENZHEN TLI LED, specializing in the research, development, production and sales of LED displays, provides customers with diversified LED display solutions based on advanced technology and excellent quality, which are widely used in commercial advertisements, stadiums, conferences and exhibitions, etc. TLI LED, lighting up the world of vision, leading the future!
