TLI LED TIF640-Magnesium Alloy Standard cabinet Size 640x480mm.Match all the Standard LED Display Cabinet Screw Holes for standard led module 320x160mm. For most of the project can fit different pitch led modules to meet the requirements of replacements or upgrade project resolution, with simple steps your projects will be refresh significant efficient.After using years of LED display screen you could get new screen in a super low cost way.
TLI LED TIF640 Series LED display with standard LED panel size: 320mm*160mm. With the lowest cost to renew the old screens becomes super simple.For example P10mm aged LED display if end customers want to upgrade the resolution to make better advertising performance, Just change the modules with our standard module, same cabinet, same structure, same screws holes positions, with much less labor cost customers would get exactly what they need.

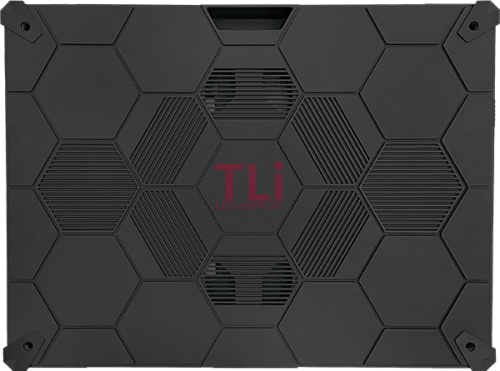

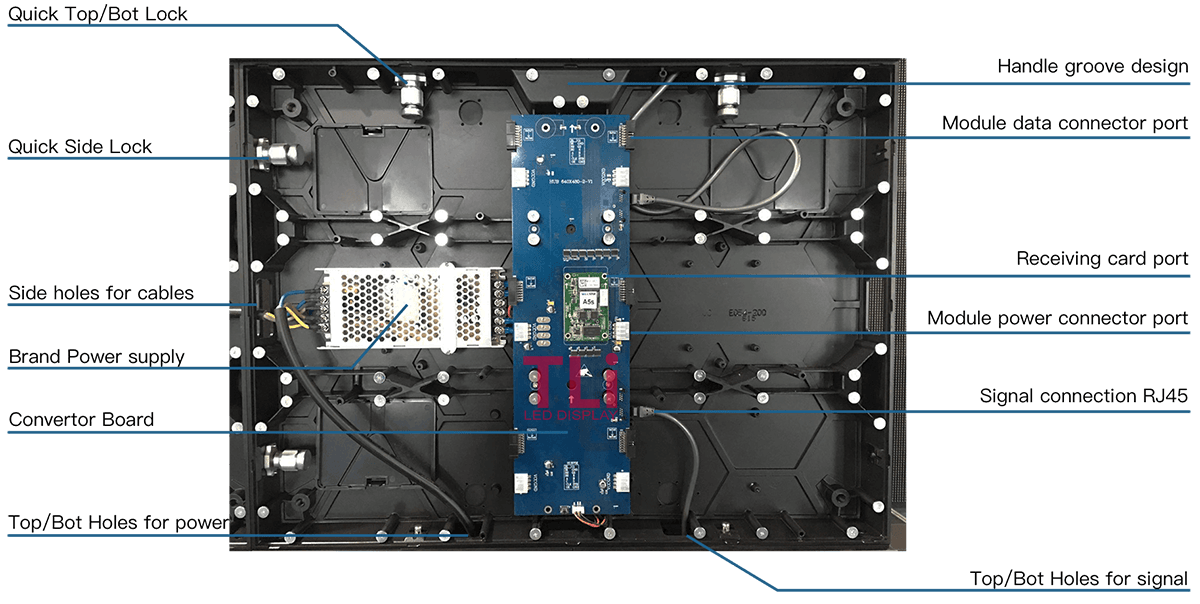

TIF640X480mm Series Magnesium Alloy LED display Product is much Less weight led display with quick locks, delicate structure for easy installation, less labor cost needed. With powerCon and signal connector, the whole installation will be finished in a short time, fast work and less cost. Actually most of the work would be finished in our factory, to keep the LED modules safety, the packing will be separately from the modules, all you need to do is to mount the modules on the cabinet.

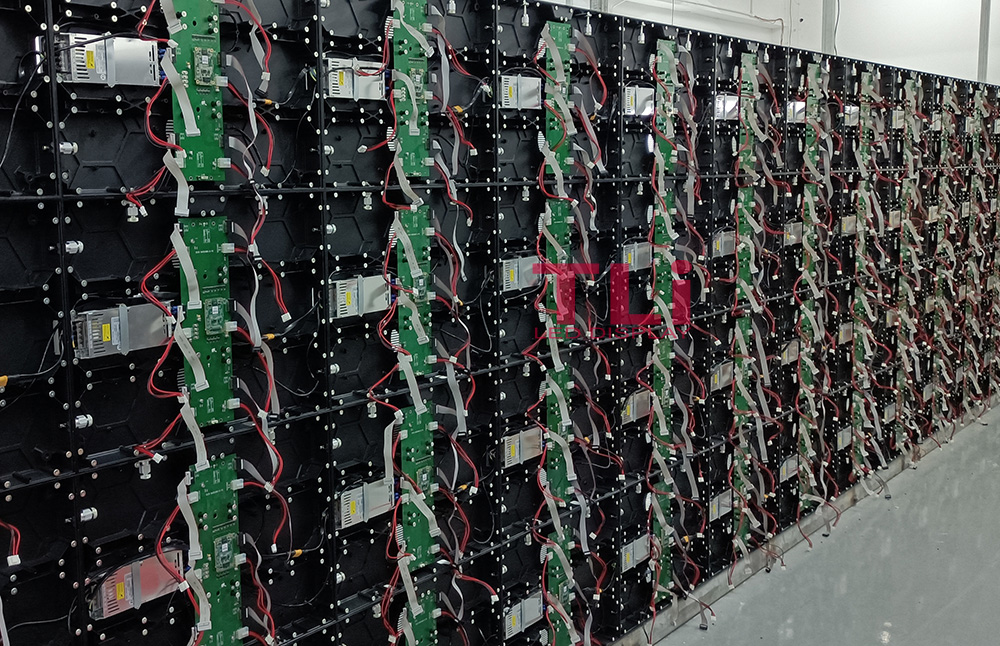

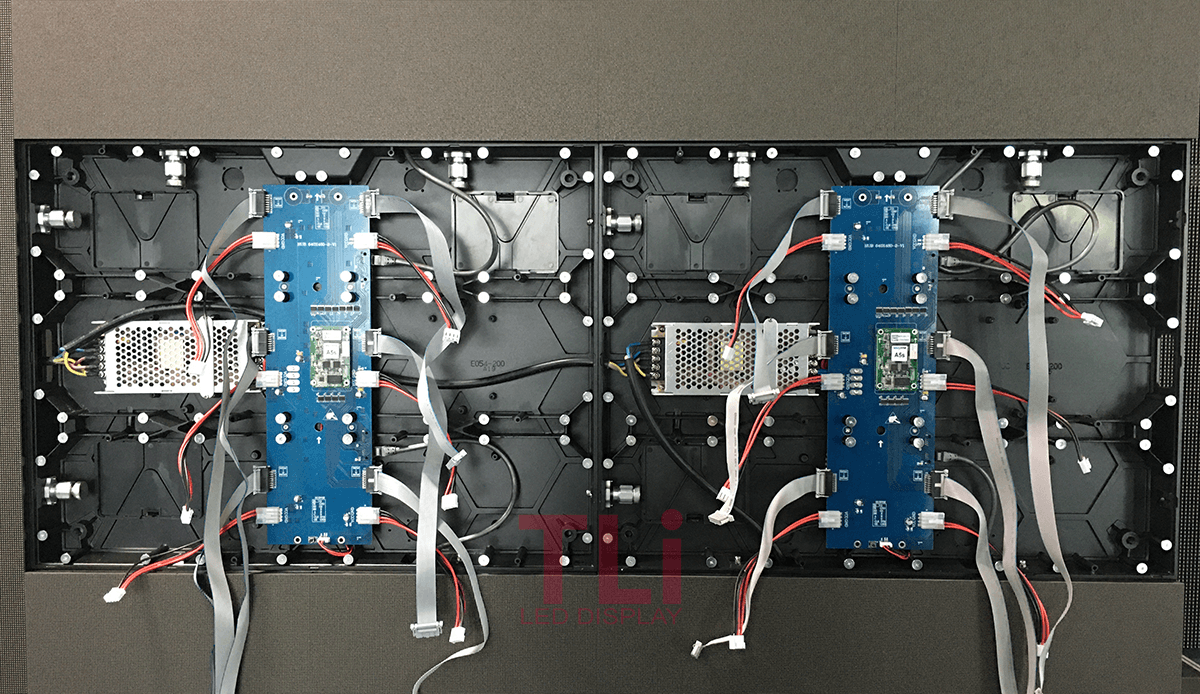

TLI LED TIF640 Series LED Display LED is for indoor fixed installation applications, with standard size 320x160mm LED Modules, from P10mm to fine pixel P1.25mm, TIF640 service could be one of the choice. Front service design for LED power supply, cards and modules, ultra lightweight, magnesium alloy material, 4:3 ratio cabinet with 640*480mm dimension, very good flatness, installation is very easy, also disassembly, for indoor fixed led display and even indoor rental LED display TIF640 is the one could meet the requirements of the cases.

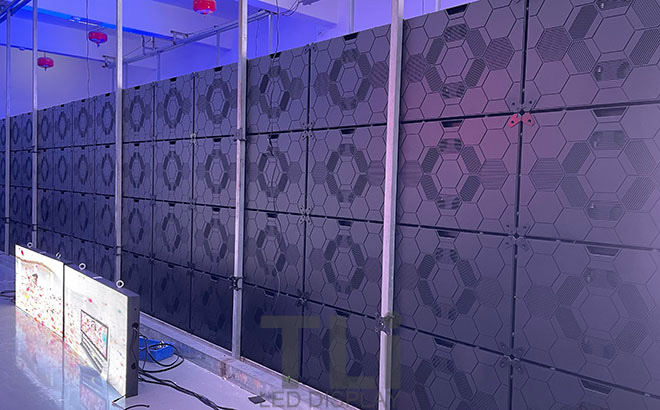

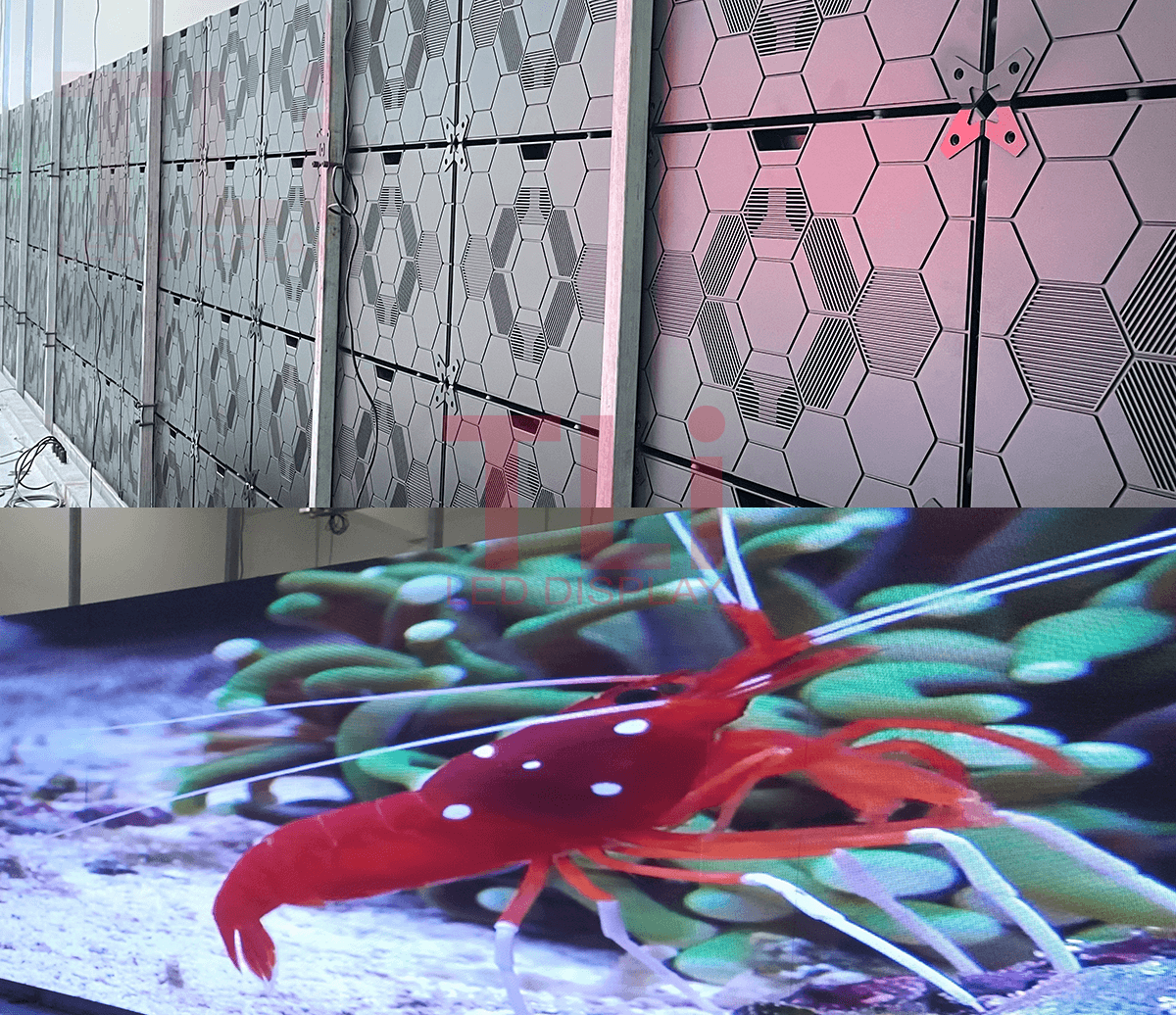

TIF640 Equipped with unique lock, the position of each cabinet can be precisely adjusted from left and right, up and down, front and back, every cabinet can be positioned to the exact place with accuracy to millimeter, presenting a ultraflat and seamless cabinet alignment.
Have LED display projects? Send us message now, we will reply you in 24 hours with the best solution and price for your cases.
| Model | Pixel Pitch | Module Size | Scan Method | Cabinet Size | Cabinet Weight | Brightness(CD/m2) |
| TIF640-1.25 | 1.25mm | 320x160mm | 1/32 Scan | 640x480mm | 5.5kg | 1000-1200 |
| TIF640-1.37 | 1.37mm | 320x160mm | 1/29 Scan | 640x480mm | 5.5kg | 1000-1200 |
| TIF640-1.53 | 1.53mm | 320x160mm | 1/26 Scan | 640x480mm | 5.5kg | 1000-1200 |
| TIF640-1.66 | 1.66mm | 320x160mm | 1/32 Scan | 640x480mm | 5.5kg | 1000-1200 |
| TIF640-1.83 | 1.83mm | 320x160mm | 1/29 Scan | 640x480mm | 5.5kg | 1000-1200 |
| TIF640-1.86 | 1.86mm | 320x160mm | 1/43 Scan | 640x480mm | 5.5kg | 1000-1200 |
| TIF640-2 | 2mm | 320x160mm | 1/40 Scan | 640x480mm | 5.5kg | 1000-1200 |
| TIF640-2.5 | 2.5mm | 320x160mm | 1/32 Scan | 640x480mm | 5.5kg | 1000-1200 |
| TIF640-3.07 | 3.07mm | 320x160mm | 1/26 Scan | 640x480mm | 5.5kg | 1000-1200 |
| TIF640-4 | 4mm | 320x160mm | 1/20 Scan | 640x480mm | 5.5kg | 1000-1200 |
| TIF640-5 | 5mm | 320x160mm | 1/16 Scan | 640x480mm | 5.5kg | 1000-1200 |
256×128 dots/module
512×384 dots/cabinet
640x480mm Indoor LED
208×104 dots/module
416×312 dots/cabinet
640x480mm Indoor LED
192×96 dots/module
384×288 dots/cabinet
640x480mm Indoor LED
160×80 dots/module
320×240 dots/cabinet
640x480mm Indoor LED
128×64 dots/module
256×192 dots/cabinet
640x480mm Indoor LED
104×52 dots/module
208×156 dots/cabinet
640x480mm Indoor LED
80×40 dots/module
160×120 dots/cabinet
640x480mm Indoor LED
64×32 dots/module
128×96 dots/cabinet
640x480mm Indoor LED
We offer full technical support for our customers, also for more information or get quotes from us, click here to contact us.
SHENZHEN TLI LED, specializing in the research, development, production and sales of LED displays, provides customers with diversified LED display solutions based on advanced technology and excellent quality, which are widely used in commercial advertisements, stadiums, conferences and exhibitions, etc. TLI LED, lighting up the world of vision, leading the future!
