Fast Installation

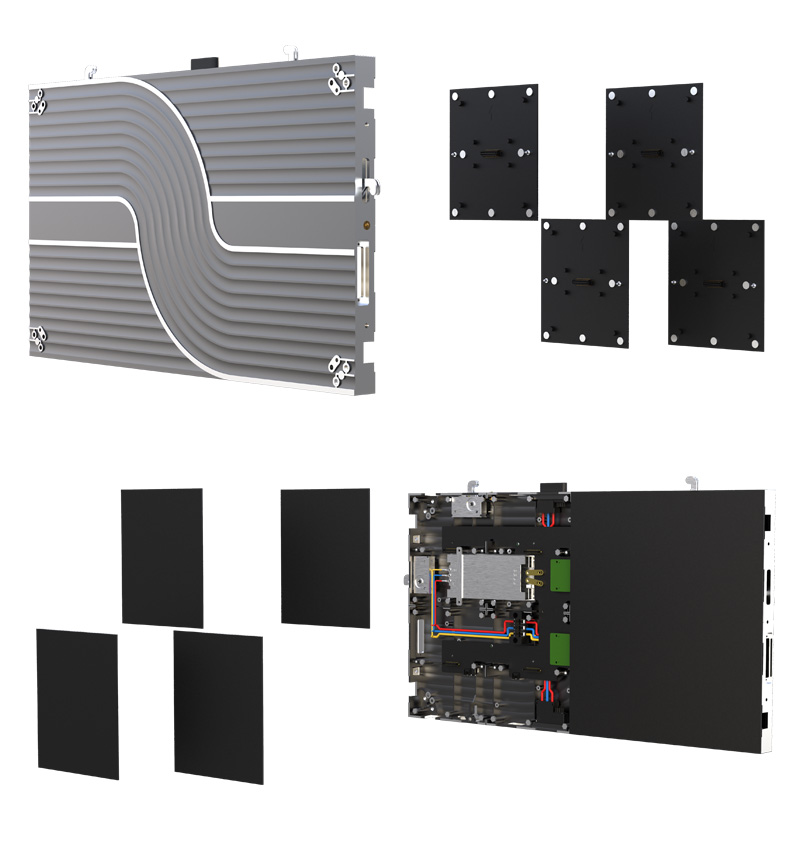

Easy Maintenance

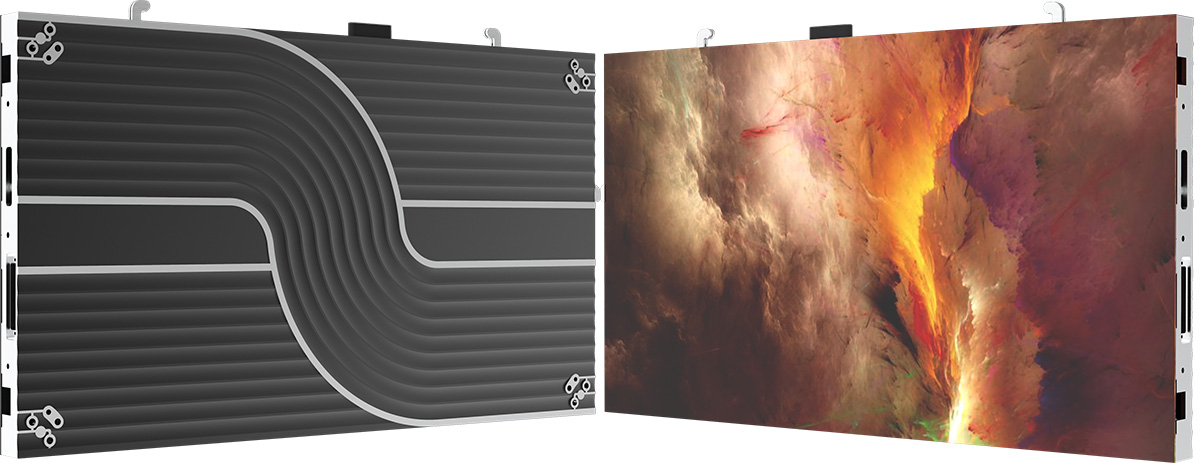

TDX600, high-resolution, fine pixel pitch LED screen used for detailed visual displays in settings
Key Features:High Resolution: Fine pixel pitch (small pixel spacing) for sharp, clear images, even up close.
Seamless Display: No visible gaps between panels, creating a smooth visual experience.
Brightness & Contrast: High brightness and contrast for vivid visuals, even in well-lit spaces.
Wide Viewing Angles: Clear visuals from almost any direction.
Durability: Long-lasting and energy-efficient.
These displays are ideal for environments requiring crisp, large-scale visuals.
| Pixel Pitch | 0.9353mm | 1.25mm | 1.56mm | 1.875mm | 2.5mm |
| Pixel configuration | Mini/COB | SMD1010 | SMD1212 | SMD1515 | SMD1515 |
| Pixel Density (dots/m2) | 1137779 | 640000 | 409600 | 286225 | 160000 |
| Module resolution | 120×135 | 120×135 | 96×108 | 160×90 | 60×135 |
| Module size （mm） | 150×168.75 | 150×168.75 | 150×168.75 | 300×168.75 | 150×337.5 |
| Module weight （kg） | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 |
| Module of cabinet | 4×2 | 4×2 | 4×2 | 2×2 | 4×1 |
| Cabinet resolution | 640×360 | 480×270 | 384×216 | 320×180 | 240×135 |
| Cabinet size (mm) | 600×337.5×30.5mm | ||||
| Cabinet area (m2) | 0.2025 | 0.2025 | 0.2025 | 0.2025 | 0.2025 |
| Cabinet weight (kg) | 7.8 | 7.8 | 7.8 | 7.8 | 7.8 |
| Maintenance mode | Front | ||||
| Cabinet raw material | Die-casting aluminum | ||||
| White Balance Brightness | ≥600 | ≥600 | ≥800 | ≥800 | ≥800 |
| Viewing Angle (H/V) | 170/170 | 170/170 | 170/170 | 170/170 | 170/170 |
| Peak power consumption | 800 | 800 | 800 | 800 | 800 |
| Average power consumption | 250 | 250 | 250 | 250 | 250 |
| Grayscale level | 65536 | 65536 | 65536 | 65536 | 65536 |
| Refresh rate (Hz) | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| The specifications are for reference, actual values may vary. | |||||
We use Seatronic/CNLinco Power plugs for the Rental LED Screens cabinets power connections.
We use Seatronic/CNLinco Newwork plugs for the Rental LED Screens cabinets data connections.
We cooperate with Novastar tech/Colorlight/Huidu/VDWALL/Linsn tech for the controllers and processor.

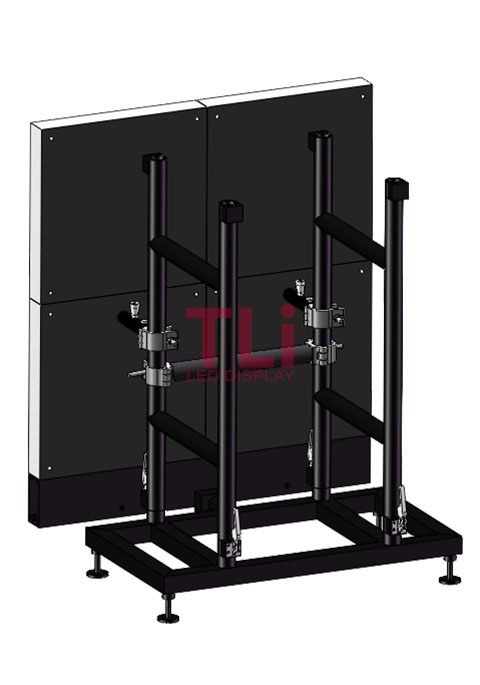

We also offer high quality aluminum truss for rental LED screen, steady build and easy to install and uninstall.
SHENZHEN TLI LED, specializing in the research, development, production and sales of LED displays, provides customers with diversified LED display solutions based on advanced technology and excellent quality, which are widely used in commercial advertisements, stadiums, conferences and exhibitions, etc. TLI LED, lighting up the world of vision, leading the future!
