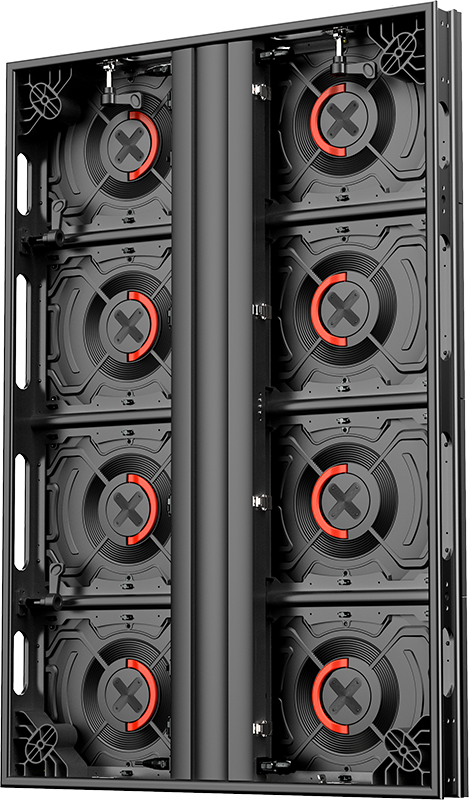

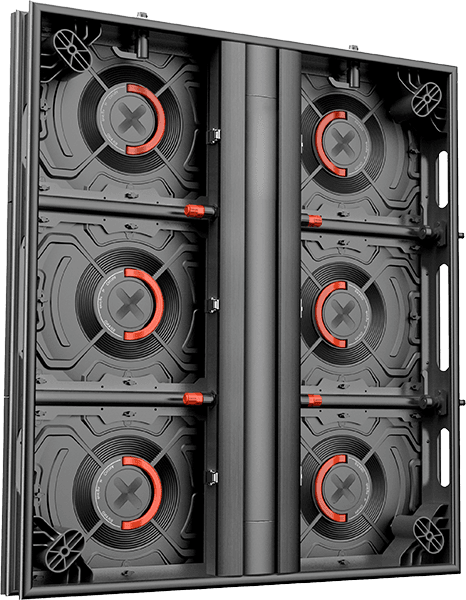

TOF800 Outdoor Frontal Service LED Screen designed with 800*900mm and 800*1200mm cabinet size, ultralight cabinet with only 22kg for 800*900mm cabinet, and 29kg for 800*1200mm cabinet, ultra thin cabinet, the thickness is only 98mm .
TOF800 designed for Outdoor Frontal Service LED screen projects, adopts top-class design standard and industry-leading idea to design, friendly for end-customers. With module handle and high quality locks makes the installation super easy and fast.

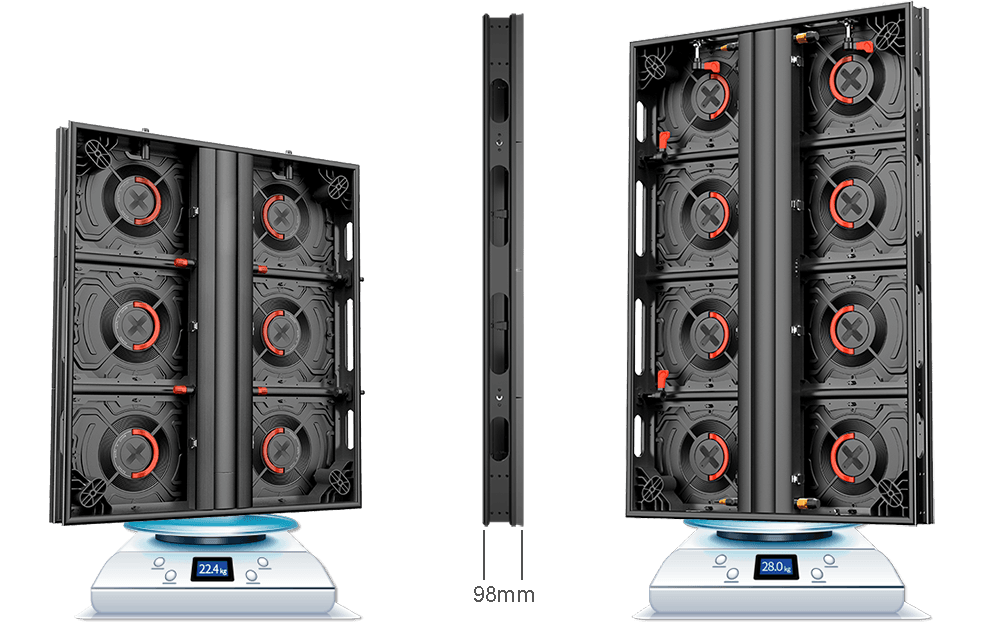

TOF800 Series cabinet weight only 22.4kg for 800x900mm cabinet, 28kg for 800x1200mm cabinet, much more easier to transportation and installation. With as thin as 98mm depth, you can mount the cabinet on limited space walls or any other places.

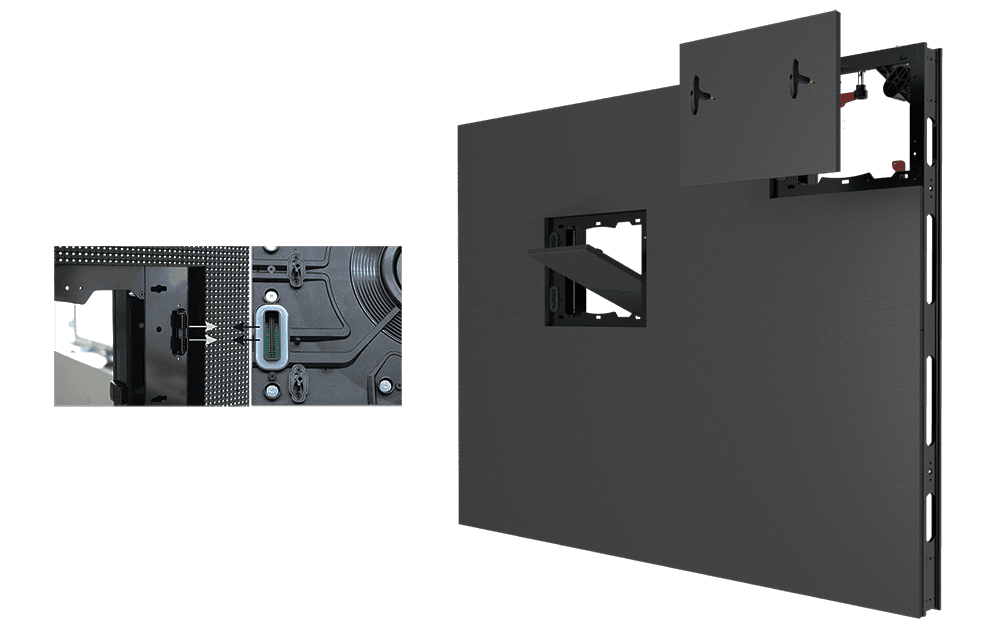

With special LED module design, TOF800 Outdoor Frontal Service LED series LED modules have waterproof robber, also this make possible to be front service, whenever you remove the modules from front or rear side, the job becomes so simple.

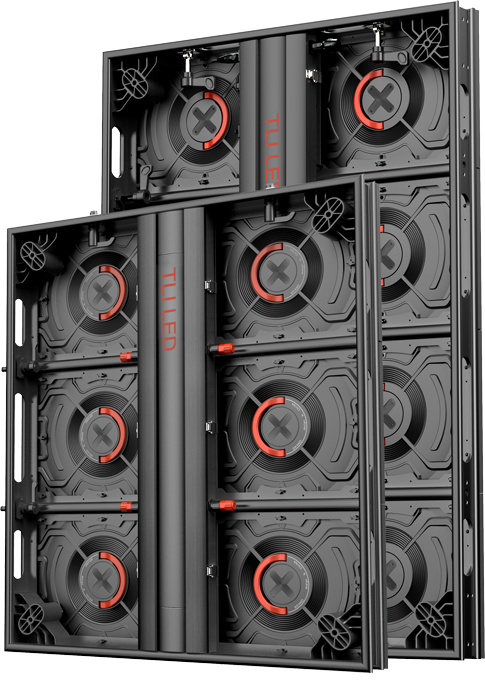

TLI LED TOF800 Series the Outdoor 800x900mm and 800x1200mm LED Display is designed with frontal access feature.

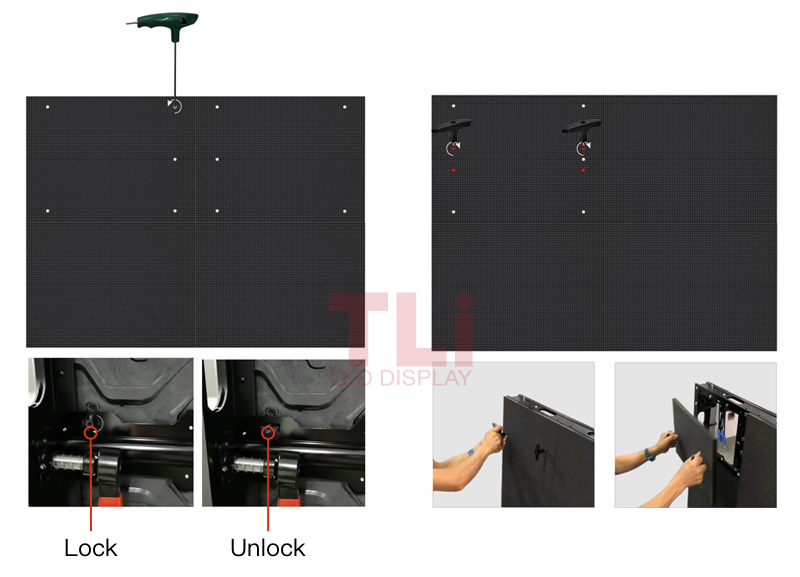

The LED panel can be assemble and disassemble in a few seconds with special tool.As the picture show it is very fast to remove the modules from front side or rear side, this really help the technician to do the maintenance more efficiently.

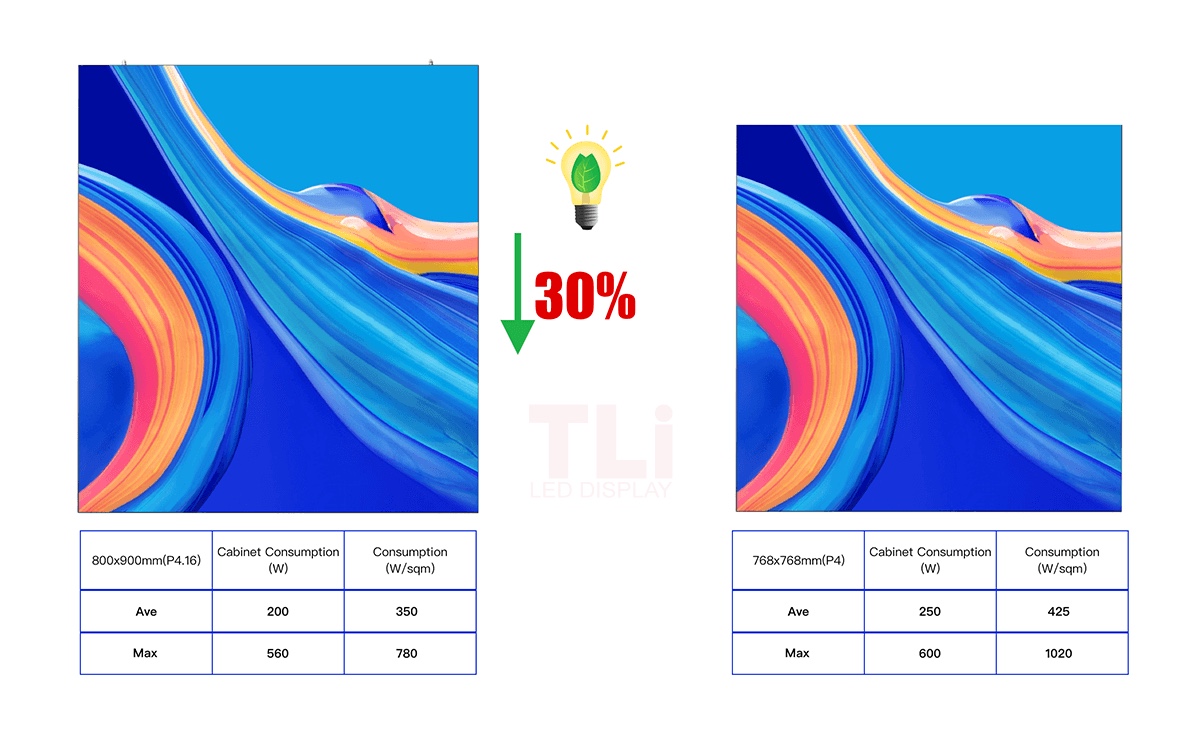

For outdoor LED display, TOF800 Outdoor Frontal Service LED series have new design technology and excellent display performance, compare to common led display , TOF800 energy saving reach up to 30%, for long time running, cost is much lower.
Have LED display projects? Send us message now, we will reply you in 24 hours with the best solution and price for your cases.
| Pixel Pitch | 4.16mm | 5mm | 6.25mm | 8.33mm | 10mm |
|---|---|---|---|---|---|
| LED | SMD 3in1 | SMD 3in1 | SMD 3in1 | SMD 3in1 | SMD 3in1 |
| Module size | 400*300mm | 400*300mm | 400*300mm | 400*300mm | 400*300mm |
| Module resolution | 96*72dots | 80*60dots | 64*48dots | 48*36dots | 40*30dots |
| LED Cabinet Size | 800*900*98(mm) | 800*900*98(mm) | 800*900*98(mm) | 800*900*98(mm) | 800*900*98(mm) |
| Cabinet Weight | 22kg/pc | 22kg/pc | 22kg/pc | 22kg/pc | 22kg/pc |
| Material | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
| Brightness | 5500-6500 cd | 5500-6500 cd | 5500-6500 cd | 5500-6500 cd | 5500-6500 cd |
| Avg power consumption | 300w | 300w | 300w | 300w | 300w |
| Max power consumption | 600w | 600w | 600w | 600w | 600w |
| Best Viewing Distance | 4m to 40m | 5m to 50m | 6m to 60m | 8m to 80m | 10m to 100m |
| Grey Level | 14 bits | 14 bits | 14 bits | 14 bits | 14 bits |
| Fresh frequency | ≥960HZ | ≥960HZ | ≥960HZ | ≥960HZ | ≥960HZ |
| Humidity-operating | 10% ~ 95% | 10% ~ 95% | 10% ~ 95% | 10% ~ 95% | 10% ~ 95% |
| Screen life | ≥100000 hours | ≥100000 hours | ≥100000 hours | ≥100000 hours | ≥100000 hours |
| Controlling mode | Synch or Async | Synch or Async | Synch or Async | Synch or Async | Synch or Async |
| Certificates | CE,RoHs,FCC,UL | CE,RoHs,FCC,UL | CE,RoHs,FCC,UL | CE,RoHs,FCC,UL | CE,RoHs,FCC,UL |
| Warranty | 3 Years | 3 Years | 3 Years | 3 Years | 3 Years |
| Protective grade | IP65 Waterproof | IP65 Waterproof | IP65 Waterproof | IP65 Waterproof | IP65 Waterproof |

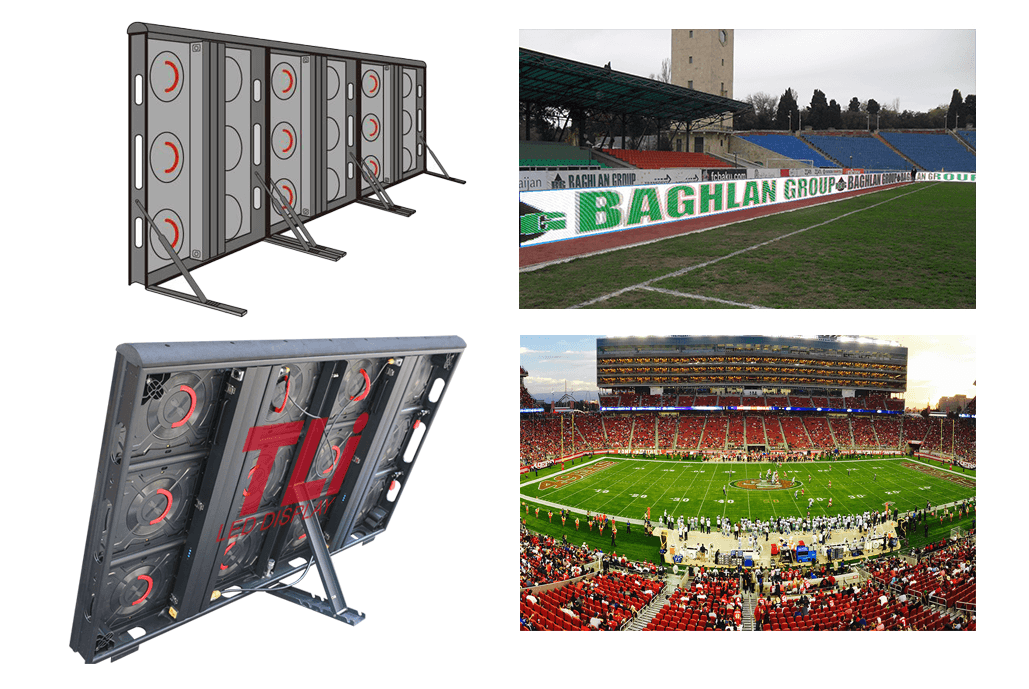

Design with soft LED panel masks and adjustable back brackets, TLI LED TOF800 Outdoor Frontal Service LED screen can be use as sports LED display and stadium perimeter LED display, with IP65 protection level, TOF800 can meet most of the outdoor LED Display screens applications requirements.

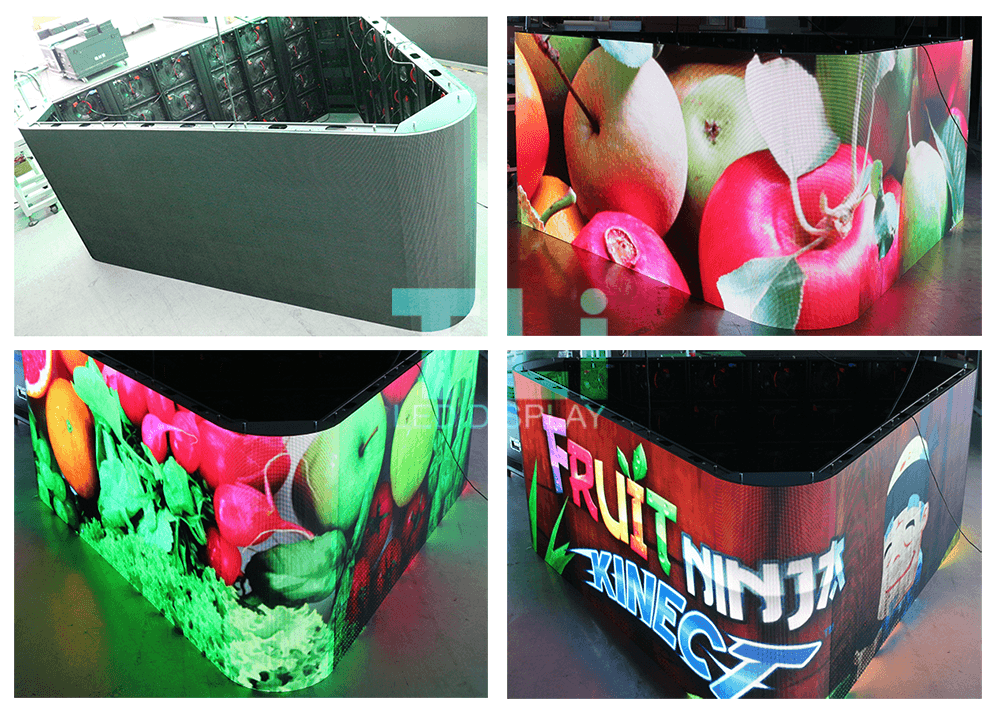

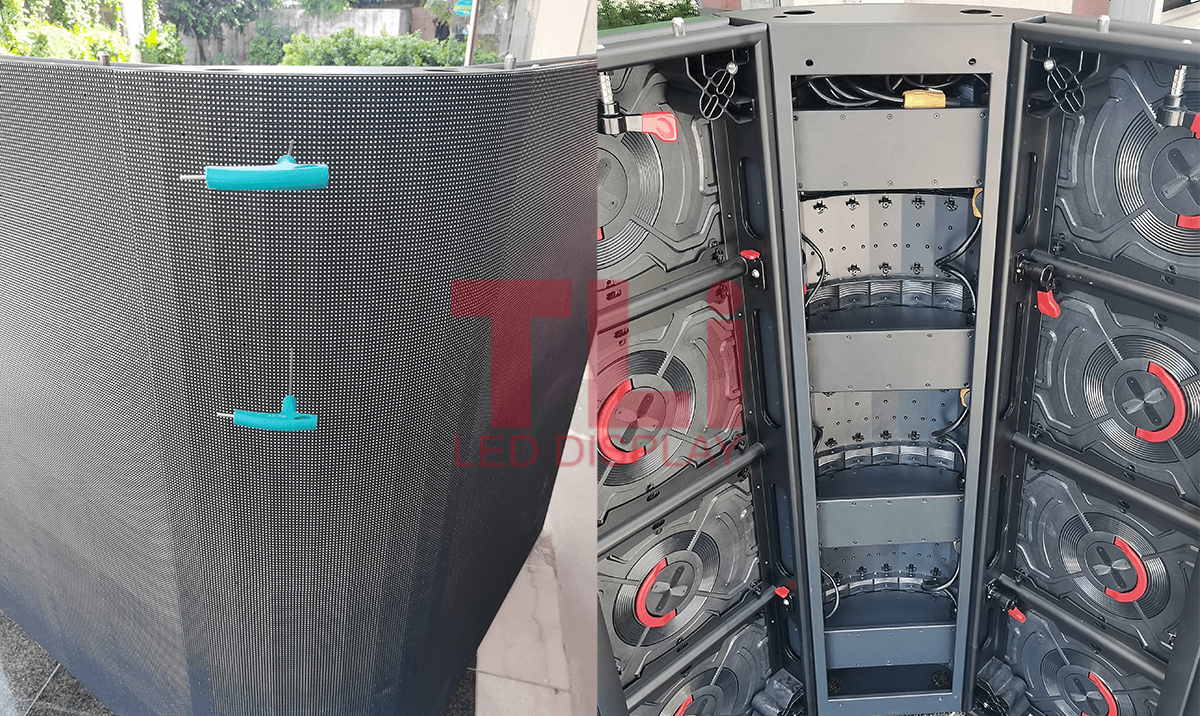

Special design for corner LED display applications, TLI LED TOF800 makes more possibilities for Outdoor LED projects, contact us , find out more!
Special design for corner LED display applications, TLI LED TOF800 makes more possibilities for Outdoor LED projects, contact us , find out more!
96×72 dots/module
400x300mm module
Outdoor Front Service
80×60 dots/module
400x300mm module
Outdoor Front Service
64×48 dots/module
400x300mm module
Outdoor Front Service
48×36 dots/module
400x300mm module
Outdoor Front Service
40×30 dots/module
400x300mm module
Outdoor Front Service
We offer full technical support for our customers, also for more information or get quotes from us, click here to contact us.
