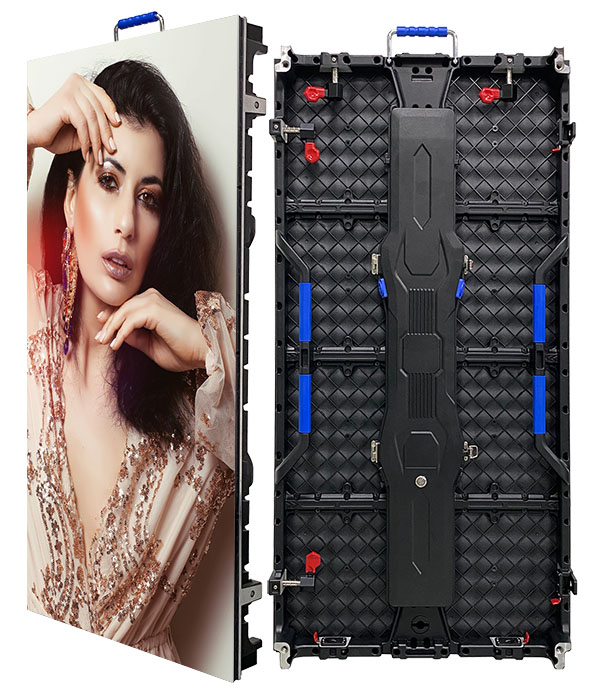

TLI LED TRE1000 Series Standard cabinet Size 500*1000mm LED display.Fit with standard module size 250x250mm, can be used for indoor or outdoor Rental use LED display. Could work mix with TRE500 500*500mm cabinets.

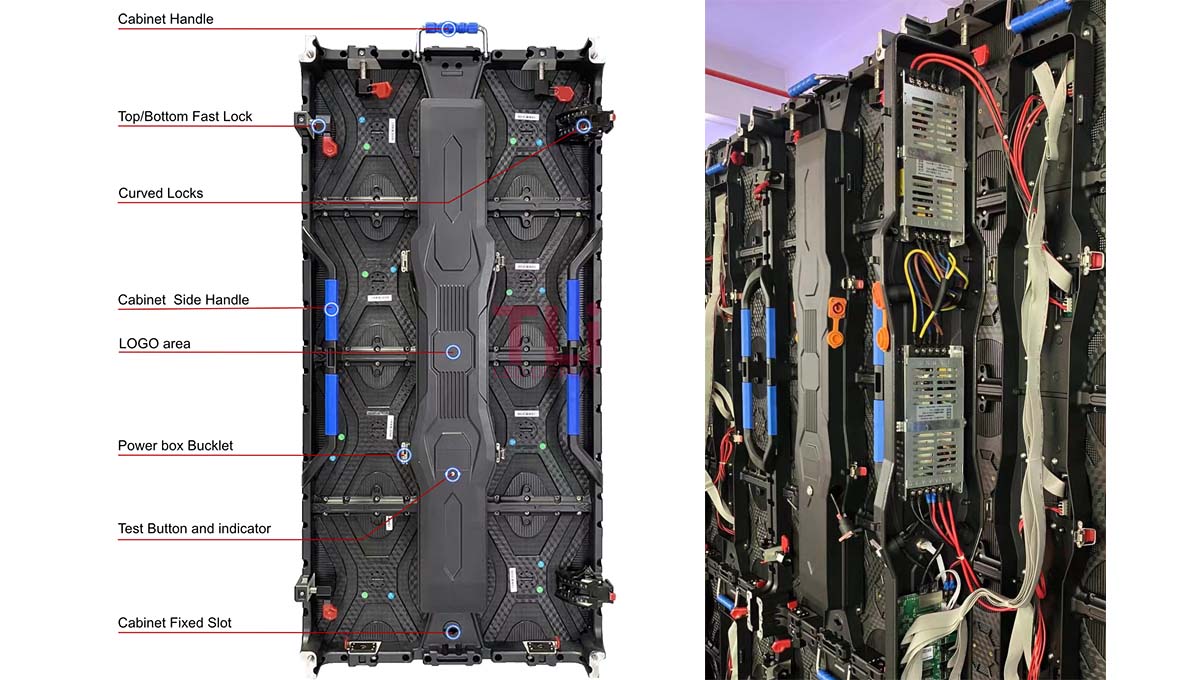

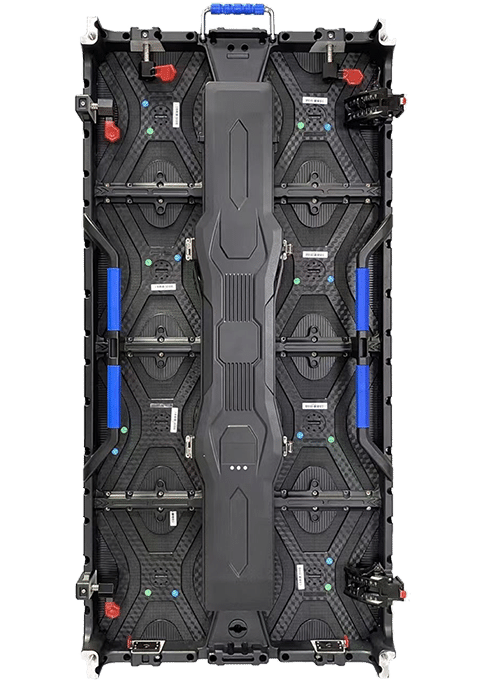

TLI LED TRE1000 Series 500*1000mm standard cabinet size
Ultra-Light die-casting aluminum. ultra-thin thickness with 80mm.
Super easy to transport and Portable, save much labor cost.

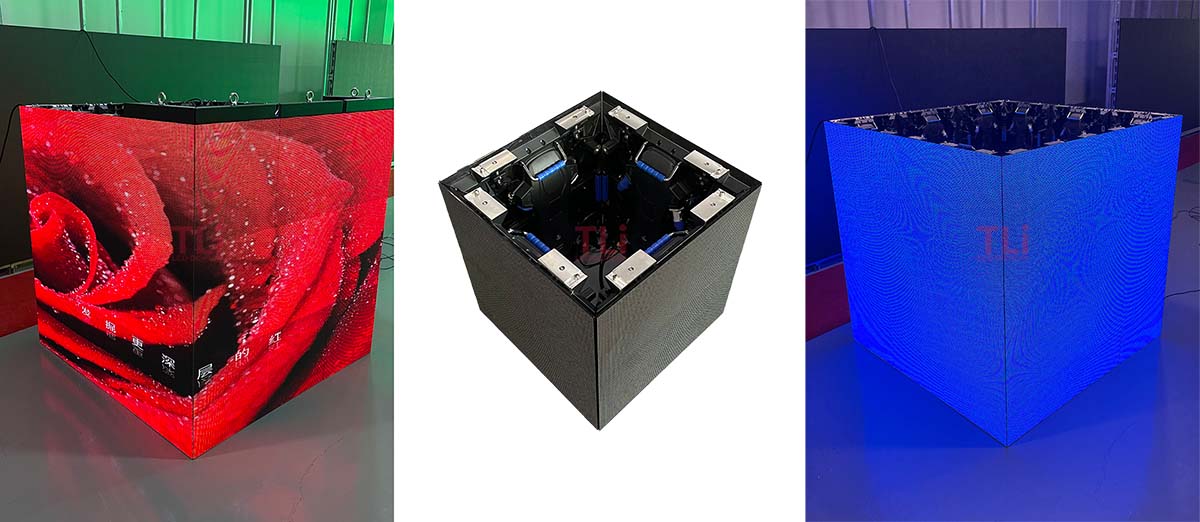

TLI TRE500 Rental LED Series have options for right angle applications, narrow gap between the cabinets make it is a good option for some special cases like the columns.
TLI LED work with great materials suppliers in China such as Nationstar, Kinglight LED, MBI ,ICN IC, Novastar tech, Colorlight tech controllers etc.
Have LED display projects? Send us message now, we will reply you in 24 hours with the best solution and price for your cases.
| Pixel pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Pixels per cabinet | 192×192 (HxV) | 168×168 (HxV) | 128×128 (HxV) | 104×104 (HxV) |
| LED lifetime | 100,000h (video – 50% brightness) | |||
| Brightness | 600-1000 nits; | |||
| Module size | 250*250mm | |||
| Module resolution | 96*96dots | 84*84dots | 64*64dots | 52*52dots |
| Refresh rate | 960-3840Hz | |||
| Hor. viewing angle | 140° +/-5° (@50% brightness) | |||
| Vert. viewing angle | 140° +/-5° (@50% brightness) | |||
| Brightness uniformity | >98% | |||
| Dimming | 0-100% | |||
| Grey Level | 14 bits | |||
| Avg Power consumption | 350 W/m² | 320 W/m² | 300 W/m² | 280 W/m² |
| Max Power consumption | 680 W/m² | 640 W/m² | 620 W/m² | 600 W/m² |
| Operation power voltage | 100-240V / 50-60Hz | |||
| Operational temperature | -10°C to +40°C / 14°F to 104°F | |||
| Operational humidity | 10-80% | |||
| IP rating | IP54 for Indoor, IP65 for Outdoor | |||
| Dimensions | 500 x 1000 x 80 mm (WxHxD)/ 19.6 x 19.6 x 3.5 inch (WxHxD) | |||
| Weight / Tile | 7.5 kg / 16.53 lbs | |||
| Serviceability | Front and back service | |||
| Certifications | CE, UL, FCC class A, RoHS, WEE, REACH | |||
| Warranty | 3 years standard product warranty | |||
96×96 dots/module
192×384 dots/cabinet
Indoor/Outdoor Rental
84×84 dots/module
168×336 dots/cabinet
Indoor/Outdoor Rental
64×64 dots/module
128×256 dots/cabinet
Indoor/Outdoor Rental
52×52 dots/module
108×216 dots/cabinet
Indoor/Outdoor Rental
We offer full technical support for our customers, also for more information or get quotes from us, click here to contact us.
