TRG500 Rental LED

TLI TRG500 Rental LED

500X500mm
Die-casting Aluminum
Rental LED Display

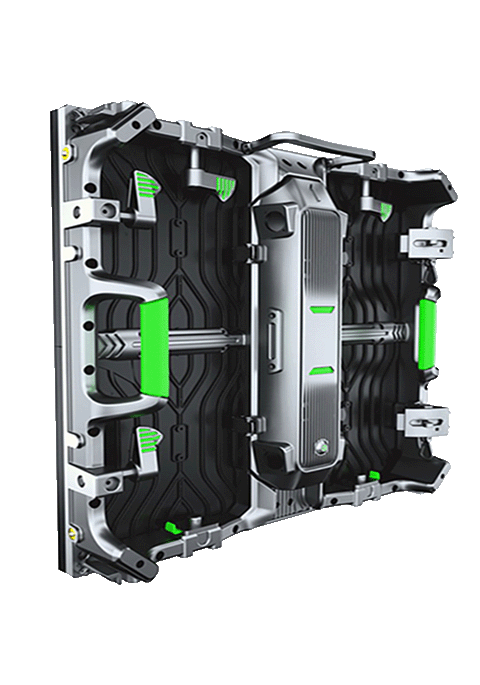

Die-cast aluminum cabinet design, Indoor & Outdoor LED Display
Standard size cabinet: 500*500mm dimension
Optional Curved lock design for round setting
High flatness, easy to install and disassemble
Module size: 250*250mm standard
3 years warranty, 5% spare parts

Outdoor/Indoor
Rental
LED Display

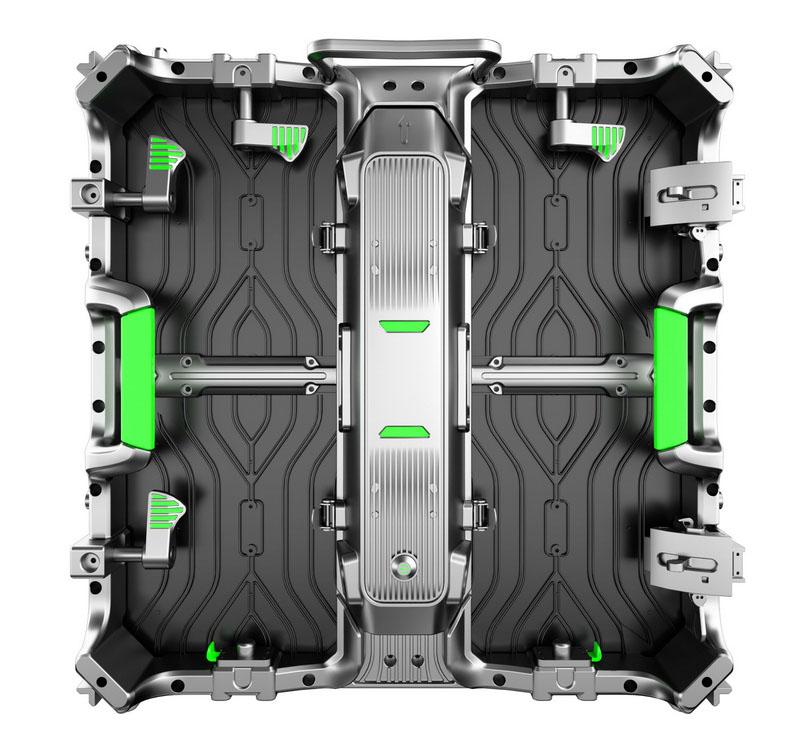

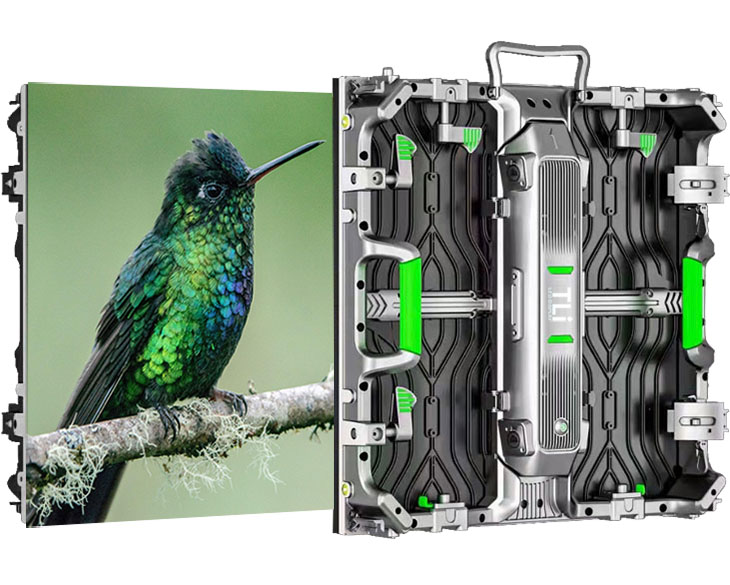

TLI LED TRG500 Series Rental LED Display screen, designed with Standard cabinet Size 500*500mm LED display .Fit with standard module size 250x250mm, can be used for indoor or outdoor Rental use LED display. 7.5kg per cabinet makes easier to install, cost saving.

Ultra lighweight

Slim design

TLI LED TRG500 Rental LED Series can work with TRG1000 series.
Ultra-Light die-casting aluminum. ultra-thin thickness with 80mm.
Super easy to transport and Portable, save much labor cost.

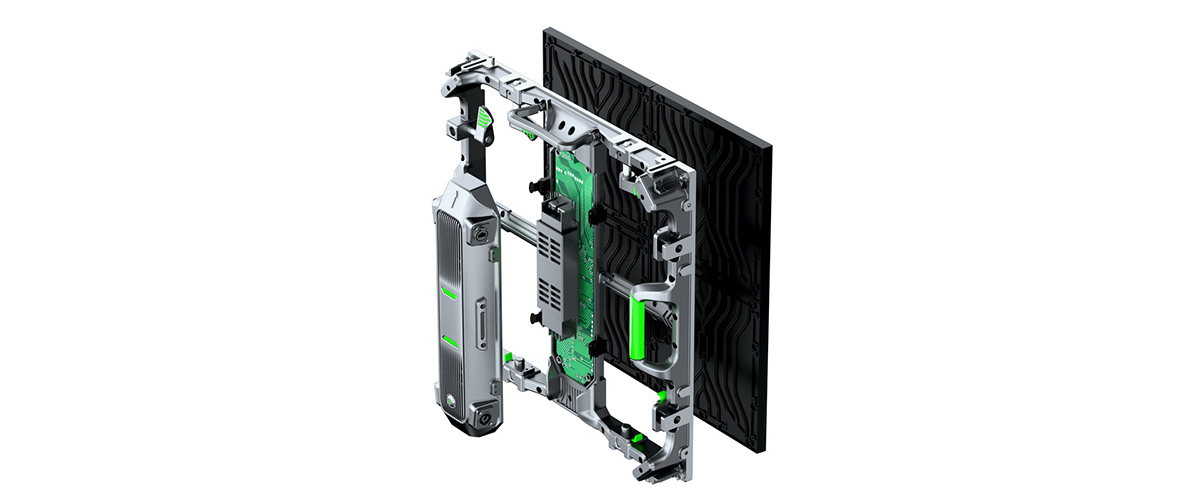

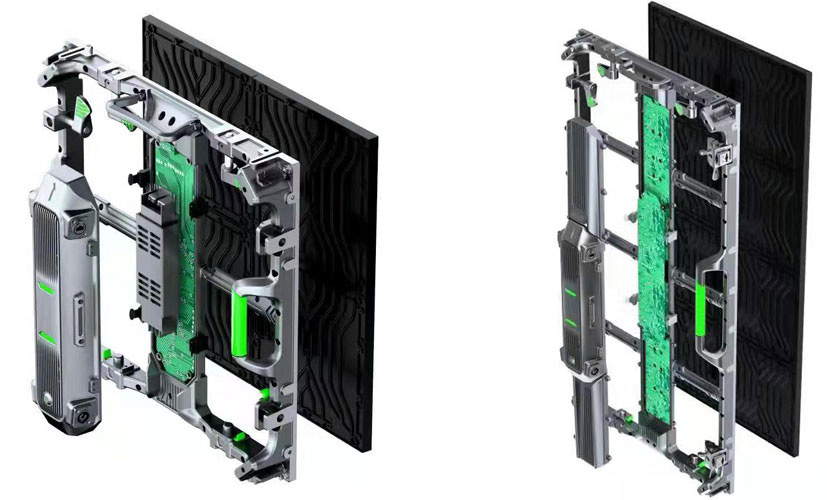

TRG500 Series adopts Optimized Control Box with Quick removable without any tools optional. the back box (All parts include power supply and receiving card inside) is removable quickly for replacement and maintenance。

TLI LED work with great materials suppliers in China such as Nationstar, Kinglight LED, MBI ,ICN IC, Novastar tech, Colorlight tech, Huidu tech controllers etc.

TLI LED work with the domestic top design team,the design innovation has its own unique philosophy,with a number of core technologies. Innovative structural design, avant-garde body lines, give you extraordinary experience.

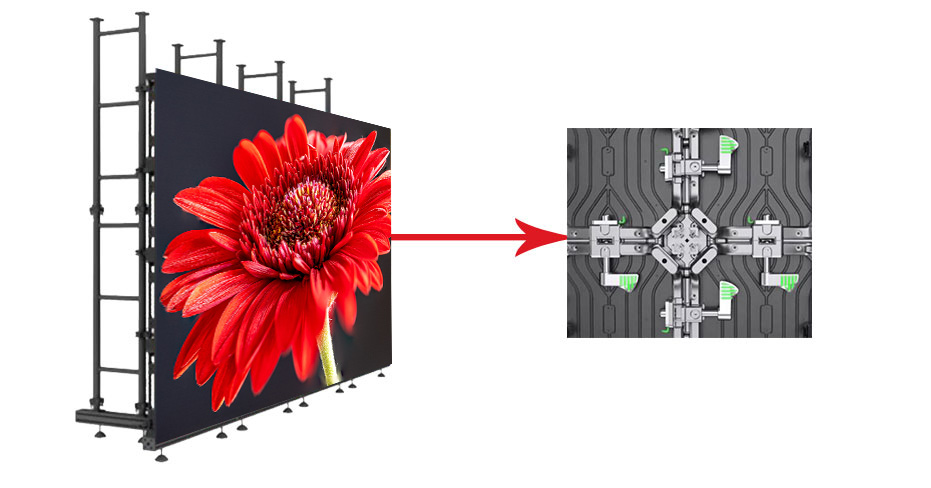

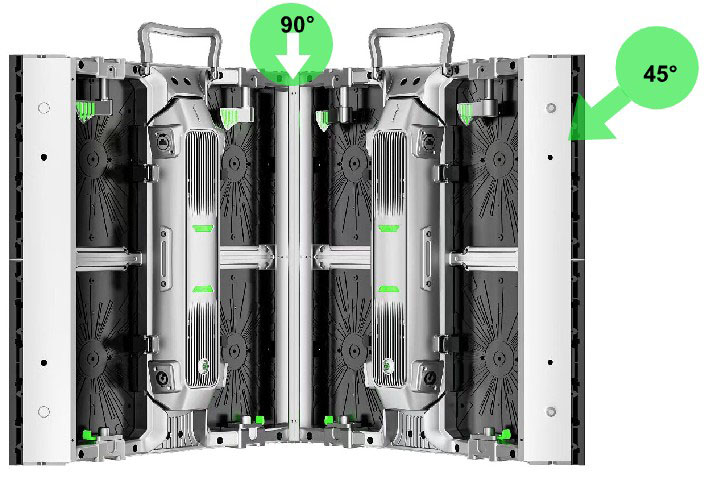

TLI LED TRG500 Rental LED series supports 90° right angle LED display installation to meet some special buildings and applications.

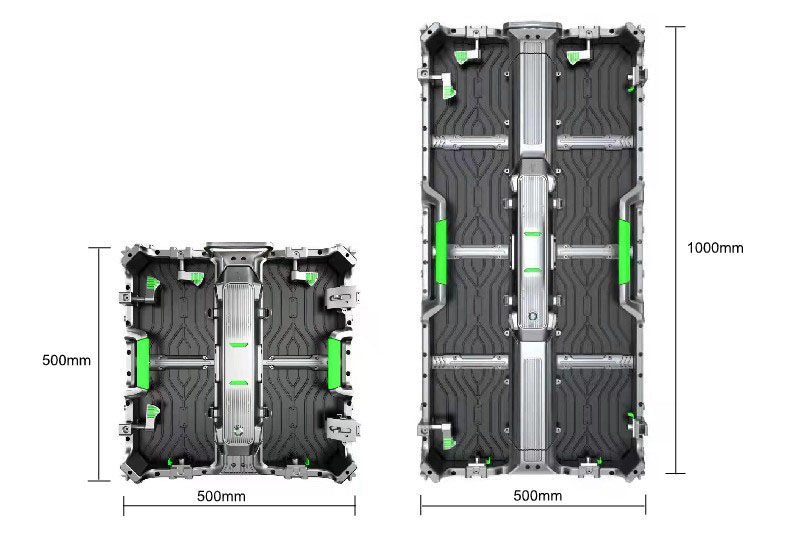

TLI LED TRG500 work with TRG1000 series, the back box can be used mix between the 2 sizes of cabinets.

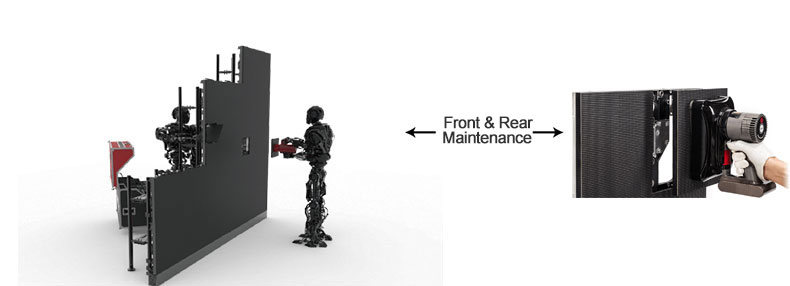

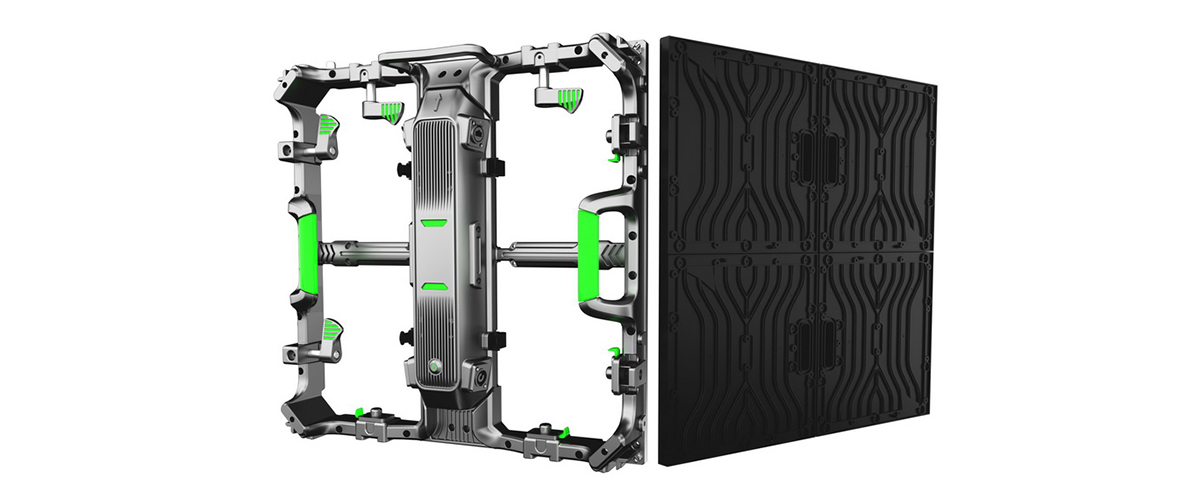

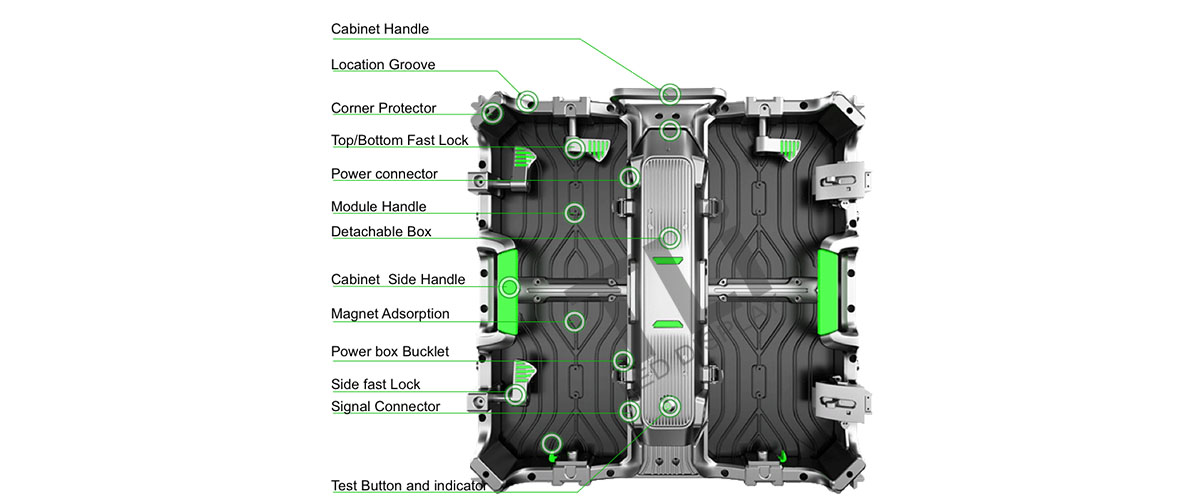

TLI LED TRG500 Series Rental LED Display is dual maintenance product, not only 100% front accessible but also can do rear service, only a little space needed.The LED panels are magnetic and can be removed by tools from front side in 5 seconds. easy and convenient, labor cost is much less.

High precision aluminum cabinet frame makes the seamless splicing image and video display, TLI LED TRG500 and TRG1000 series offer you perfect visual experience from any angles.

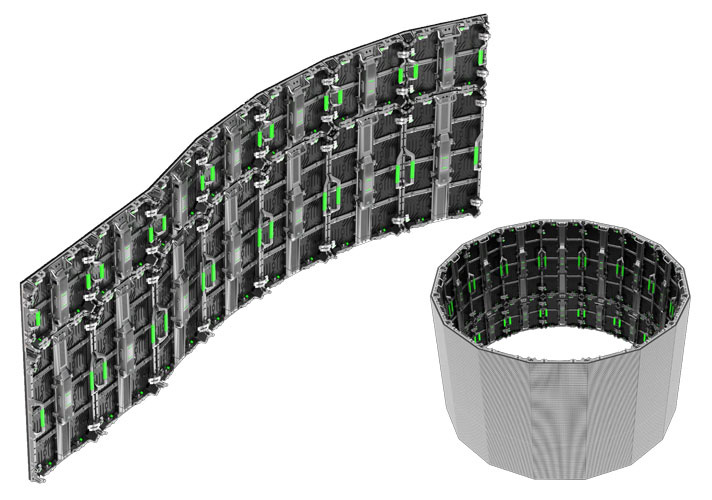

To meet the various aspects of the rental LED display screen market, TLI LED TRG500 and TRG1000 series led display design for Curved Installation too. Curved with every 2.5° between -10°and 10°, which can make convex and concave shapes, eye catching and better performance visual experience.

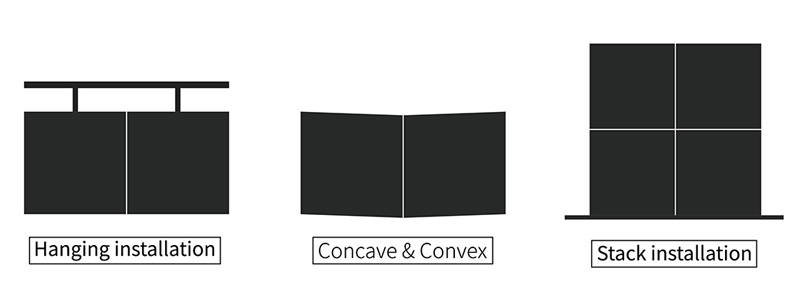

TLI LED TRG500 and TRG1000 series Support 3 installation methods of cabinet with hanging installation, concave& convex installation, stack installation.

Specification:

TLI LED TRG500 Rental LED Display

Get Solution Now

Have LED display projects? Send us message now, we will reply you in 24 hours with the best solution and price for your cases.

Have questions or Need support?

We offer full technical support for our customers, also for more information or get quotes from us, click here to contact us.

Pixel pitch	2.604mm	2.976mm	3.91mm	4.81mm
Pixels per cabinet	192×192 (HxV)	168×168 (HxV)	128×128 (HxV)	104×104 (HxV)
LED lifetime	100,000h (video – 50% brightness)
Brightness	600-1000 nits;
Module size	250*250mm
Module resolution	96*96dots	84*84dots	64*64dots	52*52dots
Refresh rate	960-3840Hz
Hor. viewing angle	140° +/-5° (@50% brightness)
Vert. viewing angle	140° +/-5° (@50% brightness)
Brightness uniformity	>98%
Dimming	0-100%
Grey Level	14 bits
Avg Power consumption	350 W/m²	320 W/m²	300 W/m²	280 W/m²
Max Power consumption	680 W/m²	640 W/m²	620 W/m²	600 W/m²
Operation power voltage	100-240V / 50-60Hz
Operational temperature	-10°C to +40°C / 14°F to 104°F
Operational humidity	10-80%
IP rating	IP54 for Indoor, IP65 for Outdoor
Dimensions	500 x 500 x 80 mm (WxHxD)/ 19.6 x 19.6 x 3.5 inch (WxHxD)
Weight / Tile	7.5 kg / 16.53 lbs
Serviceability	Front and back service
Certifications	CE, UL, FCC class A, RoHS, WEE, REACH
Warranty	3 years standard product warranty
