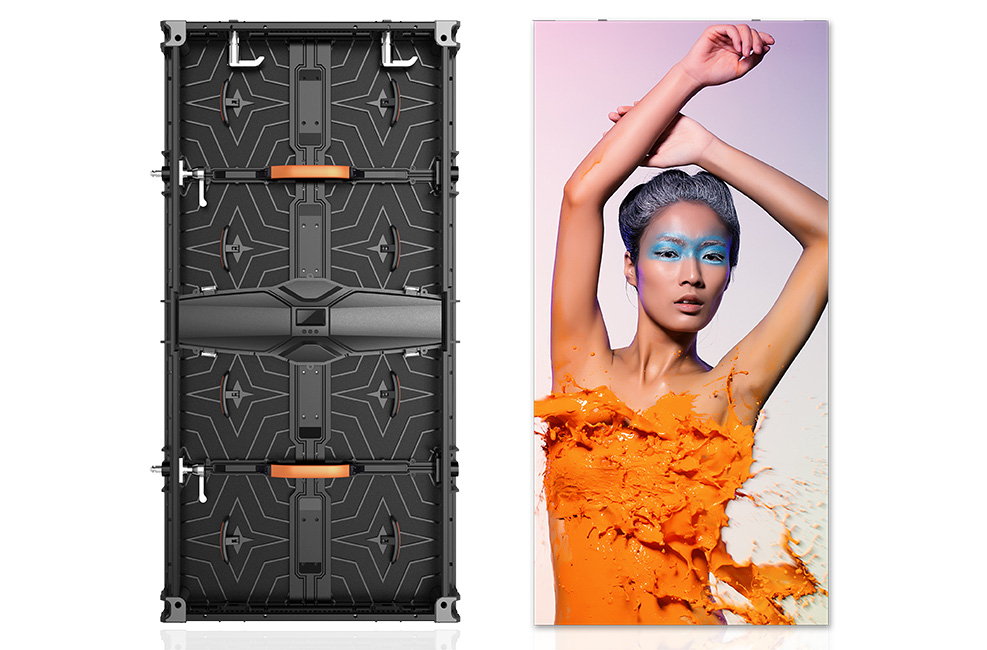

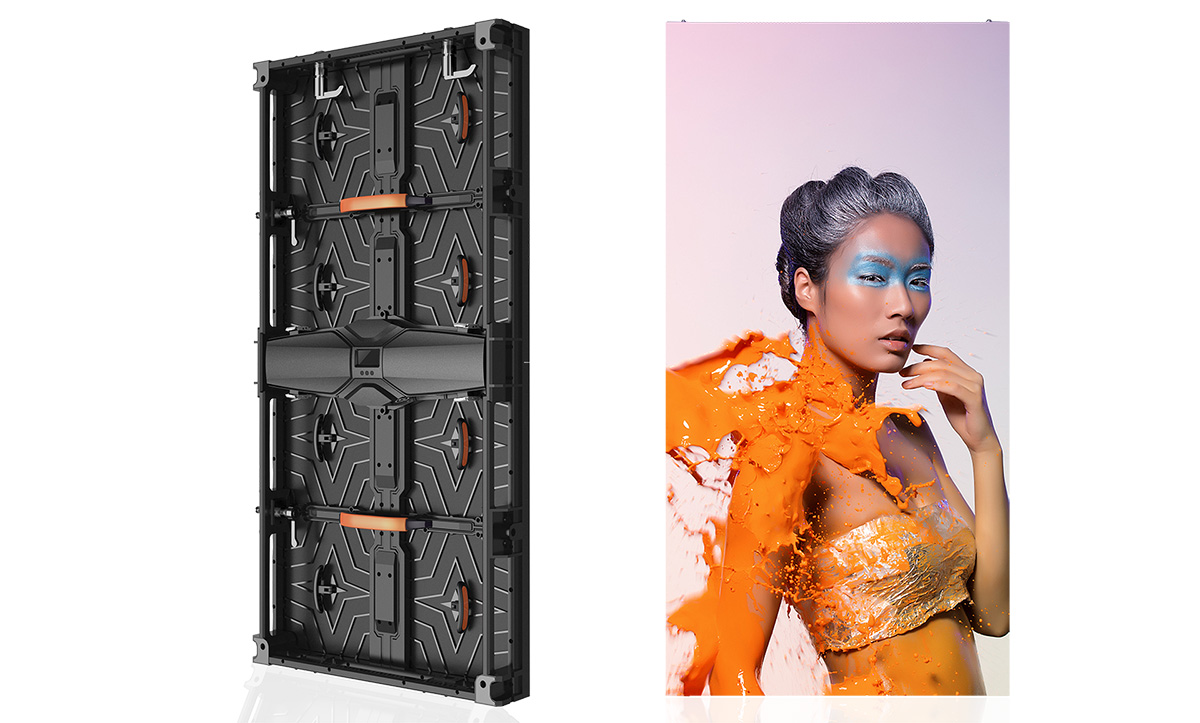

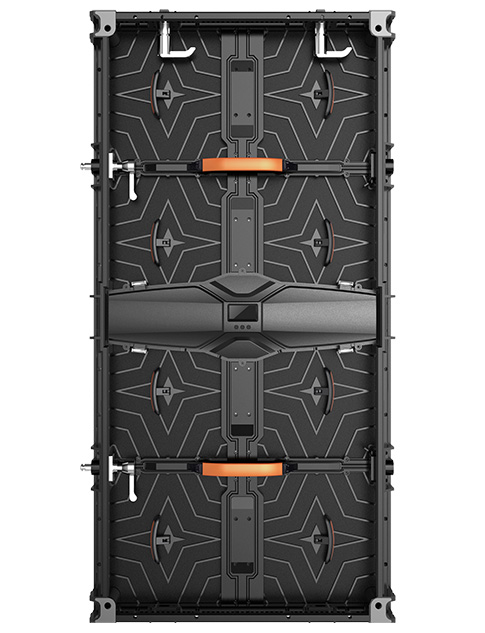

TLI LED TRI1000 Series Rental LED Display, new design incorporates many aesthetic elements, adopts High strength die-casting aluminum, only 12.5kg per cabinet.Better performance with high definition visual display.
Design with Portable and good stability with weight of only 12.5kg/cabinet and thickness of 80mm, the feature of lightweight make the TLI LED TRI1000 LED display is easy to carry, transport and install, saving labor costs.Design by the domestic top design team, the design innovation has its own unique philosophy,with a number of core technologies. Innovative structural design,avant-garde body lines,give you extraordinary experience

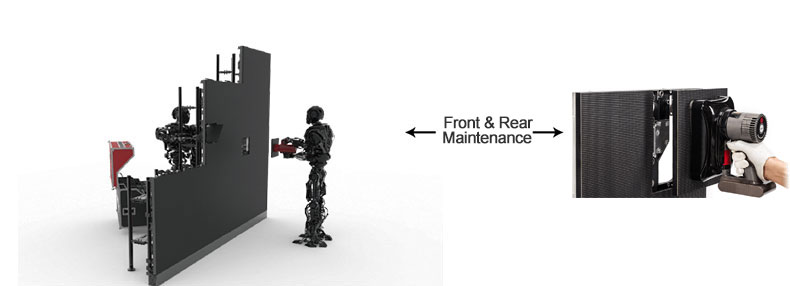

TLI TRI1000 Series Rental LED Display is a dual maintenance product, not only 100% front access, but also can do rear service.The LED panels have magnets so the panels can be removed by tools from front side in 5 seconds. easy and convenient, save much time.Suitable for various installation environments.

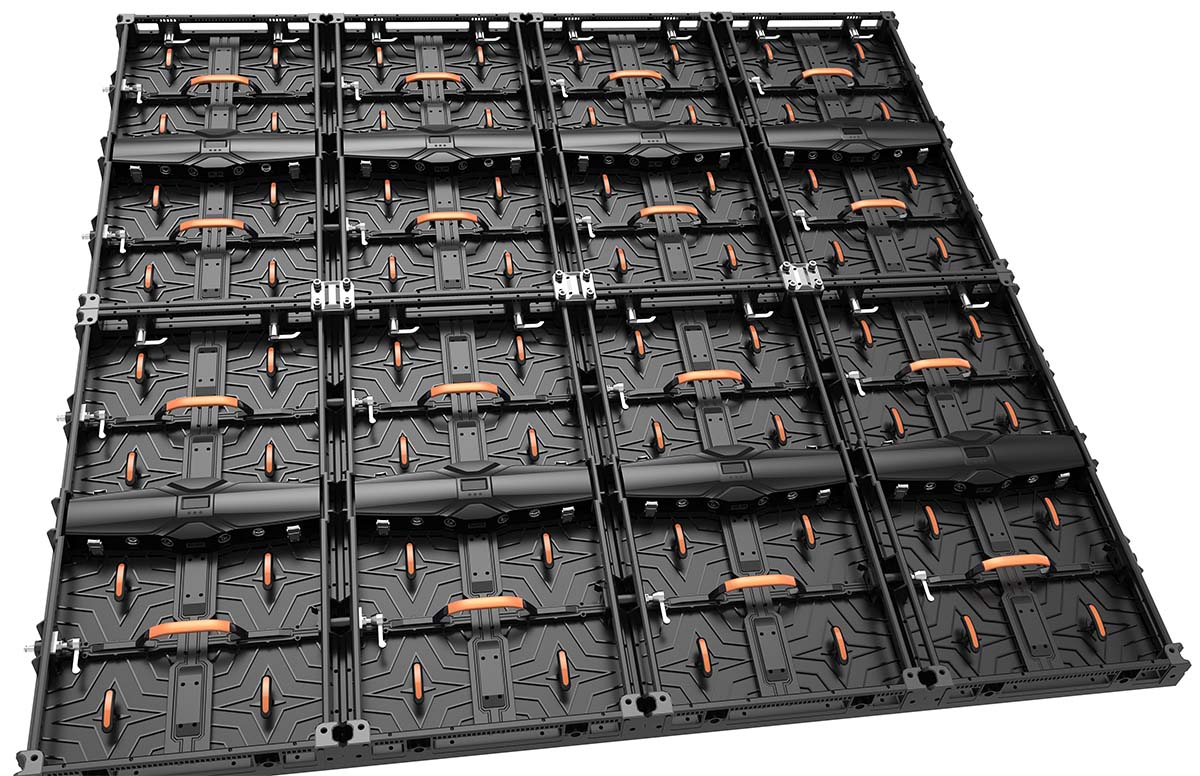

Auto-locking system for fast and easy one man installation with ultimate safety and pixel protection.
With best solution for rental use, we choose the best IC driver and PCB design, only for best visual experience of the audience.

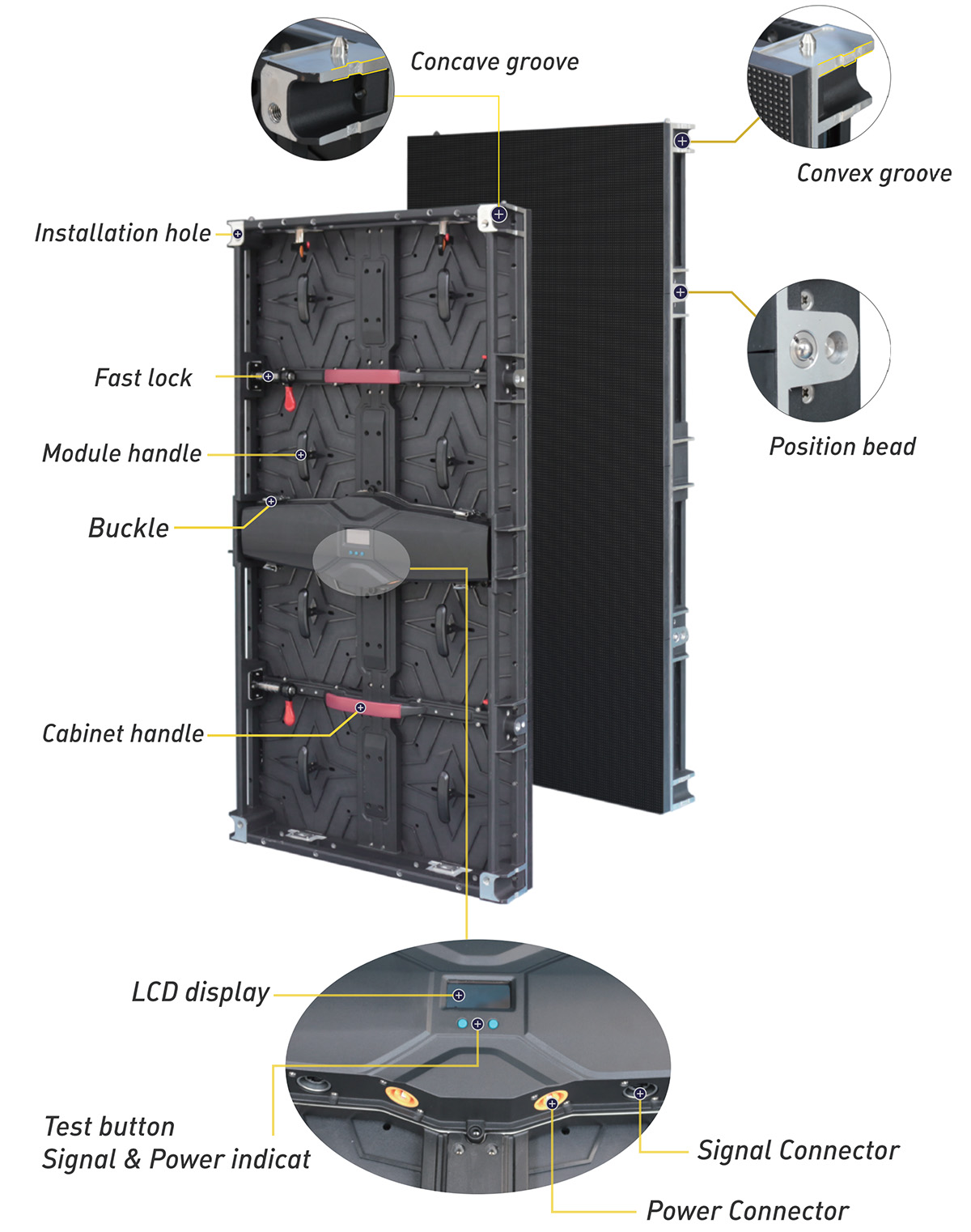

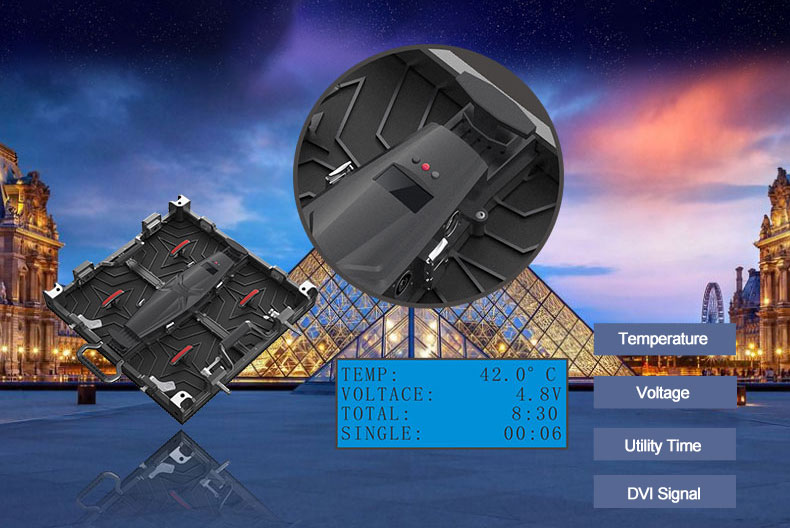

TRI1000 Rental LED Series have the LCD display on the integrated power box of the cabinet, the same with TRI500 Series, show the operating and signal situation such as working temperature, working voltage, the screen lifespan and the DVI signal.

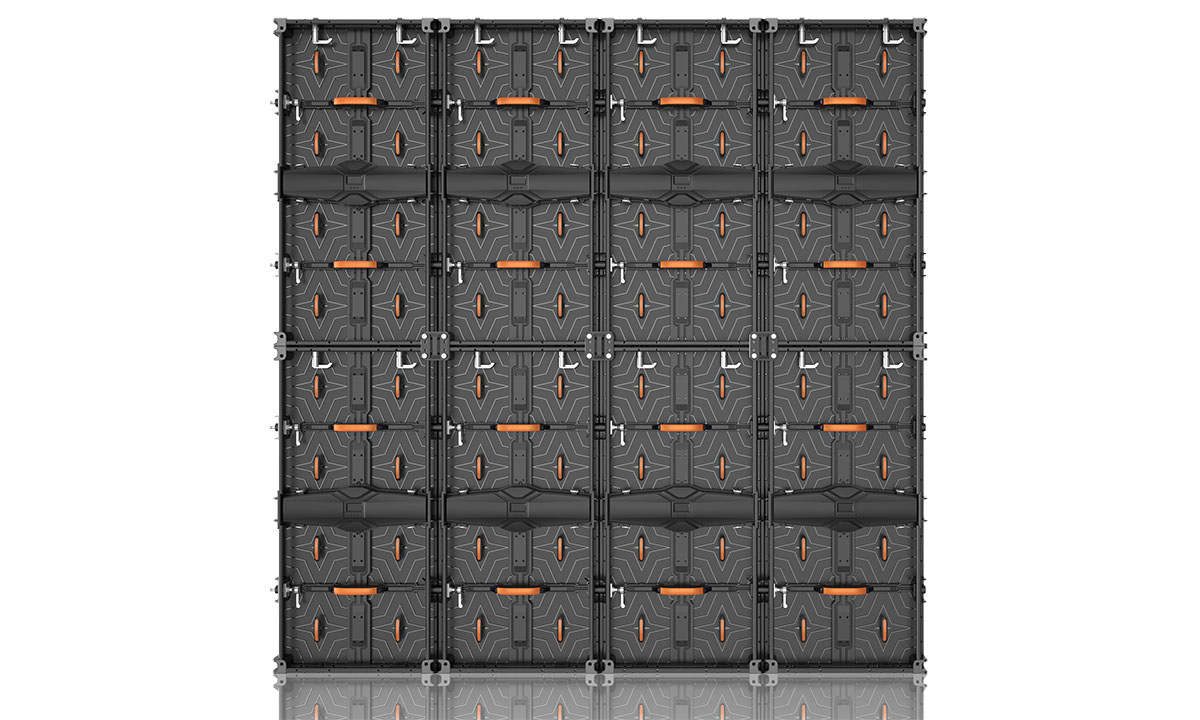

High precision aluminum cabinet frame makes the TRI1000 Series have seamless splicing image and video display, offering the perfect visual experience.The picture quality confronts viewers with an entirely new sensory experience.Wireless Connection inside the cabinets, no cables, plug and play, support hot-swapping. Humanization handle for corner side, anti-skid handle, compared with traditional cabinet, it is more convenient.Two-way maintenance from the front and rear of the screen can come up with the unit board and power supply, it is much easier for maintenance.

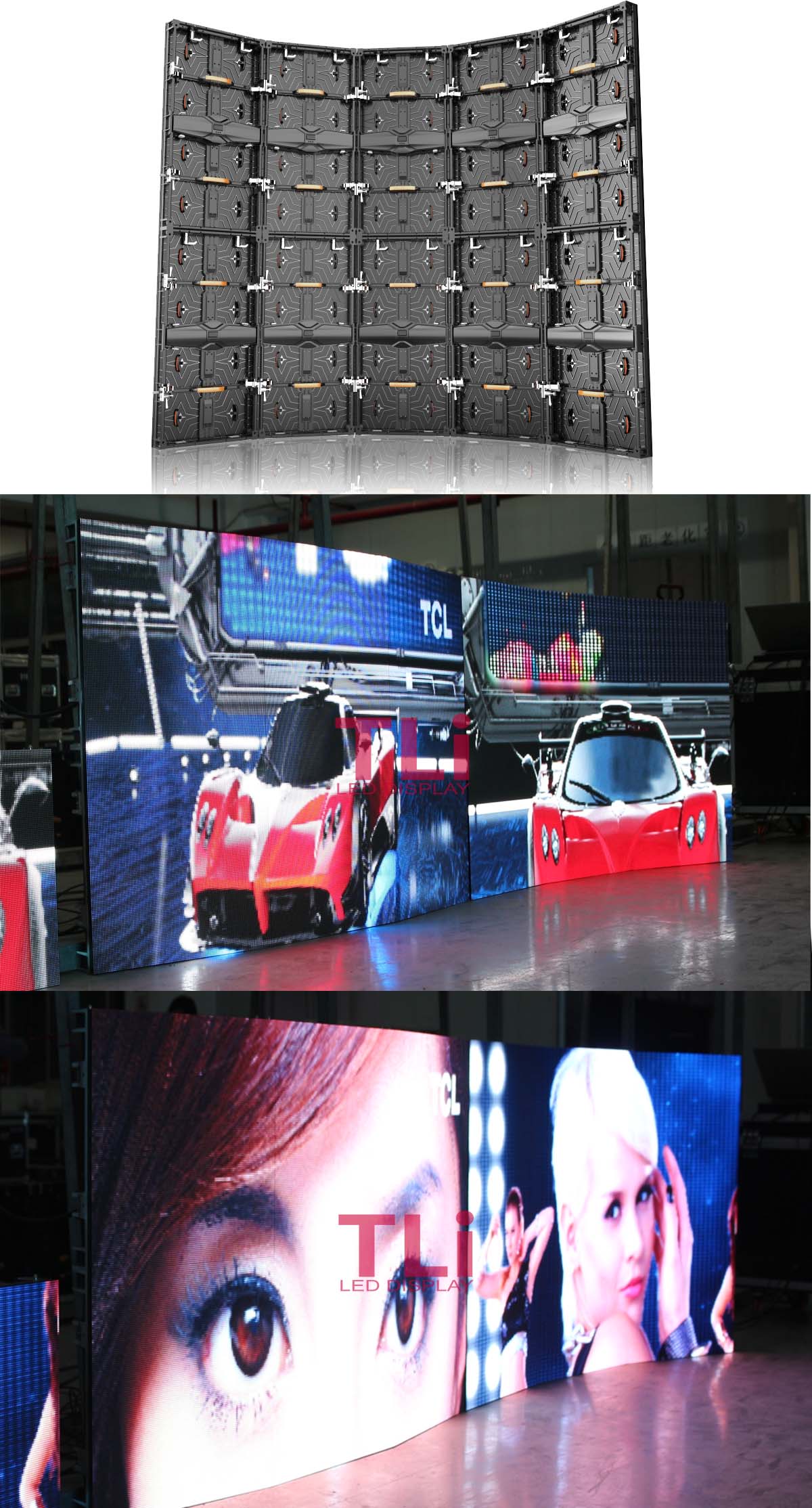

TRI500 Series have curved lock design for different application requirements.

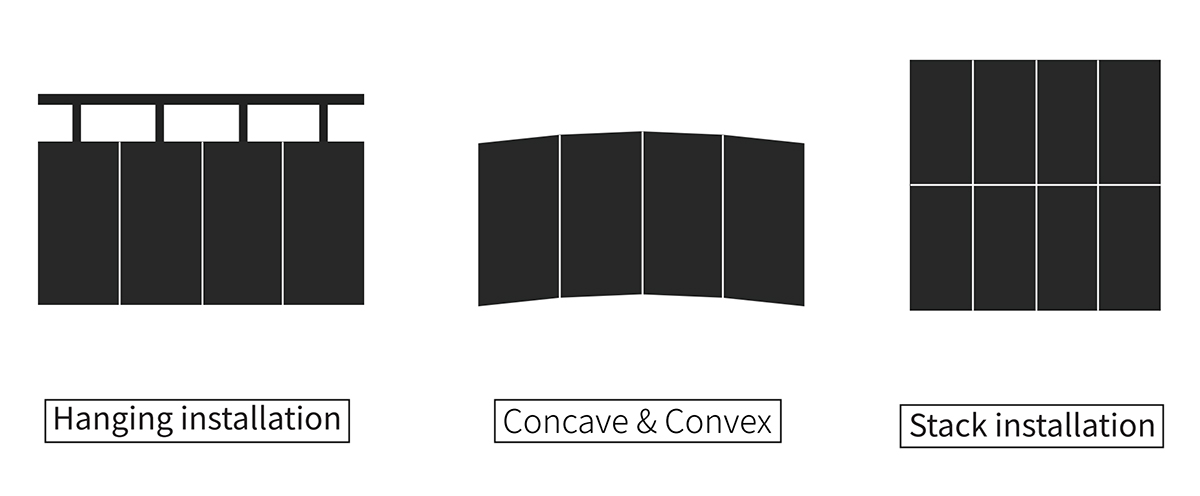

TRI1000 Series Support 3 installation ways of cabinet with hanging installation, concave& convex installation, stack installation.
Have LED display projects? Send us message now, we will reply you in 24 hours with the best solution and price for your cases.
| Pixel pitch | 2.604mm | 2.976mm | 3.91mm | 1.81mm |
|---|---|---|---|---|
| Pixels per cabinet | 192×384 (HxV) | 168×336 (HxV) | 128×256 (HxV) | 104×208 (HxV) |
| LED lifetime | 100,000h (video – 50% brightness) | |||
| Brightness | ≥1000 nits; | |||
| Module size | 250*250mm | |||
| Module resolution | 96*96dots | 84*84dots | 64*64dots | 52*52dots |

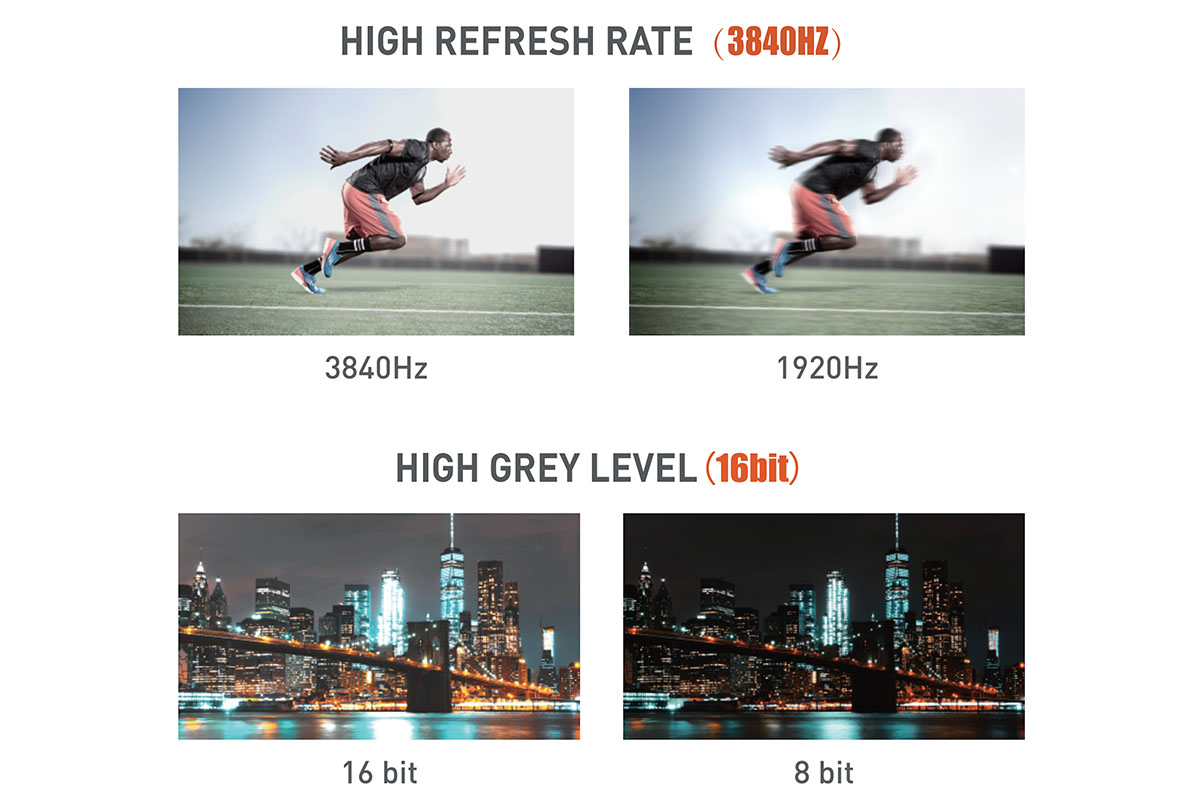

| Refresh rate | 960-3,840Hz | |||
| Hor. viewing angle | 140° +/-5° (@50% brightness) | |||
| Vert. viewing angle | 140° +/-5° (@50% brightness) | |||
| Brightness uniformity | >98% | |||
| Dimming | 0-100% | |||
| Grey Level | 14 bits | |||
| Avg Power consumption | 350 W/m² | 320 W/m² | 300 W/m² | 280 W/m² |
| Max Power consumption | 680 W/m² | 640 W/m² | 620 W/m² | 600 W/m² |
| Operation power voltage | 100-240V / 50-60Hz | |||
| Operational temperature | -10°C to +40°C / 14°F to 104°F | |||
| Operational humidity | 10-80% | |||
| IP rating | IP54 for Indoor, IP65 for Outdoor | |||

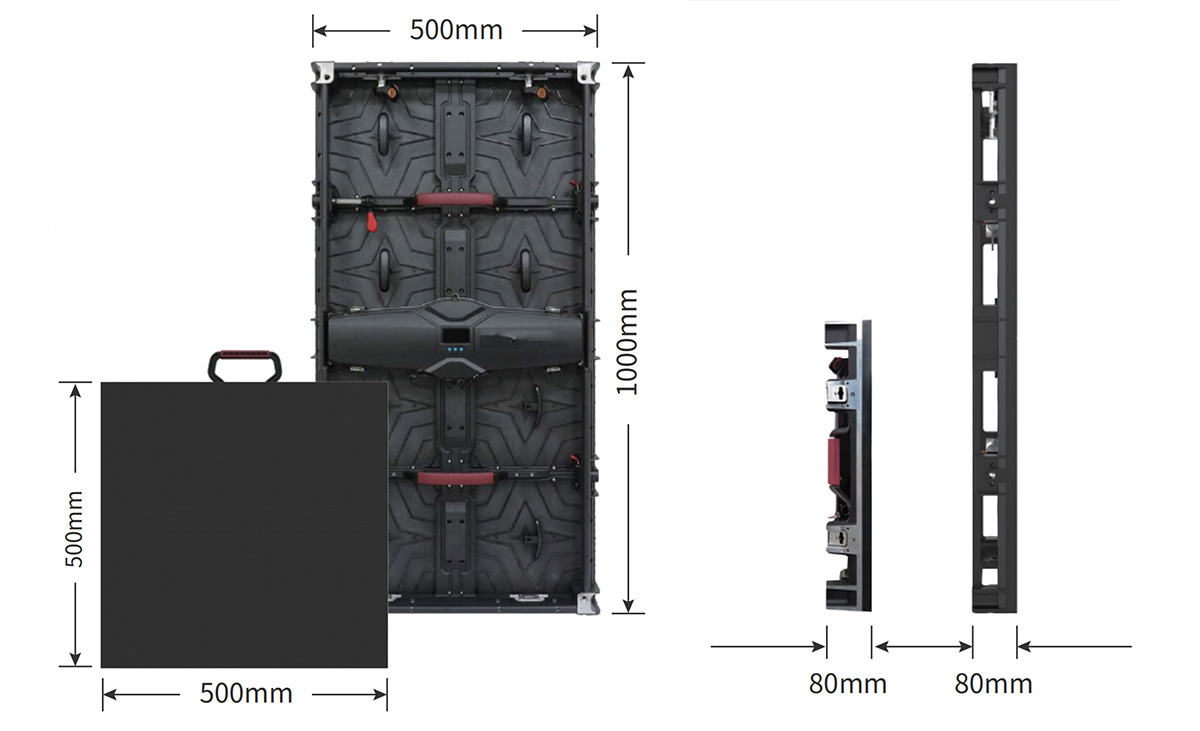

| Dimensions | 500 x 1000 x 80 mm (WxHxD)/ 19.6 x 39.2 x 3.14 inch (WxHxD) | |||
| Weight / Tile | 12.5 kg / 27.55 lbs | |||
| Serviceability | Front and back service | |||
| Certifications | CE, UL, FCC class A, RoHS, WEE, REACH | |||
| Warranty | 2 years standard product warranty | |||
96×96 dots/module
250x250mm panel
500x1000mm Indoor/Outdoor LED
84×84 dots/module
250x250mm panel
500x1000mm Indoor/Outdoor LED
64×64 dots/module
250x250mm panel
500x1000mm Indoor/Outdoor LED
52×52 dots/module
250x250mm panel
500x1000mm Indoor/Outdoor LED
