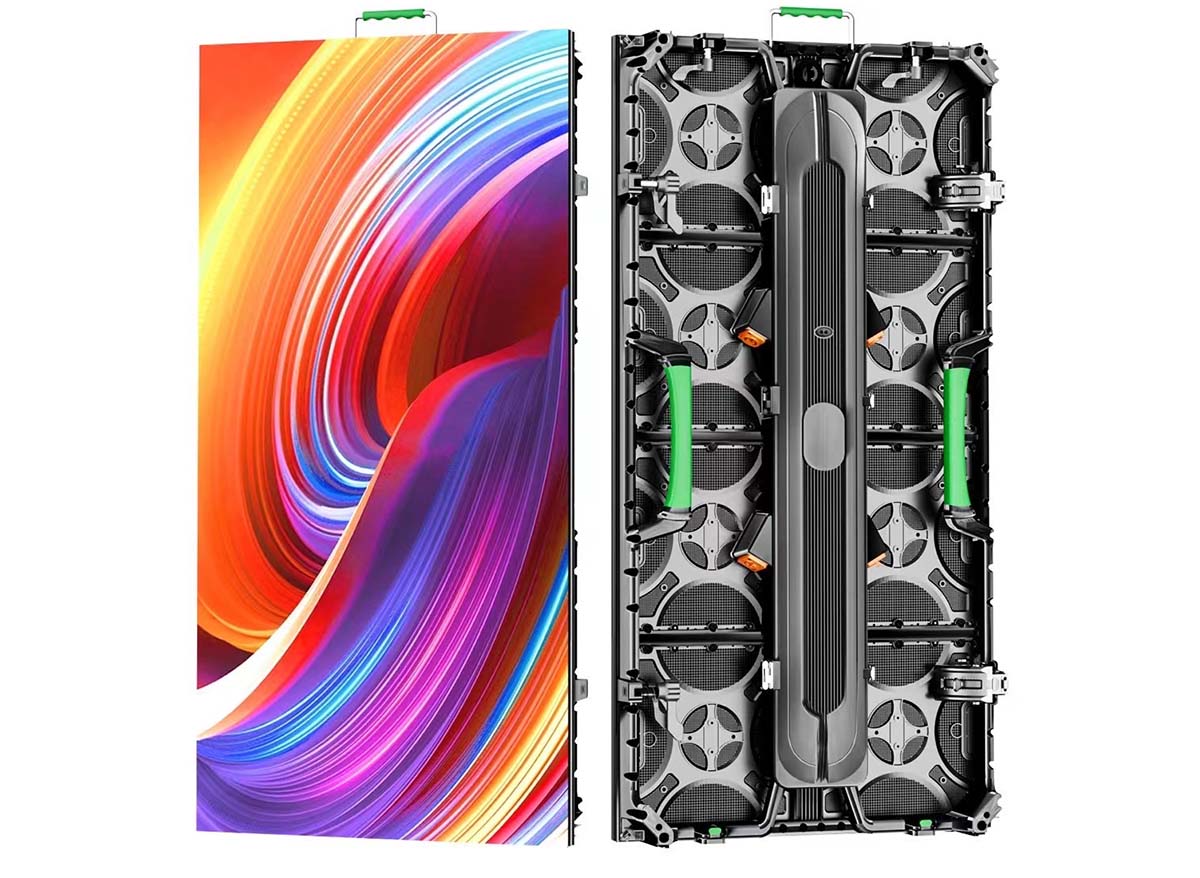

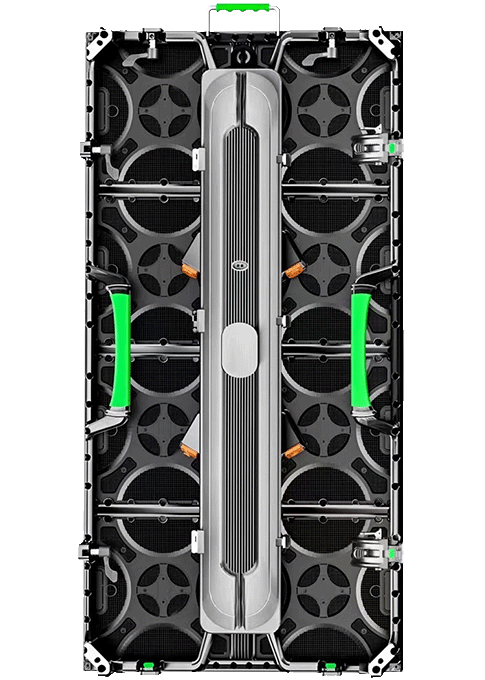

TRK1000 Rental LED design for rental use cabinet has Standard cabinet Size 500*500mm and 500*1000mm, with die-casting aluminum materials, so it has light weight less than 8kg per cabinet, fit with standard module size 250*250mm, easy to get the exact size for LED screen applications.

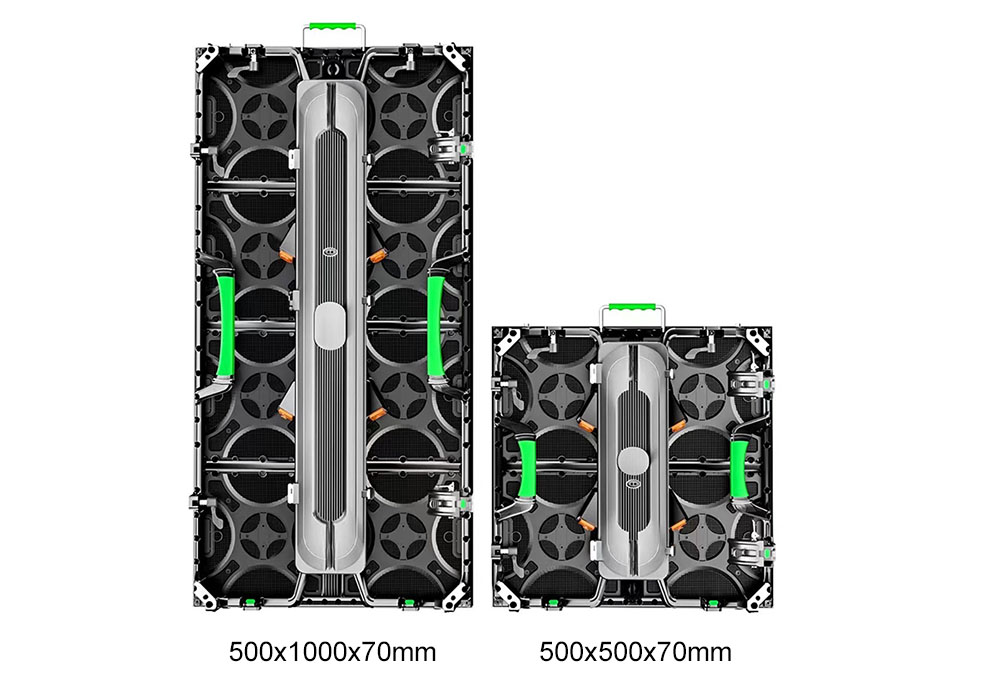

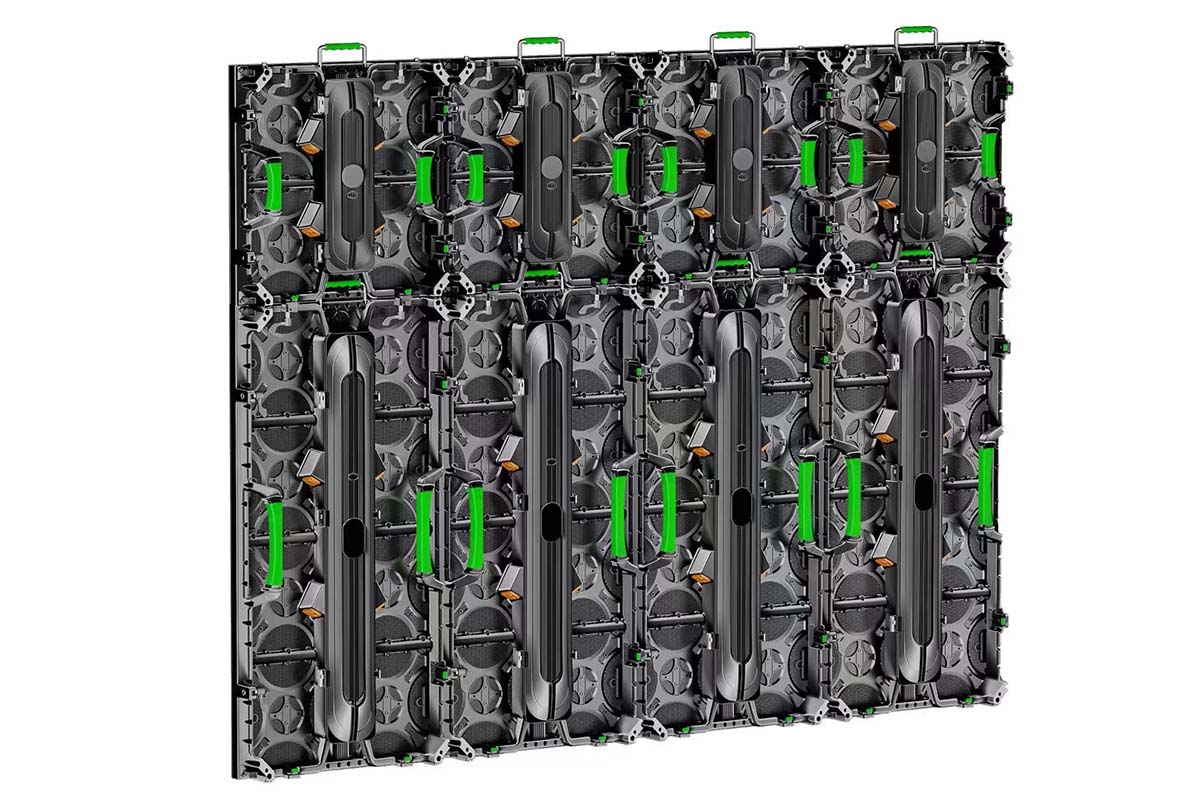

To save cost for customers and also labor cost is lower, TRK1000 cabinet size 500mm and 1000mm height can use together , as to get 1.5m when customers need the size, and there is no color difference, all the same but only the cost is lower of the 500x1000mm cabinets.

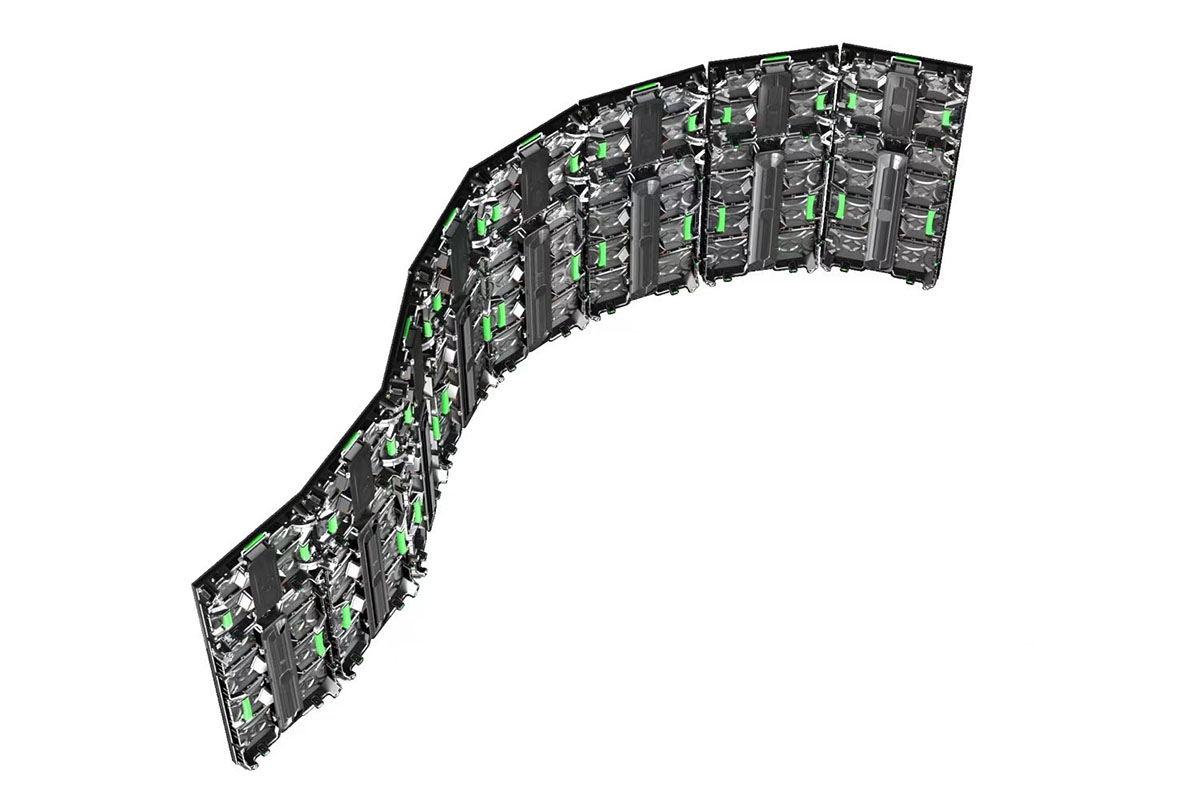

The cabinets could get the convex or concave shape for special LED screen applications needs, to get this wave shape LED screen, the curved lock is an option once customers need it, also it could use for regular flat LED screen display too.

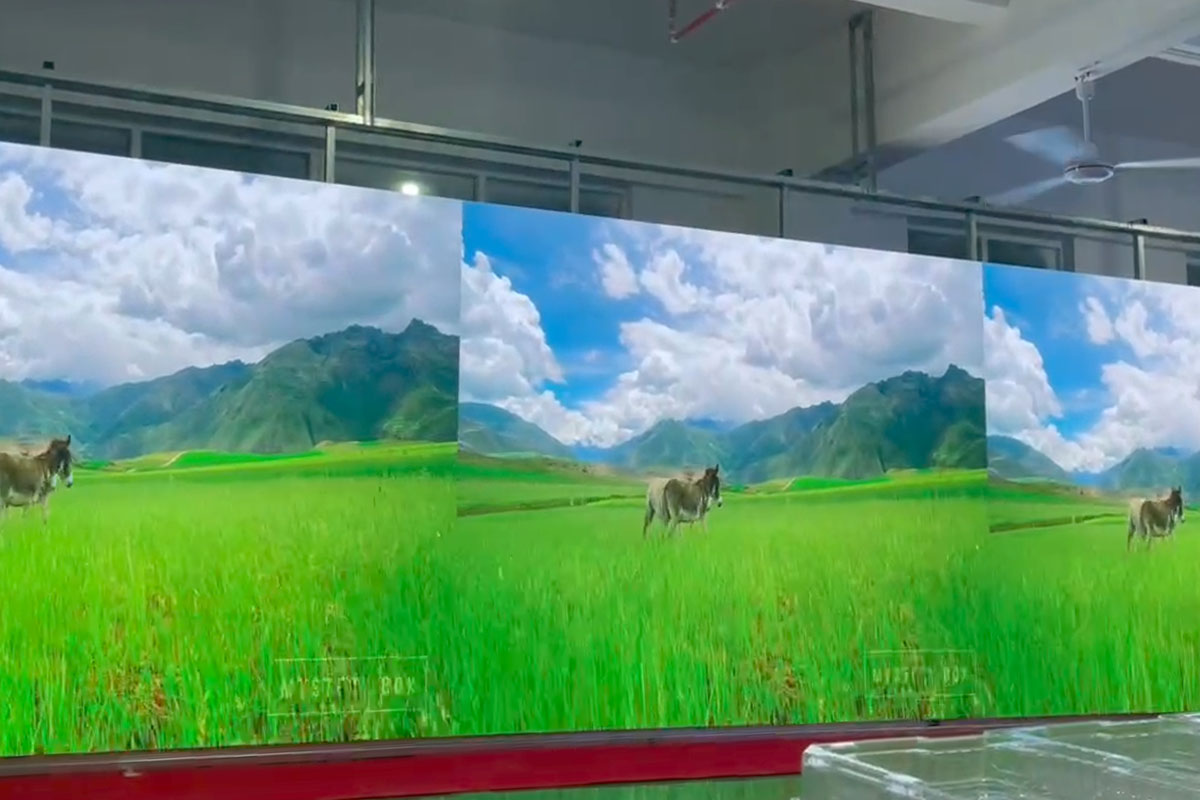

TLI LED work with great materials suppliers in China such as Nationstar, Kinglight LED, MBI ,ICN IC, Novastar tech, Colorlight tech controllers etc, thus we can offer our customer the best performance LED screen displays, lower cost with good quality products, always offer the best solutions for customers.

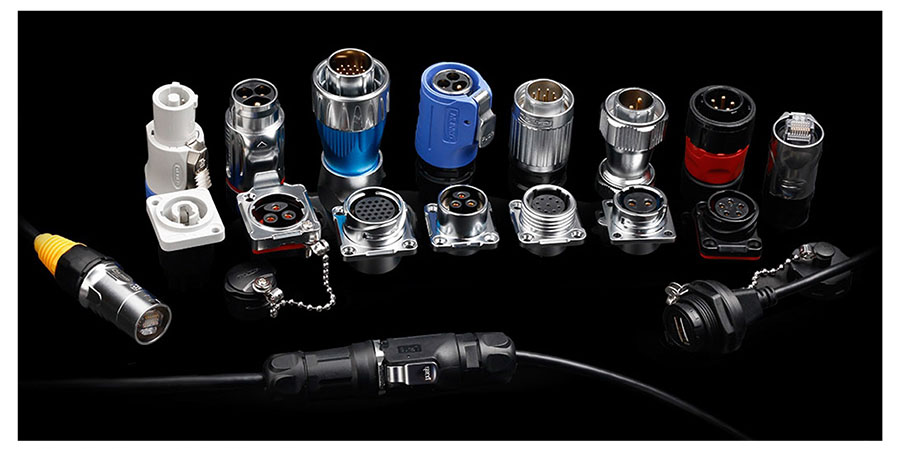

TLI LED choose great Connectors suppliers in China, such as NEUTRIK, Seetronic, CNLinco and so on, the best connectors offer customers great using experience, less headache, less faulty connections issues when using the Rental LED screens.

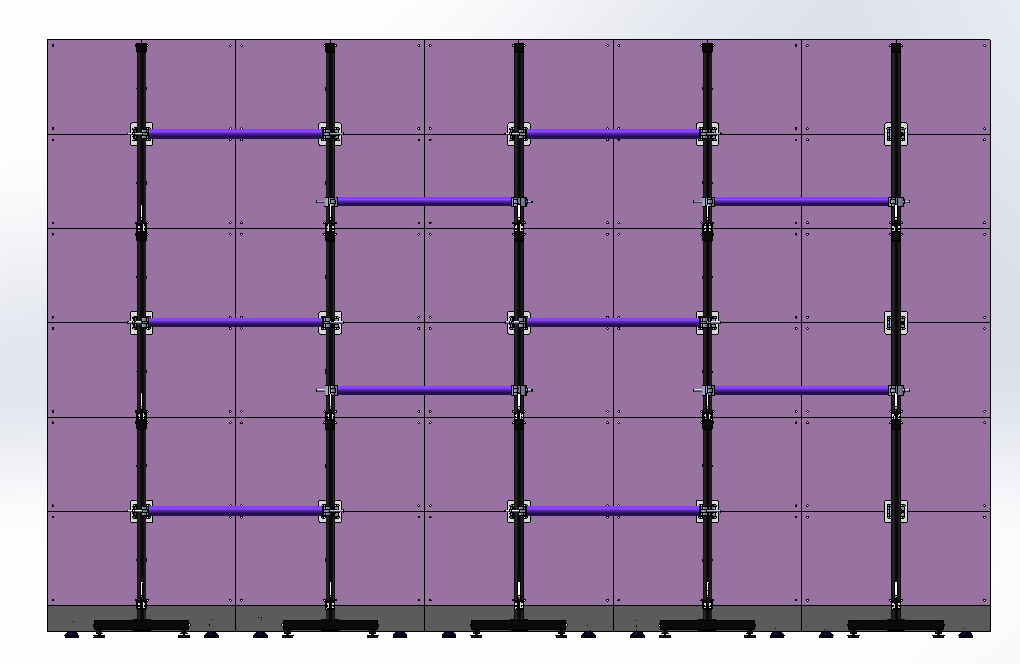

To offer our customer the full solution for rental applications, we work with great Truss suppliers deeply, customized design trusses for customers various requirements, so customers don’t have to buy the parts from different suppliers, also the shipping cost would be lower if ship together.

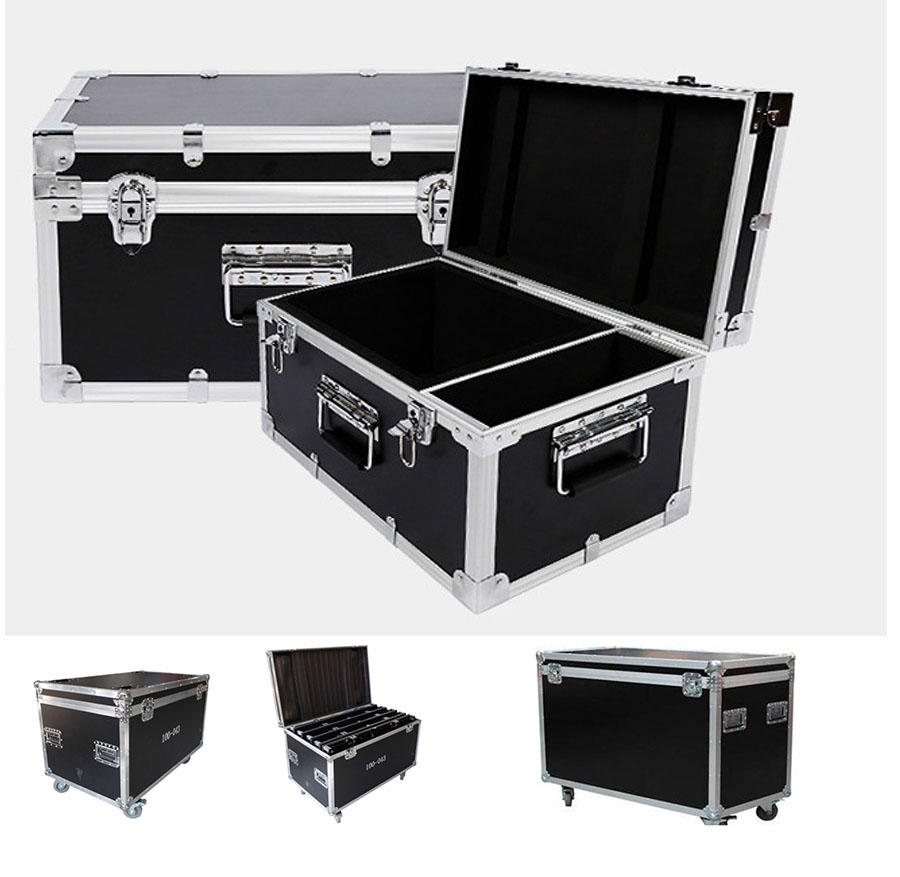

Most of the time, flight case quality is very important, firstly for safety transportations, good quality flight cases are helpful to make sure all the goods are safe when our clients get the LED panels. We have great flight case supper, give us the good quality cases, strong and smooth wheels, also we offer logo printing service for flight cases, it is free cost.
| Pixel pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Pixels per cabinet | 192×192 (HxV) | 168×168 (HxV) | 128×128 (HxV) | 104×104 (HxV) |
| LED lifetime | 100,000h (video – 50% brightness) | |||
| Brightness | 600-1000 nits; | |||
| Module size | 250*250mm | |||
| Module resolution | 96*96dots | 84*84dots | 64*64dots | 52*52dots |
| Refresh rate | 960-3840Hz | |||
| Hor. viewing angle | 140° +/-5° (@50% brightness) | |||
| Vert. viewing angle | 140° +/-5° (@50% brightness) | |||
| Brightness uniformity | >98% | |||
| Dimming | 0-100% | |||
| Grey Level | 14 bits | |||
| Avg Power consumption | 350 W/m² | 320 W/m² | 300 W/m² | 280 W/m² |
| Max Power consumption | 680 W/m² | 640 W/m² | 620 W/m² | 600 W/m² |
| Operation power voltage | 100-240V / 50-60Hz | |||
| Operational temperature | -10°C to +40°C / 14°F to 104°F | |||
| Operational humidity | 10-80% | |||
| IP rating | IP54 for Indoor, IP65 for Outdoor | |||
| Dimensions | 500 x 500 x 80 mm (WxHxD)/ 19.6 x 19.6 x 3.5 inch (WxHxD) | |||
| Weight / Tile | 7.5 kg / 16.53 lbs | |||
| Serviceability | Front and back service | |||
| Certifications | CE, UL, FCC class A, RoHS, WEE, REACH | |||
| Warranty | 3 years standard product warranty | |||
Have LED display projects? Send us message now, we will reply you in 24 hours with the best solution and price for your cases.
96×96 dots/module
192×384 dots/cabinet
Indoor/Outdoor Rental
84×84 dots/module
168×336 dots/cabinet
Indoor/Outdoor Rental
64×64 dots/module
128×256 dots/cabinet
Indoor/Outdoor Rental
52×52 dots/module
108×216 dots/cabinet
Indoor/Outdoor Rental
