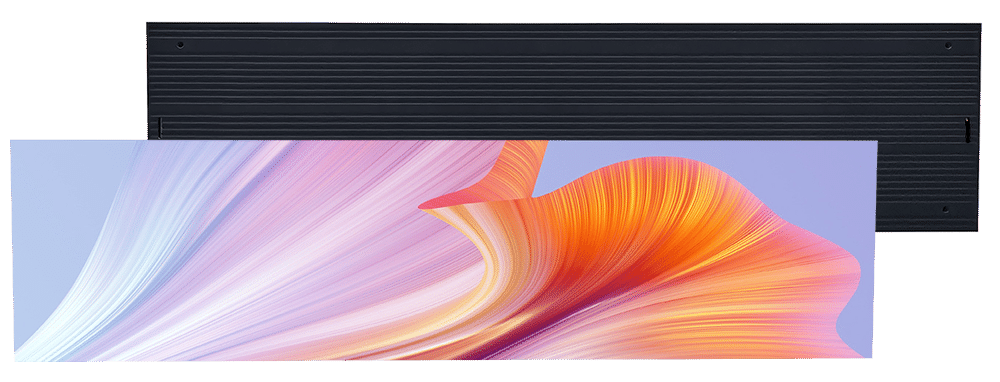

TLI LED TIF1000-Aluminum cabinet Size 1000*250mm.Depth only 33mm. 1000x250mm, 750x250mm, 500x250mm cabinet sizes offer more options than others.Ultra-light (single box weight only 5.8kg/2.9kg).Front maintenance, simple structure and easy installationThe appearance is stylish and simple, ultra-thin and beautiful.Support split-screen multi-screen display.The picture quality is clear, high brightness and contrast, and the color saturation is good.

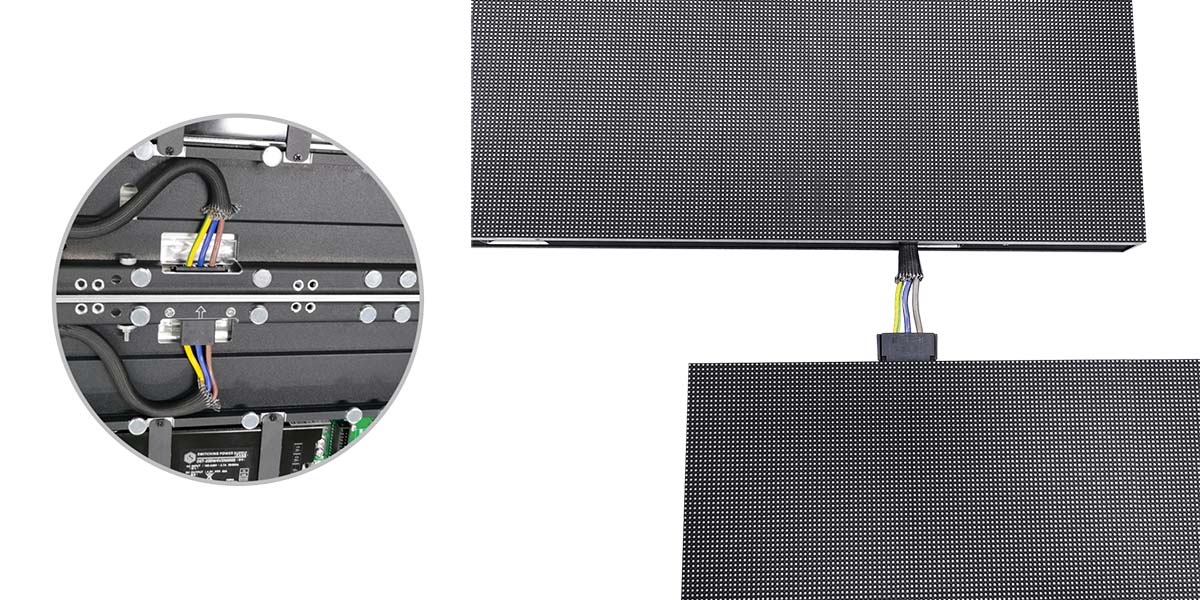

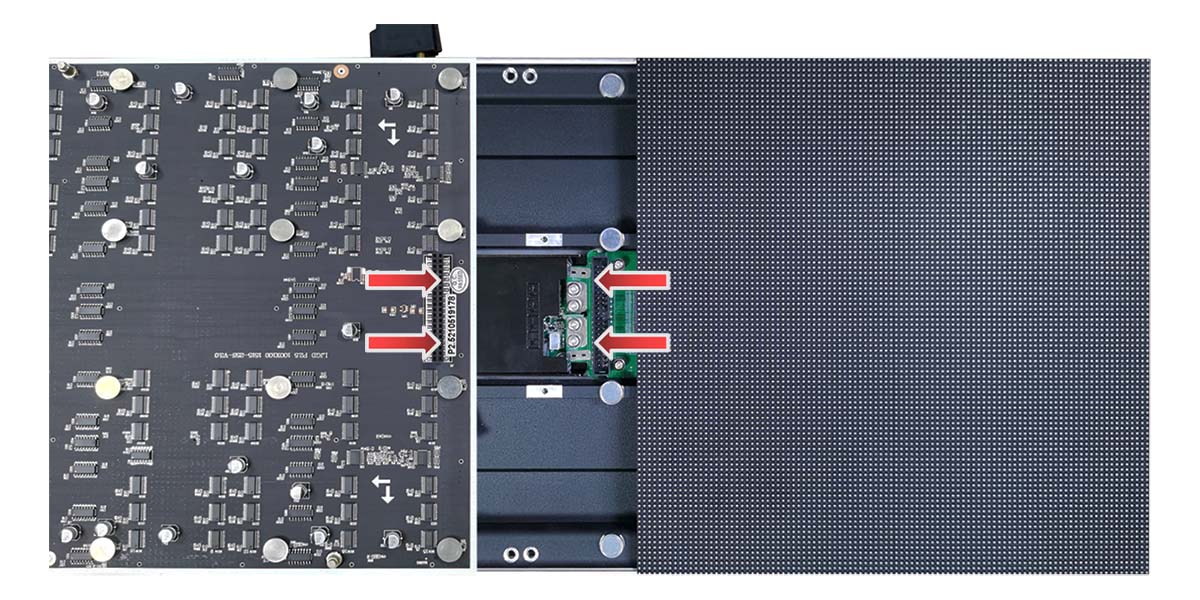

TLI LED TIF1000 Series LED display with standard LED panel size: 250*250mm. Modules hard connection design, no cables, nice and clean, fast installation.

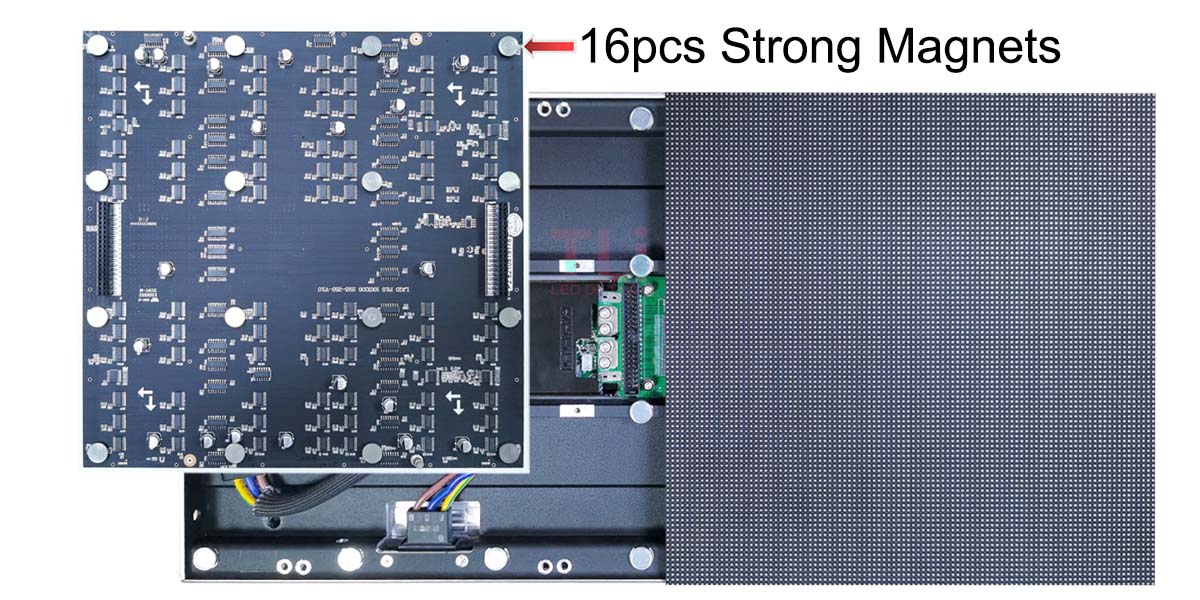

With 16pcs strong magnets on the PCB of the LED module, TLI LED TIF1000 Series makes the screen super safe.Module and the board have strong adsorption, reliable and not falling off.

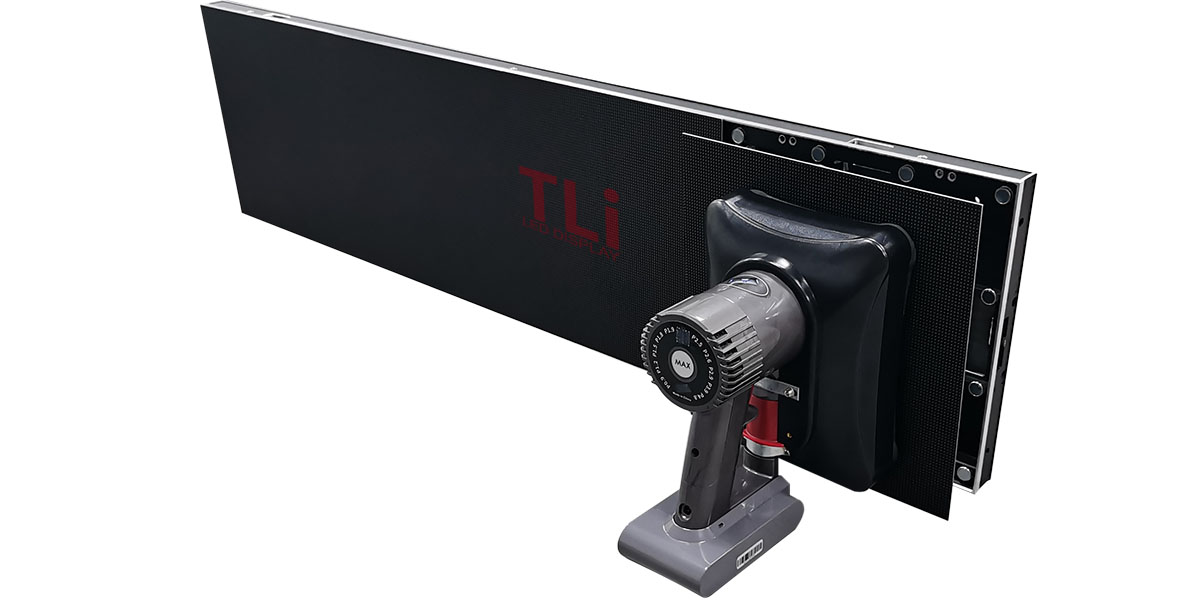

LED modules can be easily removed from front side with the front maintenance machine.
TLI LED TIF640 Series LED display with standard LED panel size: 320mm*160mm. With the lowest cost to renew the old screens becomes super simple.For example P10mm aged LED display if end customers want to upgrade the resolution to make better advertising performance, Just change the modules with our standard module, same cabinet, same structure, same screws holes positions, with much less labor cost customers would get exactly what they need.
TLI LED TIF1000 Series LED display whole cabinet weight only 5.8kg, 500x250mm only 3kg.Much labor cost saving.

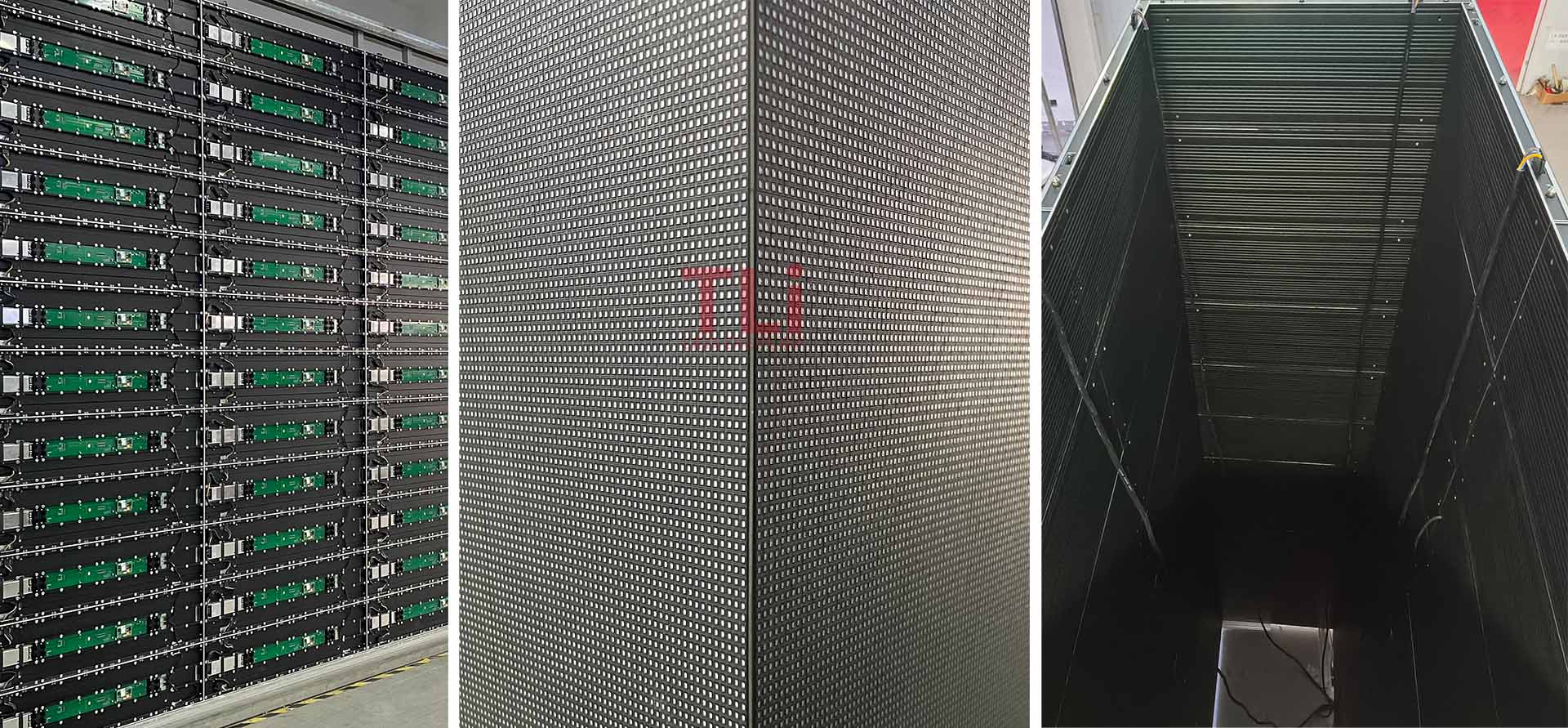

With Right angle cabinet design, the LED screen for the corners of the wall , the columns are possible, with narrow gaps between the corner LED modules, the TIF1000 series also have 750*250mm, 500*250mm cabinet for right angle LED screen applications.

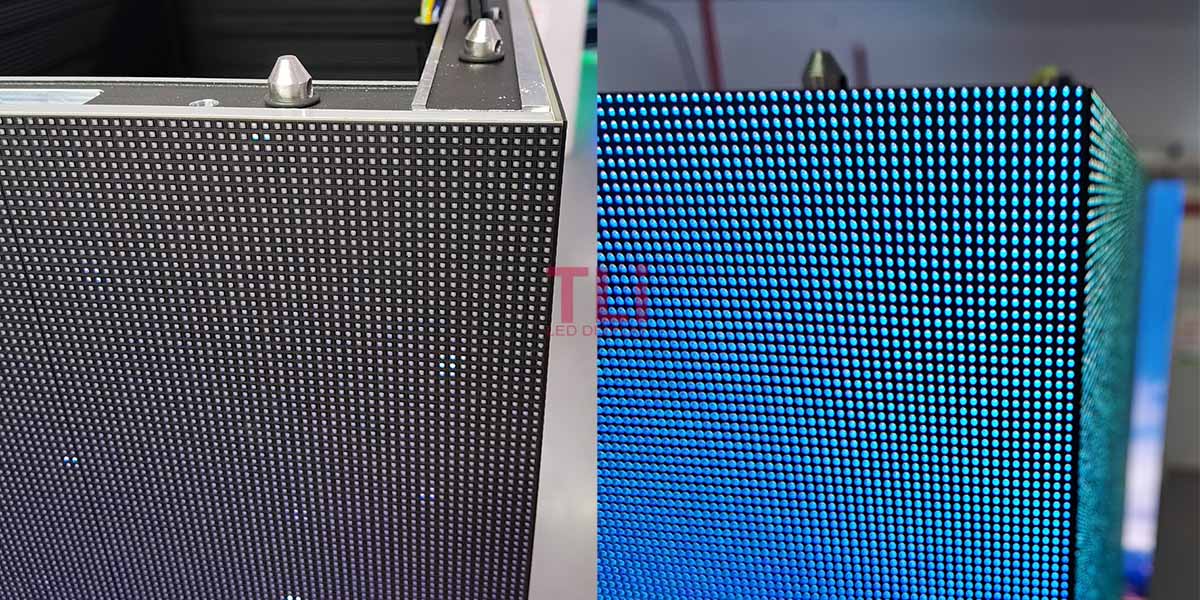

For the right angles screen cases , the gap at the corner is super narrow, only the depth of pcb.

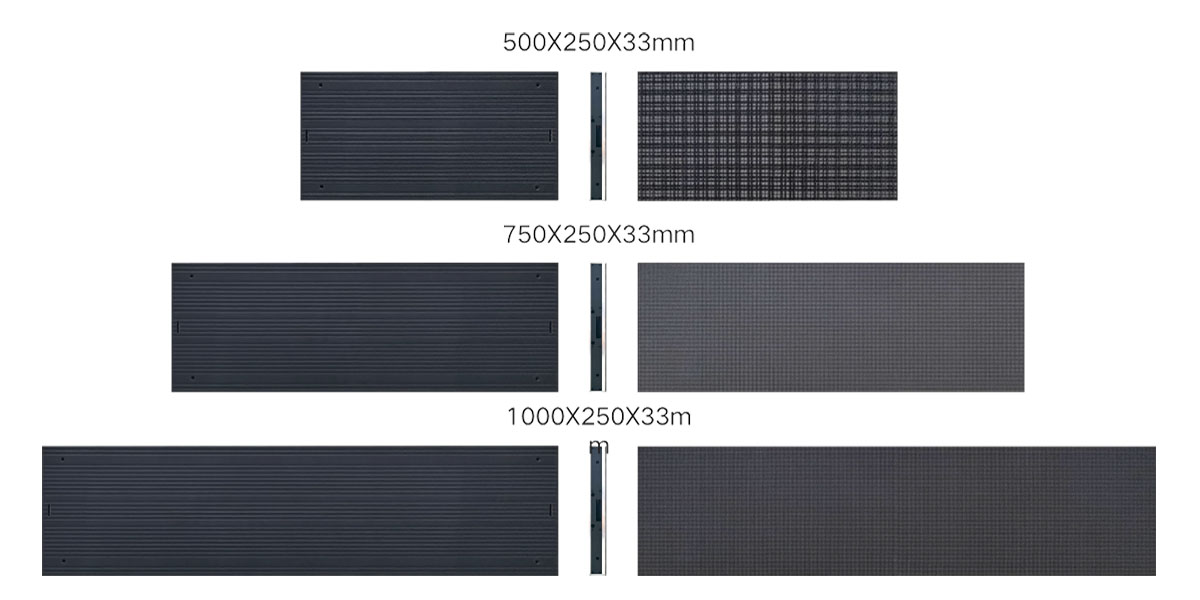

TIF1000 series offer 3 dimension for right angle LED screen applications. 1000x250mm, 750x250mm, 500x250mm cabinet cover most of the requirements of the right corner LED cases.Â

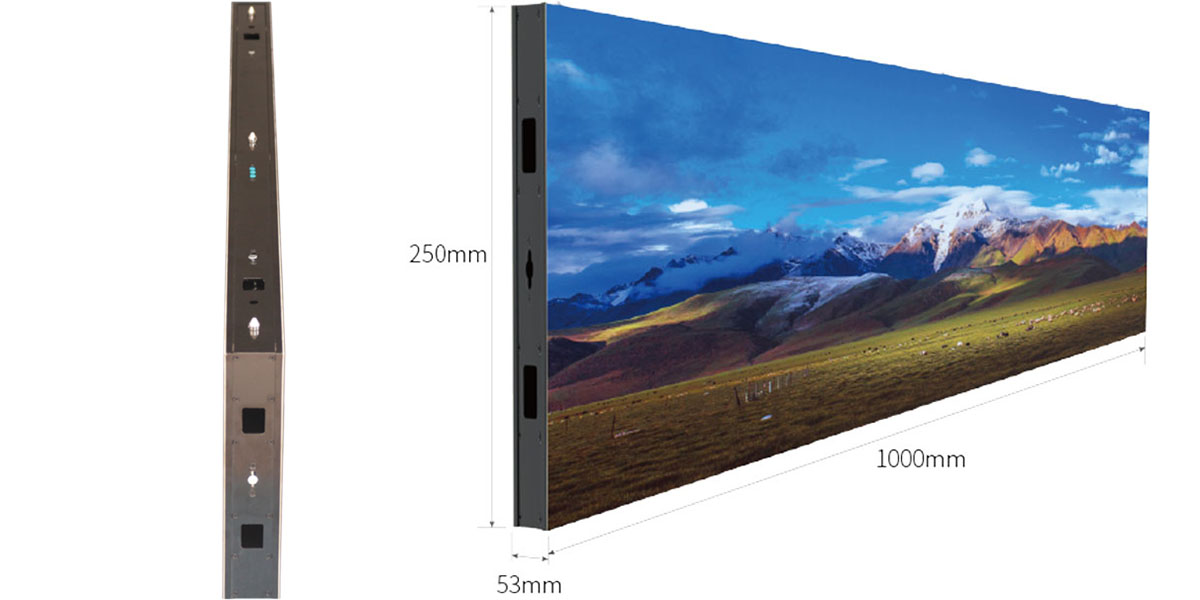

TIF1000 Series also have double sides design , depth only 53mm! Weight only 7kg!
Have LED display projects? Send us message now, we will reply you in 24 hours with the best solution and price for your cases.Â
| Pitch | P1.95 | P2.5 | P2.976 | P3.91 |
| LEDÂ Type | SMD1515 | SMD1515 | SMD1515 | SMD2121 |
| Physical Density(dot/m²) | 262144 | 160000 | 112896 | 65536 |
| Module Pixel(Dots) | 128X128 | 100X100 | 84X84 | 64X64 |
| Module size（mm） | 250X250 | 250X250 | 250X250 | 250X250 |
| Moduel number | 4X1/3X1/2X1 | 4X1/3X1/2X1 | 4X1/3X1/2X1 | 4X1/3X1/2X1 |
| Panel Resolution | 512X128 | 400X100 | 336X84 | 256X64 |
| Maitenance Method | Front | Front | Front | Front |
| Cabinet Frame | Aluminum | Aluminum | Aluminum | Aluminum |
| Dot to Dot Correction | Support | Support | Support | Support |
| Brightness(cd/m²) | 700 | 800 | 800-1000 | 1000-1200 |
| Color Temperature(K) | 3200-9300 | 3200-9300 | 3200-9300 | 3200-9300 |
| Grey Level(bit) | 14/16 | 14/16 | 14/16 | 14/16 |
| View Angle(H/V) | 160°/160° | 160°/160° | 160°/160° | 160°/160° |
| Contrast Ratio | 5000:01:00 | 5000:01:00 | 5000:01:00 | 5000:01:00 |
| Frame Frenquency(Hz) | 50/60 | 50/60 | 50/60 | 50/60 |
| Drive Mode | 1/32 Scan | 1/32 Scan | 1/32 Scan | 1/32 Scan |
| Max Power（w/m²） | 800 | 800 | 800 | 800 |
| Avg Power（w/m²） | 100-200 | 100-200 | 100-200 | 100-200 |
| Power Requirment | AC90-264V | AC90-264V | AC90-264V | AC90-264V |
| 47-63Hz | 47-63Hz | 47-63Hz | 47-63Hz |
128×128 dots/module
256/384/512 dots/cabinet
TIF1000 Series Indoor LED
100×100 dots/module
200/300/400 dots/cabinet
TIF1000 Series Indoor LED
64×64 dots/module
128/192/256 dots/cabinet
TIF1000 Series Indoor LED
52×52 dots/module
104/156/208 dots/cabinet
TIF1000 Series Indoor LED
