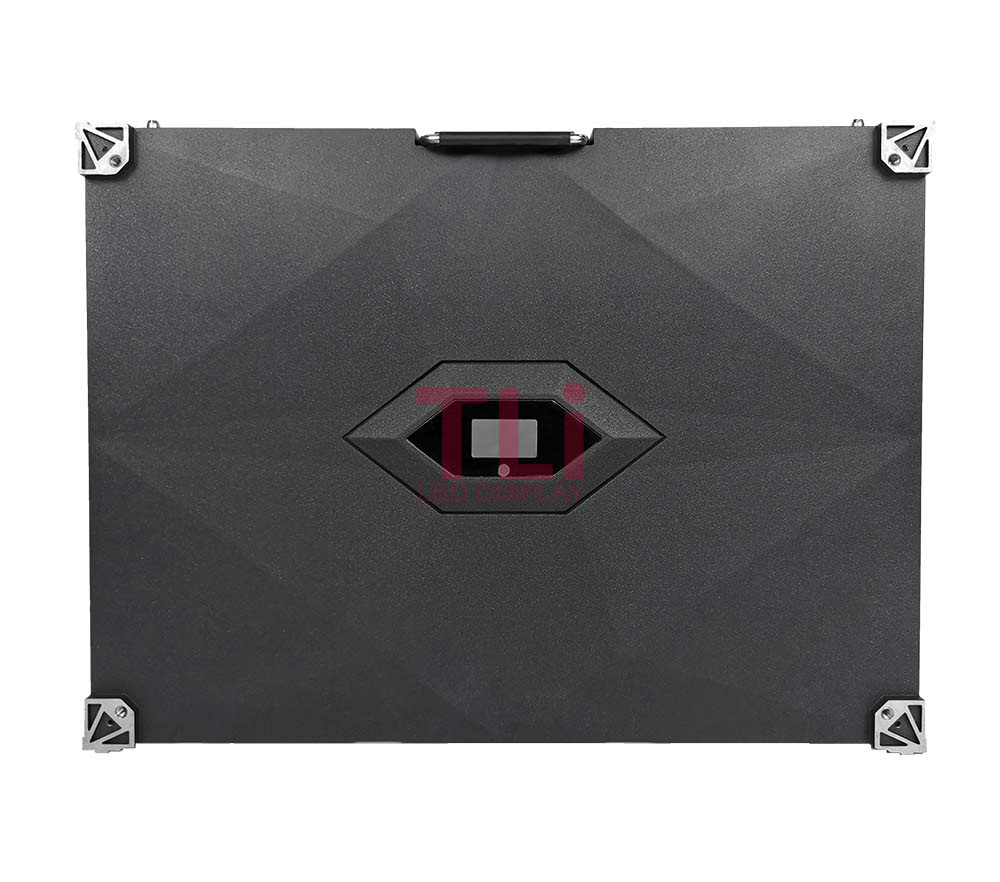

TLI LED TIF640-A Aluminum Standard cabinet Size 640x480mm.Match all the Standard LED Display Cabinet Screw Holes for standard led module 320x160mm. For most of the project can fit different pitch led modules to meet the requirements of replacements or upgrade project resolution, with simple steps your projects will be refresh significant efficient.After using years of LED display screen you could get new screen in a super low cost way.
TLI LED TIF640-A Series LED display with LED module size: 320mm*160mm, Standardized size modules, we can customize the lamp beads that customers need: Nationstar LED, Kinglight LED, Hongshen LED are our main lamp suppliers, reliable quality. IC: MBI, ICN, FM and other high refresh high color performance driver IC. We can also customize PCBs for customers, as well as for customers’ projects need to customize different materials, we always from the customer’s point of view for customers to solve problems, create high value.
TIF640X480mm A Series LED display Product has much Less weight led display with quick locks, delicate structure for easy installation, less labor cost needed. With powerCon and signal connector, the whole installation will be finished in a short time, fast work and less labor cost. Actually most of the work would be finished in our factory, to keep the LED modules safety, the packing will be separately from the modules, all you need to do is to mount the modules back on the cabinet when install onsite. The hub board is an option for come cases , the small pixel pitch LED modules are more easier to assembly.

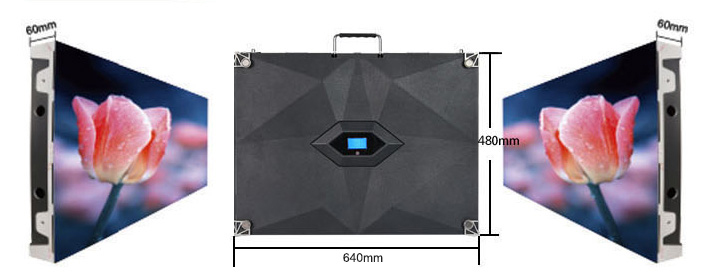

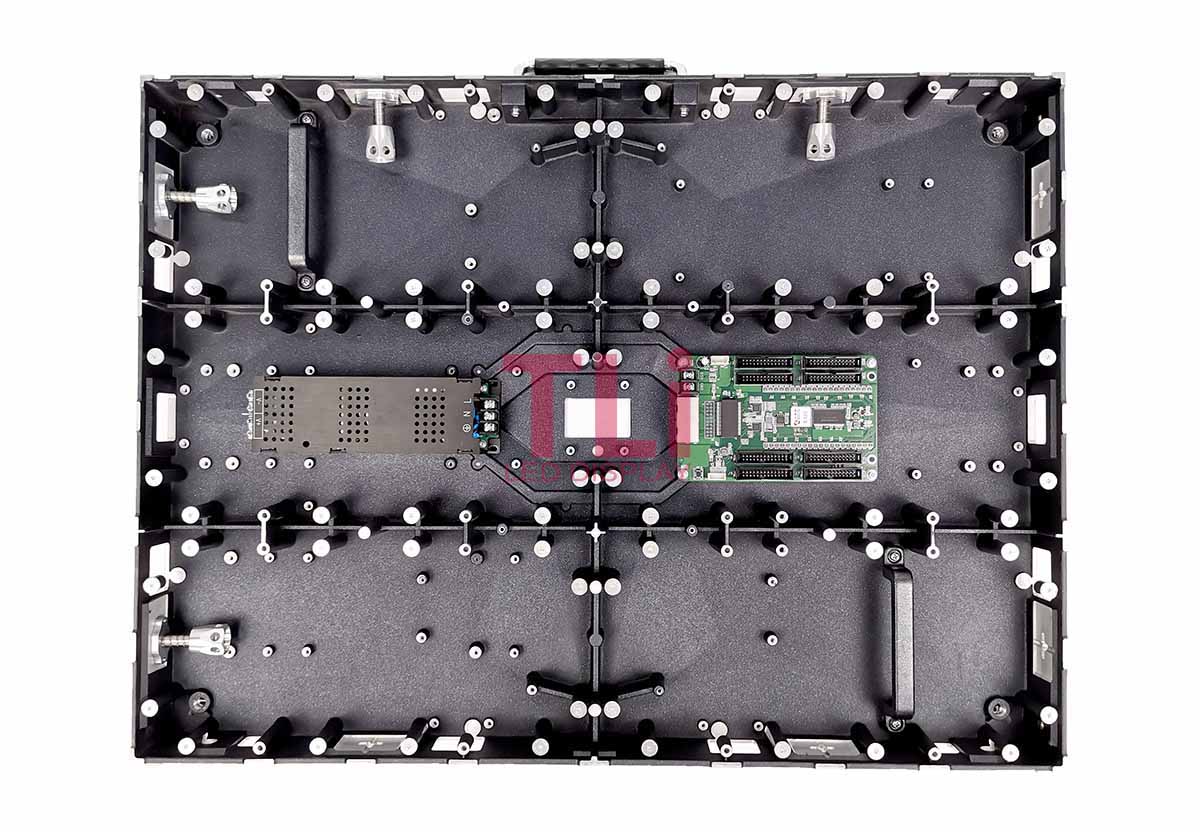

TLI LED TIF640-A Series LED Display LED is for indoor fixed installation applications, with standard size 320x160mm LED Modules, from P10mm to fine pixel P1.25mm, TIF640-A series could be one of the best choice. Front service design for LED power supply, cards and modules, ultra lightweight, magnesium alloy material, 4:3 ratio cabinet with 640*480mm dimension, very good flatness, installation is very easy, also disassembly, for indoor fixed led display and even indoor rental LED display TIF640-A is the one could meet the requirements of the cases.

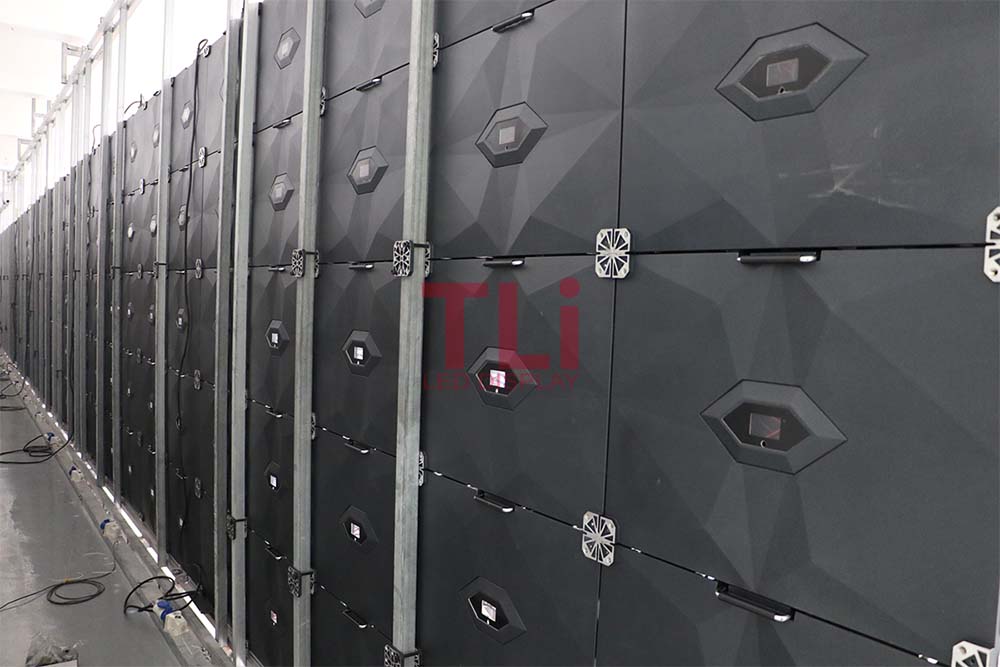

TIF640-A series Equipped with unique lock, the position of each cabinet can be precisely adjusted from left and right, up and down, front and back, every cabinet can be positioned to the exact place with accuracy to millimeter, presenting a ultra-flat and seamless cabinet alignment.
| Model | Pixel Pitch | Module Size | Scan Method | Cabinet Size | Cabinet Weight | Brightness(CD/m2) |
| TIF640-1.25 | 1.25mm | 320x160mm | 1/32 Scan | 640x480mm | 5.5kg | 1000-1200 |
| TIF640-1.37 | 1.37mm | 320x160mm | 1/29 Scan | 640x480mm | 5.5kg | 1000-1200 |
| TIF640-1.53 | 1.53mm | 320x160mm | 1/26 Scan | 640x480mm | 5.5kg | 1000-1200 |
| TIF640-1.66 | 1.66mm | 320x160mm | 1/32 Scan | 640x480mm | 5.5kg | 1000-1200 |
| TIF640-1.83 | 1.83mm | 320x160mm | 1/29 Scan | 640x480mm | 5.5kg | 1000-1200 |
| TIF640-1.86 | 1.86mm | 320x160mm | 1/43 Scan | 640x480mm | 5.5kg | 1000-1200 |
| TIF640-2 | 2mm | 320x160mm | 1/40 Scan | 640x480mm | 5.5kg | 1000-1200 |
| TIF640-2.5 | 2.5mm | 320x160mm | 1/32 Scan | 640x480mm | 5.5kg | 1000-1200 |
| TIF640-3.07 | 3.07mm | 320x160mm | 1/26 Scan | 640x480mm | 5.5kg | 1000-1200 |
| TIF640-4 | 4mm | 320x160mm | 1/20 Scan | 640x480mm | 5.5kg | 1000-1200 |
| TIF640-5 | 5mm | 320x160mm | 1/16 Scan | 640x480mm | 5.5kg | 1000-1200 |
256×128 dots/module
512×384 dots/cabinet
640x480mm Indoor LED
208×104 dots/module
416×312 dots/cabinet
640x480mm Indoor LED
192×96 dots/module
384×288 dots/cabinet
640x480mm Indoor LED
160×80 dots/module
320×240 dots/cabinet
640x480mm Indoor LED
128×64 dots/module
256×192 dots/cabinet
640x480mm Indoor LED
104×52 dots/module
208×156 dots/cabinet
640x480mm Indoor LED
80×40 dots/module
160×120 dots/cabinet
640x480mm Indoor LED
64×32 dots/module
128×96 dots/cabinet
640x480mm Indoor LED
