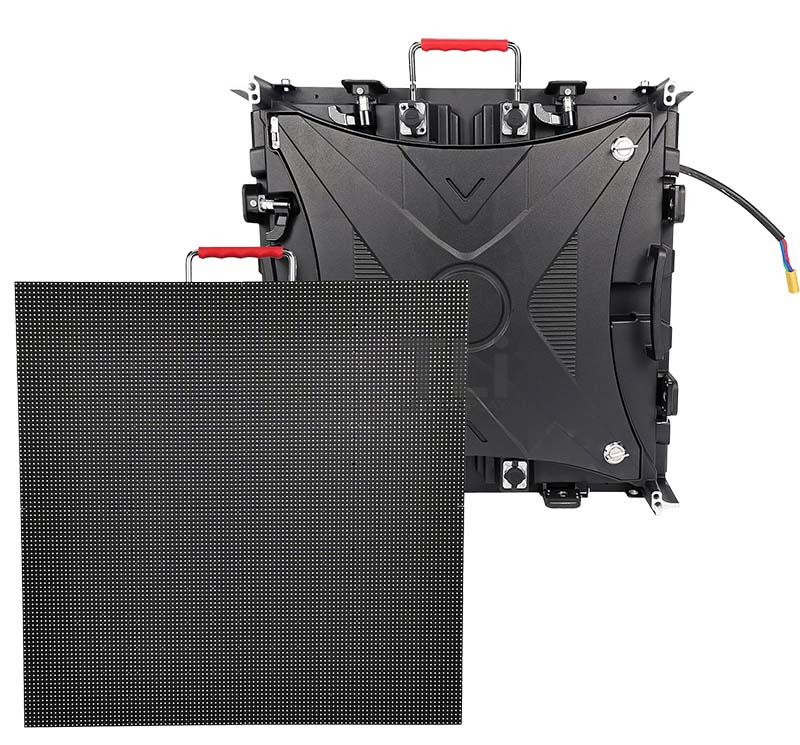

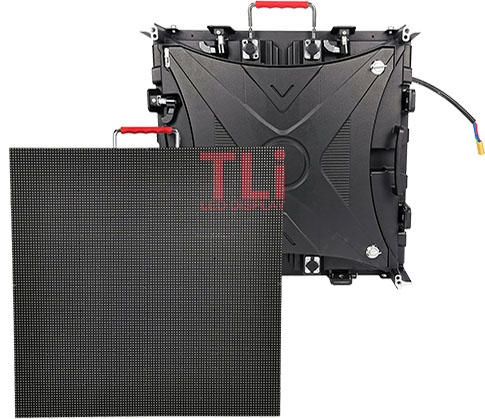

TLI LED TOF500 Outdoor Frontal Service LED Screen, designed with 500*500mm aluminum cabinet, cables go inside of the cabinets, all parts can be front maintenance. Designed for 250x250mm LED modules, with tools, the installation can be easy and simple.
TLI LED TOF500 series have P3.91mm, P4.81mm LED module pitch, with 250x250mm size, can be combine to 0.5m, 0.75m, 1m and so on, to calculate the size and cost would be much easier for many countries and areas all over the world. TLI LED also offer LED modules and LED accessories for customer as you might need all these part to build your own LED screens.
TOF500 series cabinet rear door can be open or sealed. With a tool we could replace all the part include the module from back side of the screen, install and checking or maintenance would be super convenient.

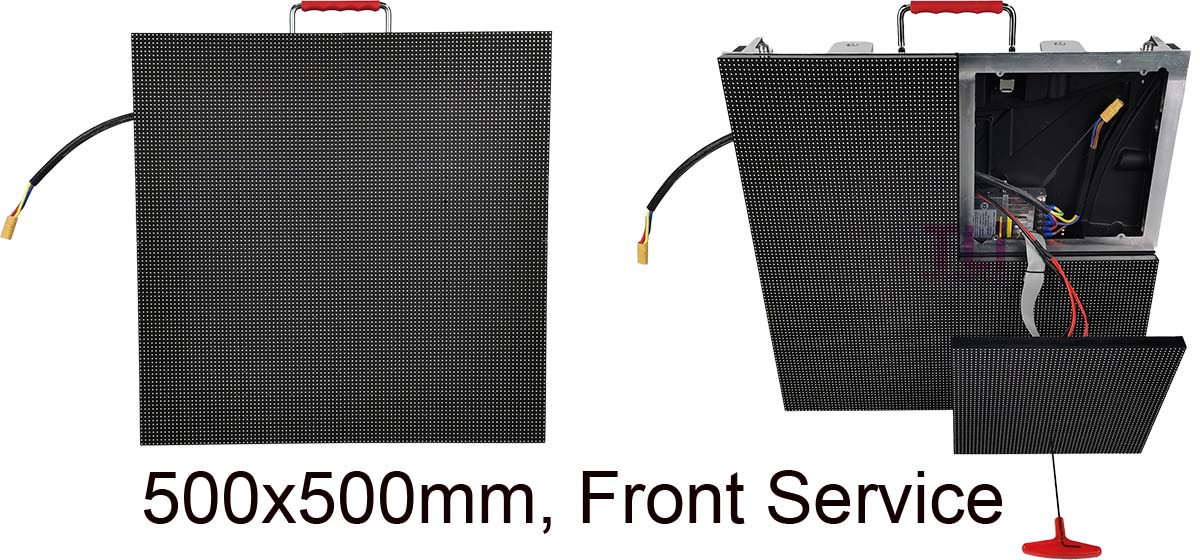

TOF500 Series cabinet with front and rear service design, we can install the cabinet and connect all the cables, after the connections finished, we could simply send the configuration file to the receiving cards and put the module to the surface one by one , cables can go through inside the cabinets, clean and clean outside

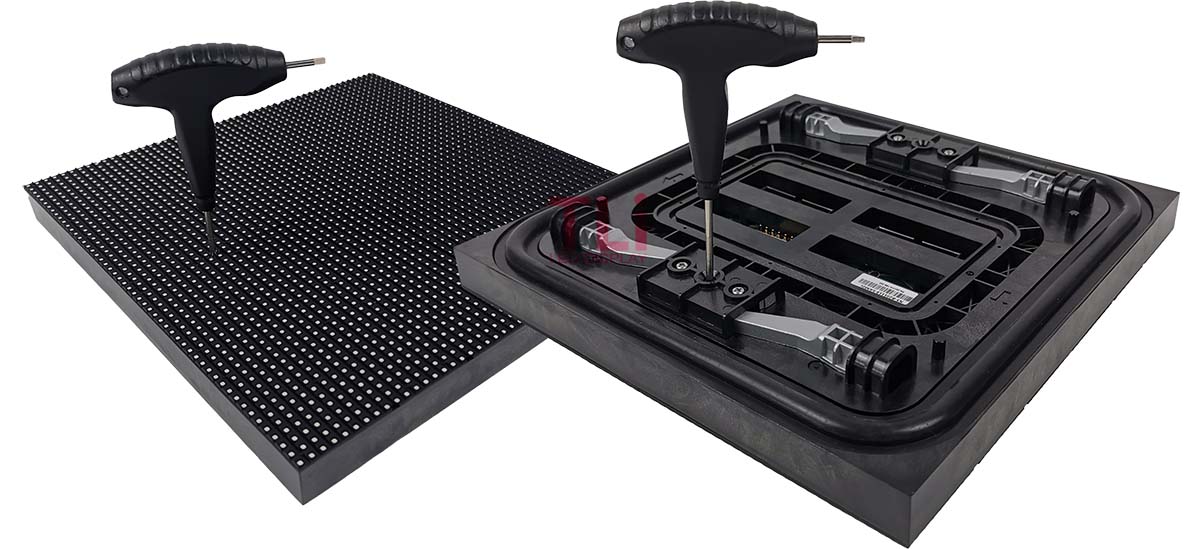

With special LED module design, TOF800 Outdoor Frontal Service LED series LED modules have waterproof robber, also this make possible to be front service, whenever you remove the modules from front or rear side, the job becomes so simple.
Have LED display projects? Send us message now, we will reply you in 24 hours with the best solution and price for your cases.
| Pixel Pitch | 3.91mm | 4.81mm |
| LED | SMD 3in1 | SMD 3in1 |
| Module size | 250*250mm | 250*250mm |
| Module resolution | 64*64dots | 52*52dots |
| LED Cabinet Size | 500*500*80(mm) | 500*500*80(mm) |
| Cabinet Weight | 8kg/pc | 8kg/pc |
| Material | Aluminum | Aluminum |
| Brightness | 5500-6500 cd | 5500-6500 cd |
| Avg power consumption | 300w | 300w |
| Max power consumption | 900w | 900w |
| Best Viewing Distance | 4m to 40m | 5m to 50m |
| Grey Level | 14 bits | 14 bits |
| Fresh frequency | ≥960HZ | ≥960HZ |
| Humidity-operating | 10% ~ 95% | 10% ~ 95% |
| Screen life | ≥100000 hours | ≥100000 hours |
| Controlling mode | Synch or Async | Synch or Async |
| Certificates | CE,RoHs,FCC,UL | CE,RoHs,FCC,UL |
| Warranty | 3 Years | 3 Years |
| Protective grade | IP65 Waterproof | IP65 Waterproof |
84*84 dots/module
250*250mm module
Outdoor Front Service
64*64 dots/module
250*250mm module
Outdoor Front Service
52*52 dots/module
250*250mm module
Outdoor Front Service
We offer full technical support for our customers, also for more information or get quotes from us, click here to contact us.
