We choose High-Quality Nationstar/Kinglight/Hongsen LEDs from LED Lamps Factory directly for producing indoor LED display modules, which have high color contrast and best color uniformity, which can meet the need for high grayscale and keeping natural color for long time.​
We use the best Driving IC, such as MIB5153,MBI5124, ICN2153,ICN2038S with high refresh rate and high grey level with the latest technologies to achieve the best visual performance of TLI indoor LED display modules, the refresh rate reach up to 1920-3840Hz no flicking.
We spend 72 Hours aging test (white balance aging (2×24 hours) and video aging (24 hours)) to improve the reliability of the TLI indoor LED display modules, also to eliminate broken LEDs.

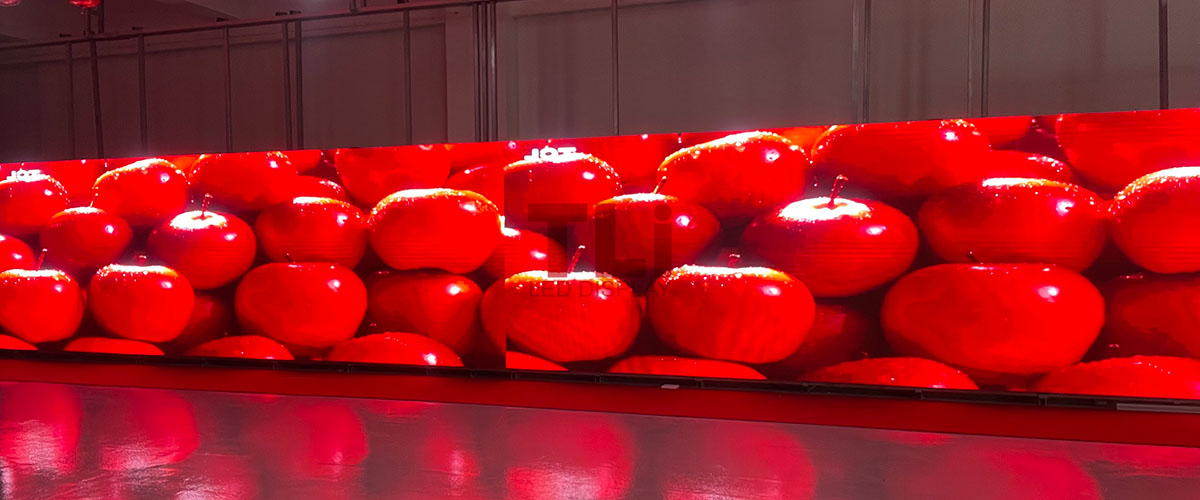

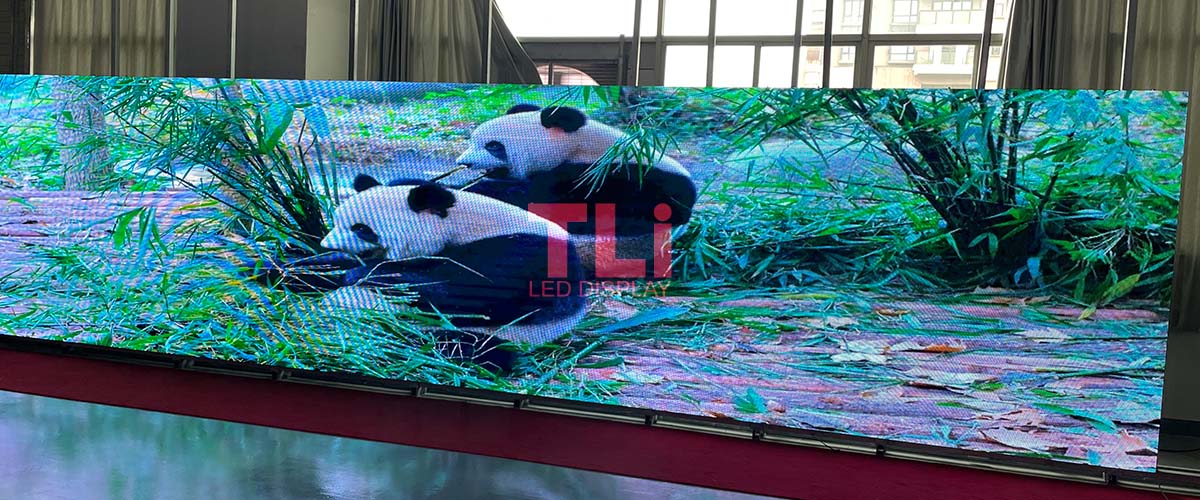

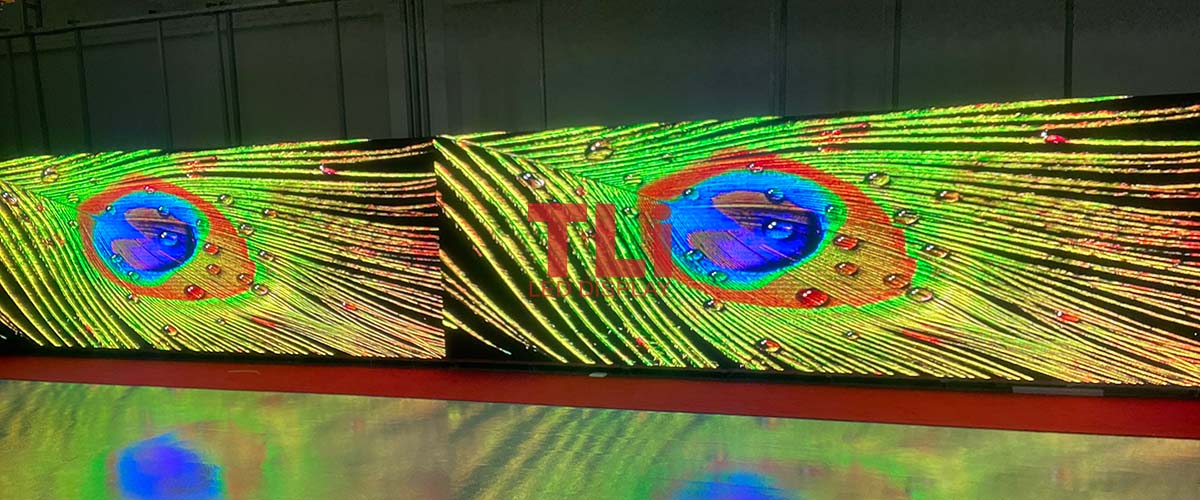

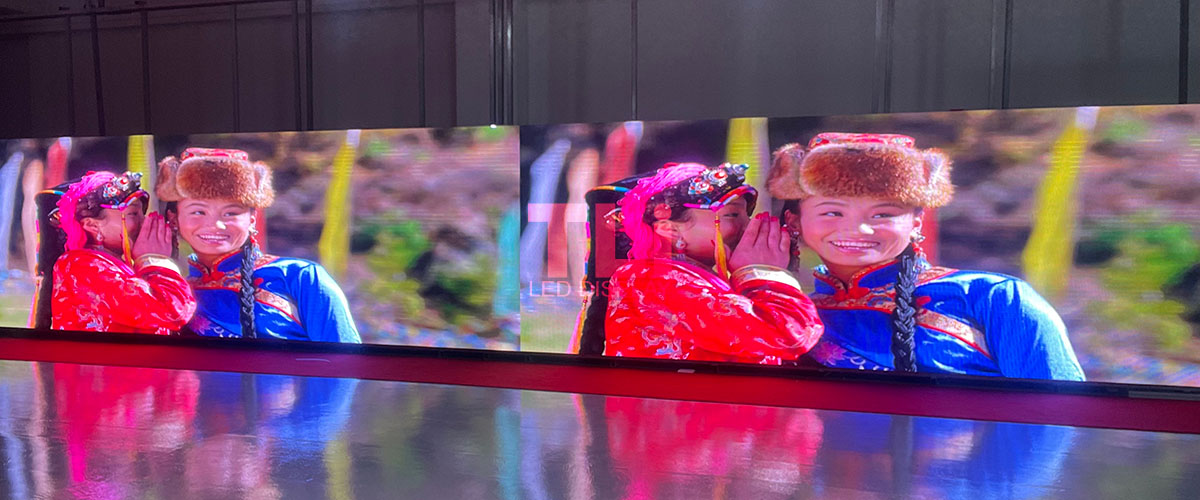

After the LED Dispaly assembly finished, we test the whole screens for at least 3 days to ensure every part of the screen working well and all the accessories like the controllers, spare parts all good before shipping.
Rental LED screen is a LED display specially used for stage performances, cultural events. Generally by the form of leasing appears, so named Rental LEDÂ screen.
Rental LED display as a customized die-cast aluminum box design, light, thin, fast installation is its most important features. The box is thin and light, can be quickly installed, dismantled and transported, suitable for large area rental and fixed installation applications. And the use of synchronous control system processing, can accept DVI, VGA, HDMI, S-video, composite, YUV and other video input signals, can play video, graphics and other programs at will, in real-time, synchronous, clear information dissemination mode to play a variety of information. The color is realistic and the adaptability is strong. LED rental displays have the following advantages:
1, ultra-light – the weight is only 7kg, a single person can be carried single-handedly, installation is very easy;
2, ultra-thin – the box is made of die-casting aluminum molding, high strength, toughness, high precision, not easy to deform, for the transportation of labor;;
3, high precision – the size is electromechanical device processing accurate to 0.1mm;
4. Compatible – new structural design to meet the requirements of hoisting and stacking, and to meet indoor and outdoor requirements;
5, fast – the box up and down left and right connection using a fast locking mechanism, 10 seconds can complete the installation of a box, high installation accuracy;
6, reliable – high strength hardness, good heat dissipation effect;
7, cost – the box weight is light, the required installation costs are low; the box power consumption is low, saving operating costs and reducing labor costs.
TLI rental LED display light weight, thin structure, hoisting and quick installation function, so as to meet the requirements of the rental occasion of rapid installation and disassemble and handling requirements; easy to load and unload, easy to operate, the whole screen loading and unloading by fast bolt fixing and connection, can accurately and quickly frame the screen and disassemble the screen, and can spell different shapes to meet the site requirements; unique process: unique welding process optimization of the structural design, to avoid frequent handling caused by the electronic product solder joint contact caused by the failure site and other conditions;

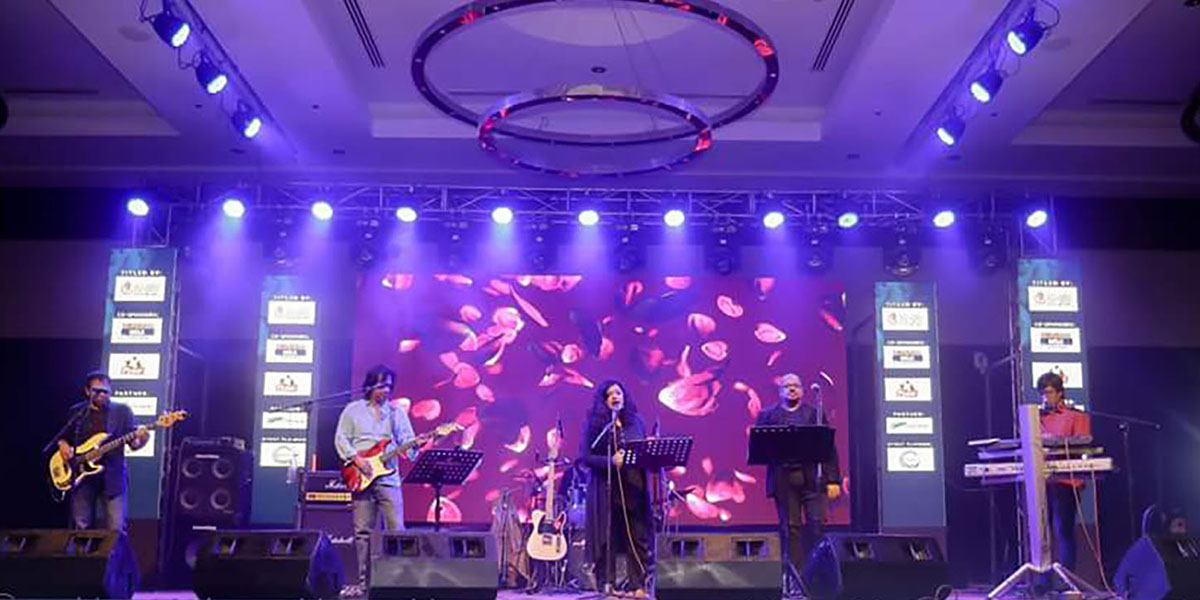

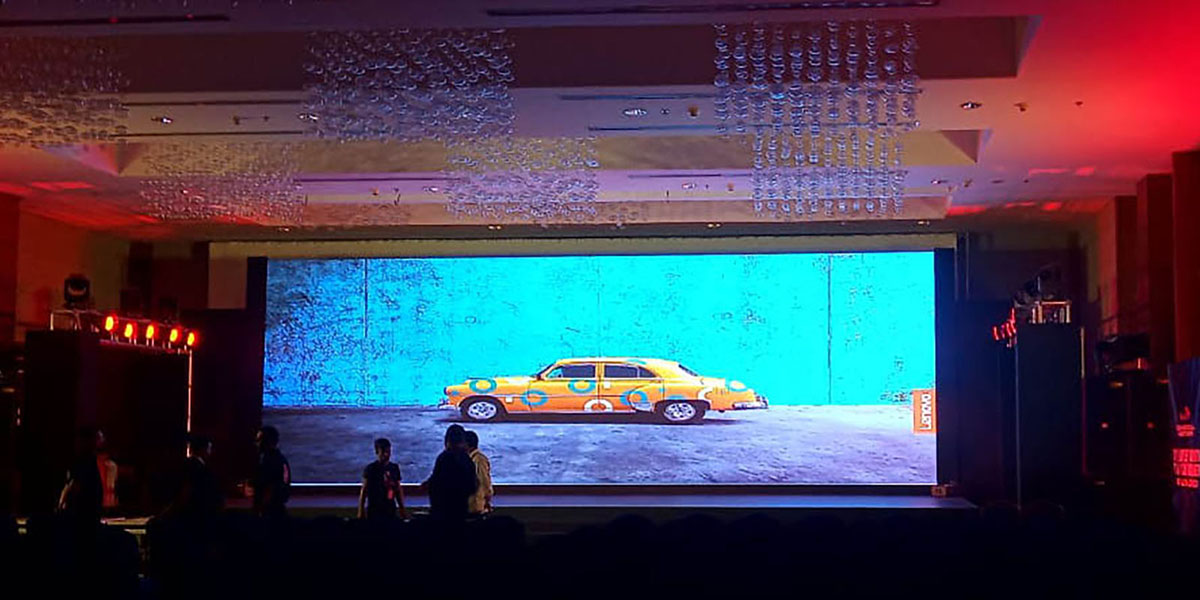

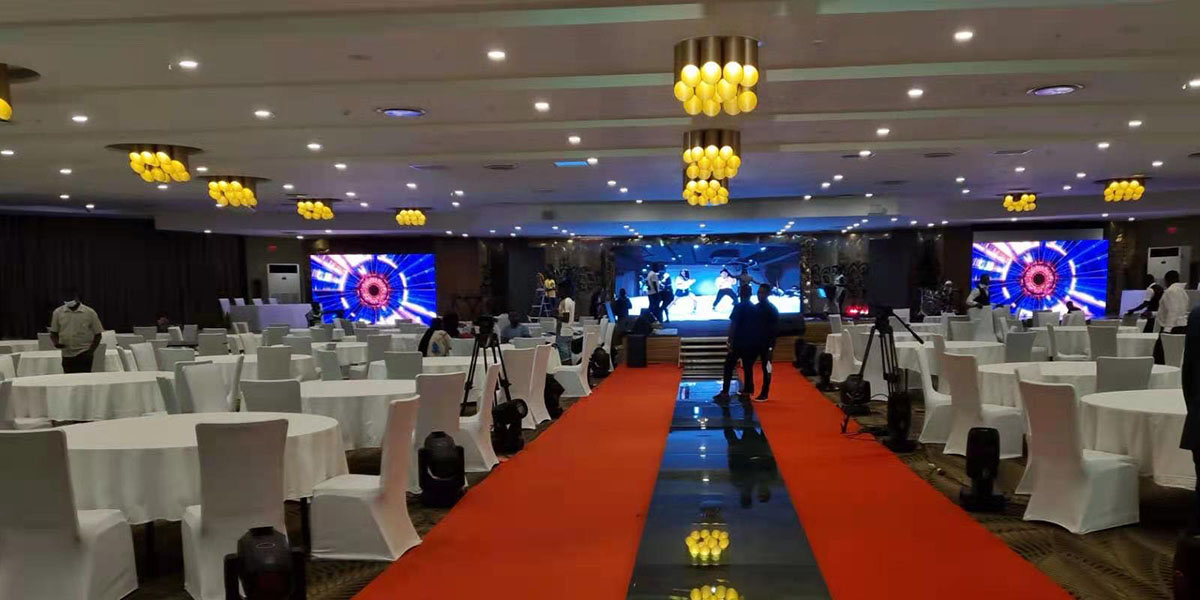

Widely used in stage rental, song and dance activities, various press conferences, exhibitions, stadiums, theaters, auditoriums, lecture halls, multifunction halls, conference rooms, interpretation halls, disc bars, nightclubs, high-end entertainment discotheques, star concerts, important cultural activities in various cities and other places.
1: LED screen: commonly used specifications are P10, P12.5, P18.75, P18SMD, P20.83, P25
2: LED grid screen: P10, P12.5, P20, P30.25, P37.5
3: LED full color screen: P2.5, P2.604, P2.976, P3.91, P4.81, P4, P5, P6, etc
4: LED-COB screen: P1.5, P1.875, P2.0, P2.5, P3.0
Technical parameters of TLI LED rental LED display screen:
1. Light weight: 7kg/㎡（per 500x500mm cabinet);
2, the cabinet is thin: only 80mm or less;
3. High refresh rate: 1920Hz-3840Hz;
4. Series of product accessories can be shared;
5. The flatness < 0.2mm, which can effectively eliminate the mosaic phenomenon;
6. Quick lock can be installed manually, which is fast and convenient within one minute;

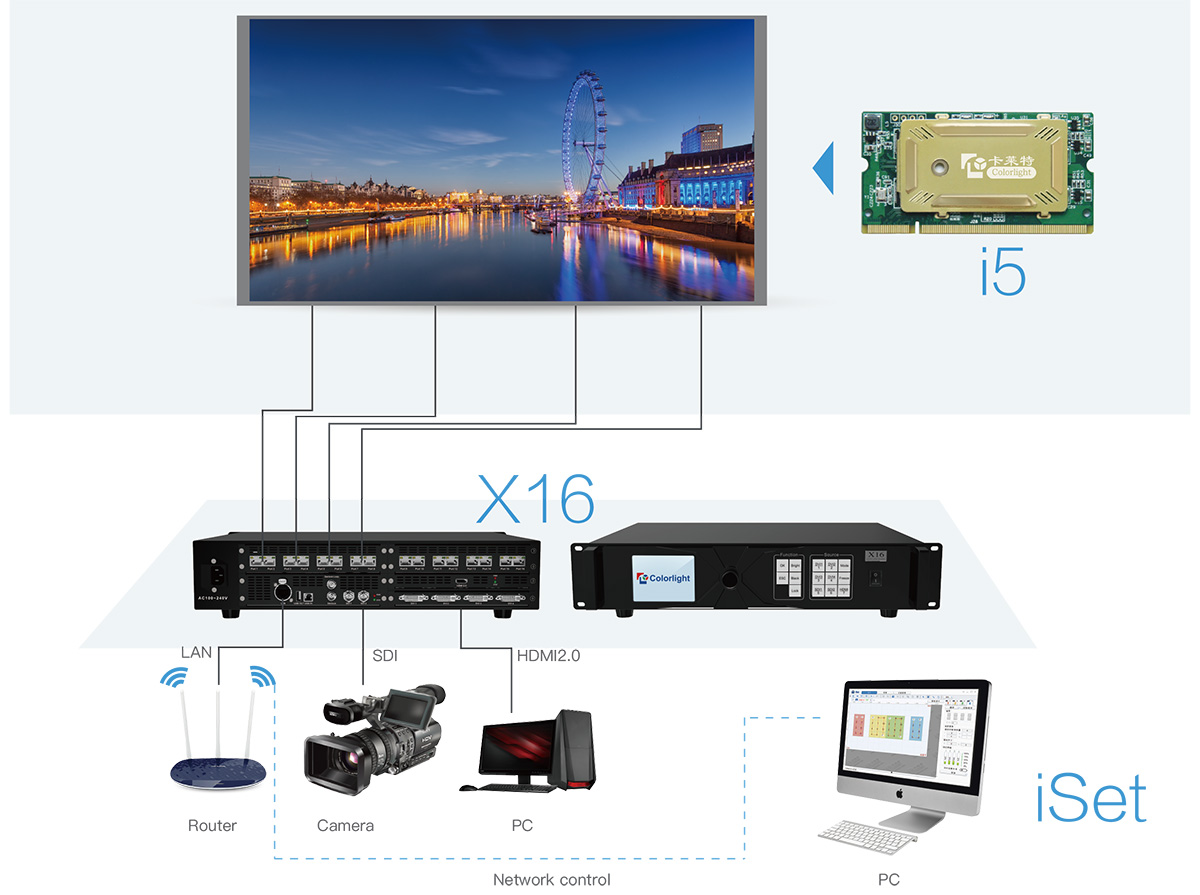

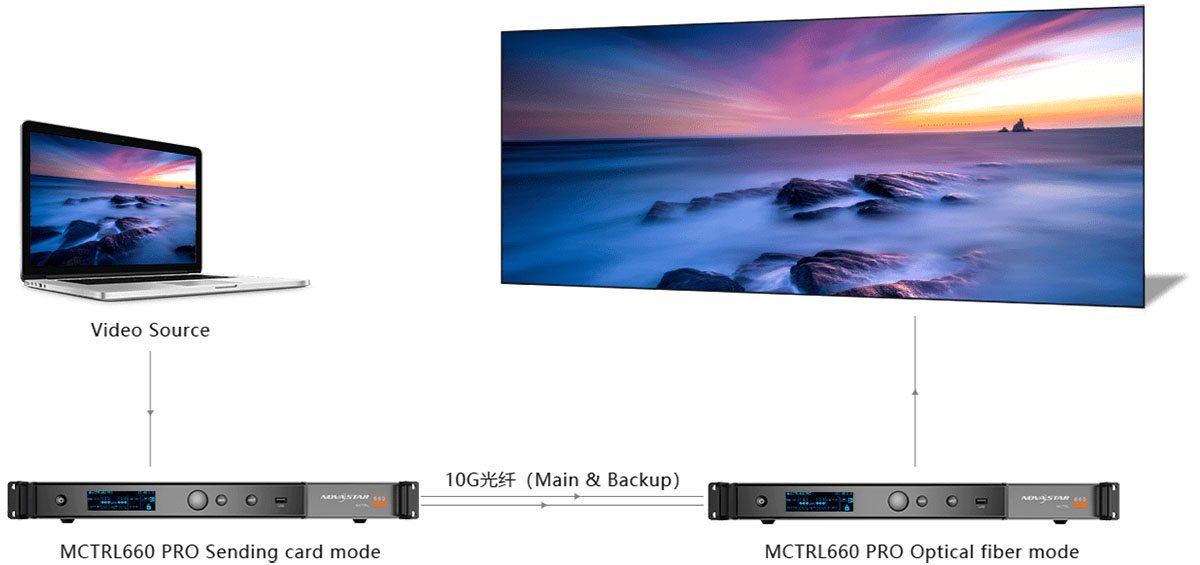

There are two kinds of control methods including synchronous and asynchronous control methods. The basic structure of LED control system is generally like what the picture Novastar MCTRL660pro and Colorlight X16 controller shows.
When we use synchronous control system to control the Rental LED Display screen,the LED display will show the real-time content of the computer monitor which connected to the LED controller.The synchronous control method means we always need the computer (or video input resource) to connect the synchronous LED controller, the display will show the content of the input resource device provide, and when the input terminal stops displaying, or say disconnected, the screen will stop showing at the same time.

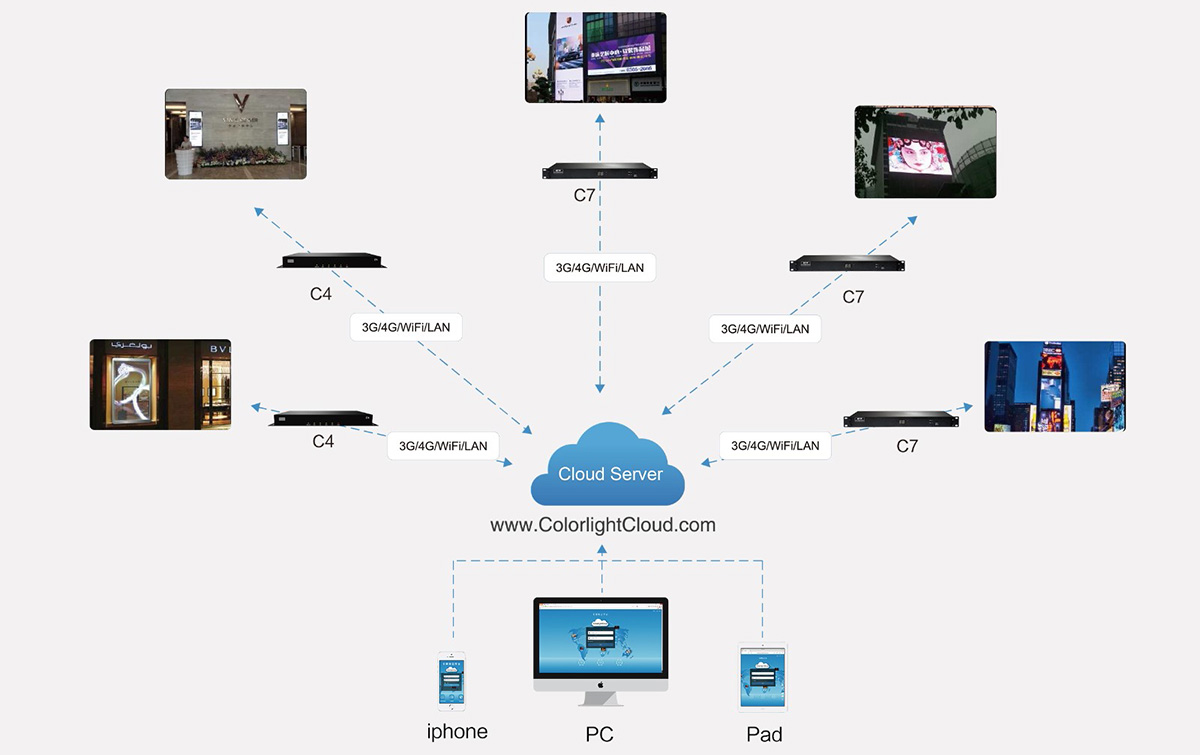

The asynchronous system in the other hand, it doesn’t display the same content of the computer monitor or input resource content, you can edit the content on the computer and upload the content to the asynchronous controller.The contents will be stored in the sender box, and the LED screen will display the contents that have already been stored in advance. This makes the LED displays to show the contents themselves separately.
There are some points for you to understand the differences better:
(1) Asynchronous system mainly controls the screen through WIFI/4G connection, you also can control the screen through computer connect to the controller port directly.
(2) You can’t play the real-time contents by the asynchronous control system,but you can change to synchronous mode when you use some controllers which have asynchronous and synchronous mode 2in1.
(3) When the total resolution of the LED Display is more than 2.3 million, we can only use synchronous LED controllers to manage the LED display.
In LED Display market there are a few well-know brands company:
There are other brands offer the same functions controllers too.
See here the brands which we work with, they provide excellent materials and products ensure us offer our customers the best quality LED Display products.
