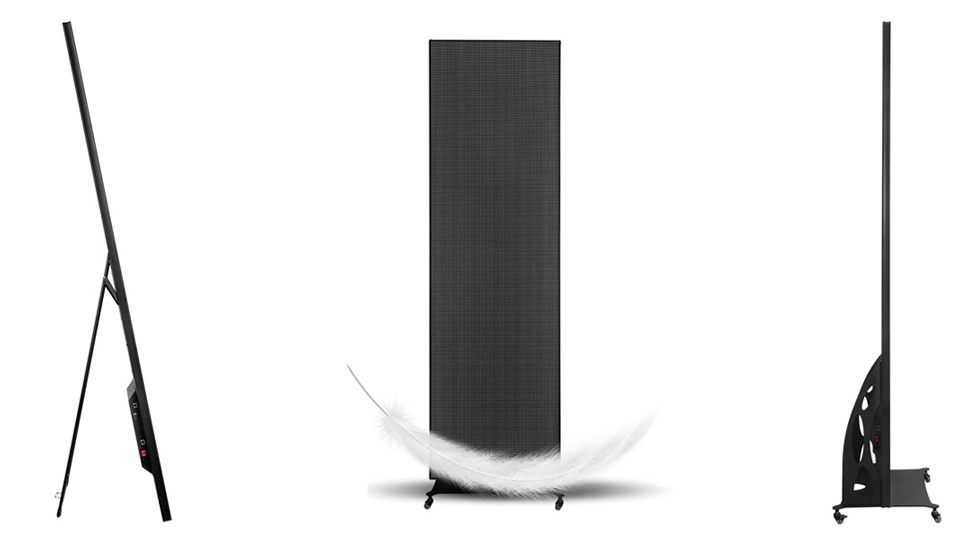

With Slim Lightweight Frame Design, only need a Little Space to stand, Excellent Visual Display, Adjustable Back Bracket, Smart Cloud Management Control method, Multi-installation Method, with 4 wheels to move or stand still.
Specially designed to be lightweight, also the cabinet frame and LED parts focus on reliability and portability.

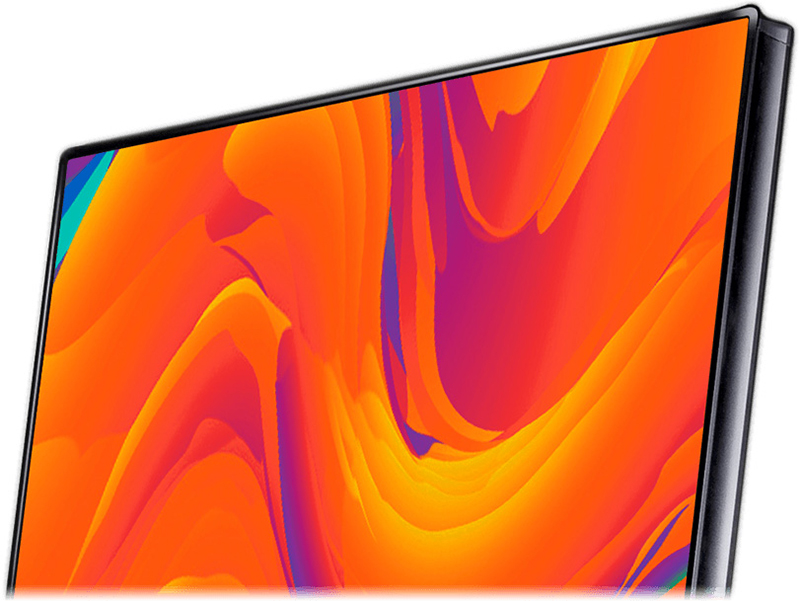

TPoster slim and light weight design make the product easy to move and suitable to use in narrow space.
TLI LED Poster Screen uses high-quality National LED Modules to ensure High Refresh Rate and High Contrast Ratio, use better ICs so the refresh rate can reach up to 3840Hz with high definition with 5000:1. Better quality materials provide High Brightness, viewers have better visual experiance.

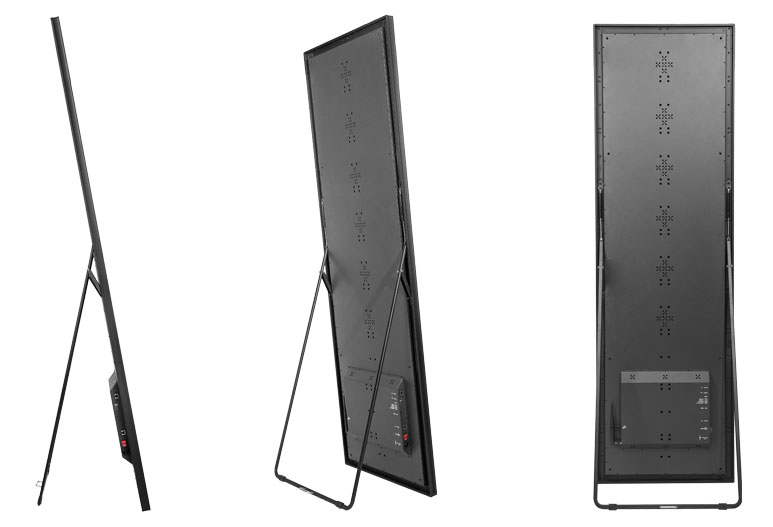

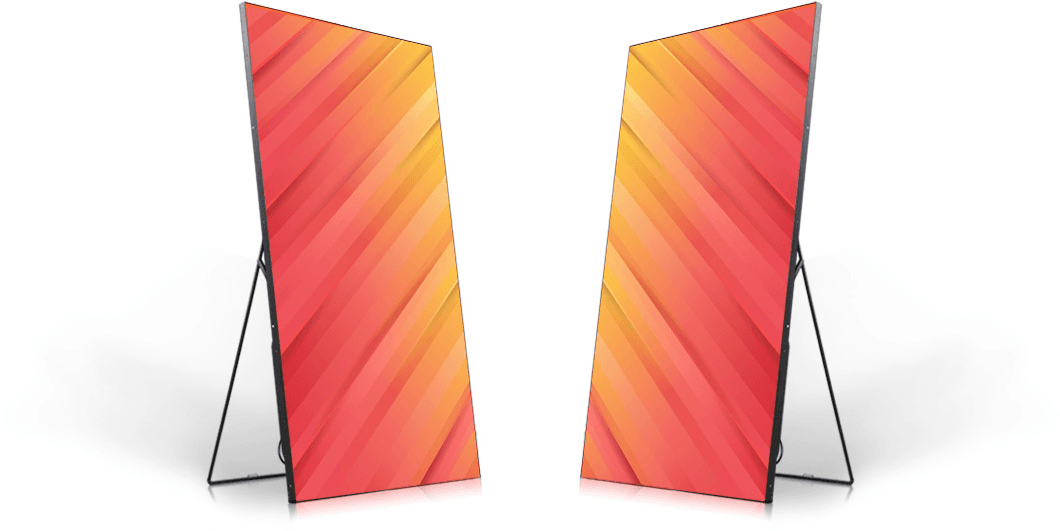

TLI LED TPoster series LED Poster Screen is equipped with Hydraulic Back Bracket, which makes it standing stably on ground, this makes adjustable viewing angle available, allowing more audience to reach the content easily.

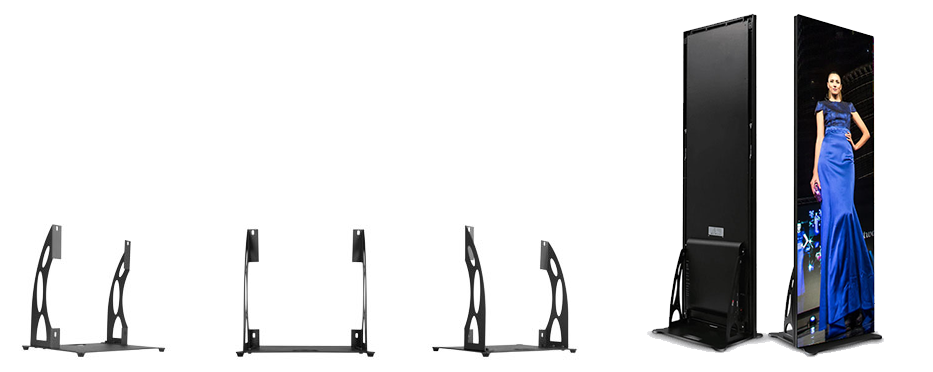

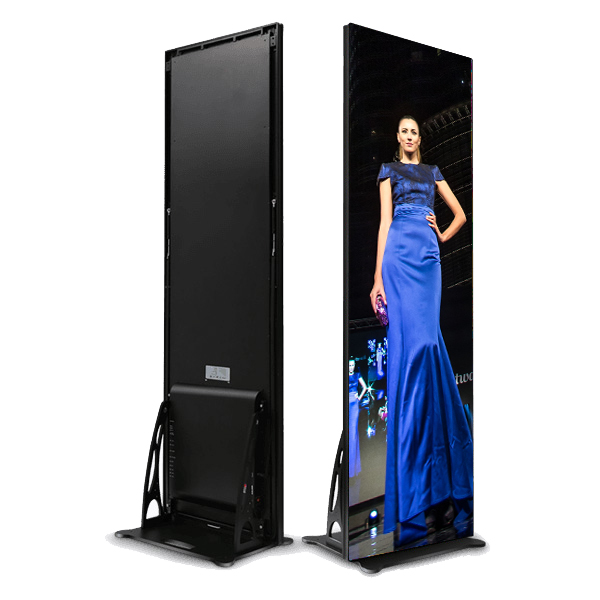

Base-standing Bracket makes the TPoster LED poster stand on ground stably. with 4 wheels the bracket is movable ,
which makes the poster rotate freely, and allows freely movement in all directions.

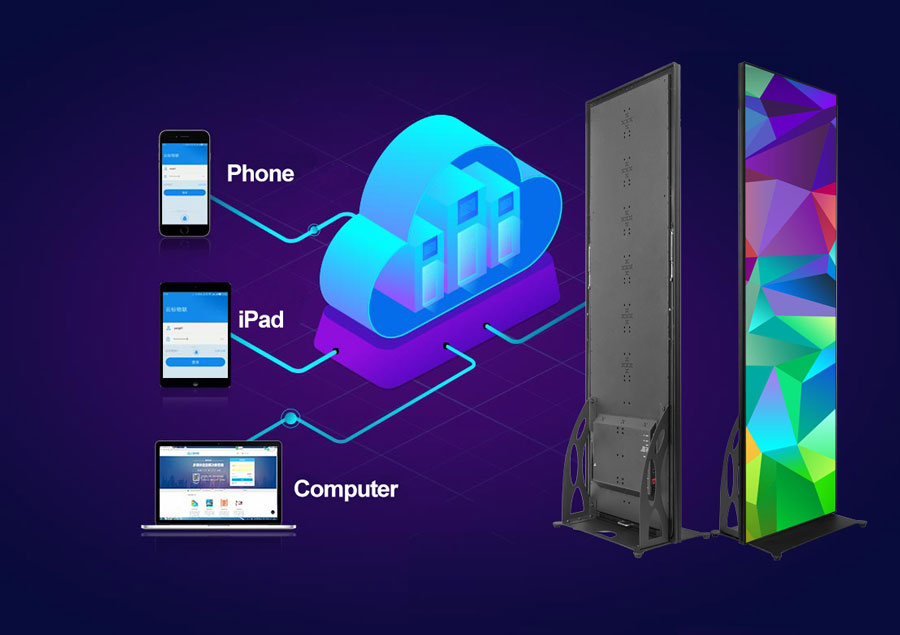

TLI TPoster LED Screen Poster supports Synchronous & Asynchronous Control method. The LED screen content can be updated via ipad, phone, PC computer, or notebook. Support Real-time Play, Cross-platform Publish, and USB, WIFI. Support operation by IOS or Android devices. Support Built-in Media Player to store content and play locally.

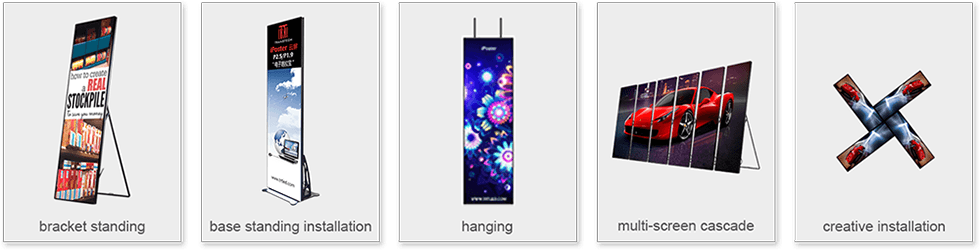

TLI TPoster LED display supports Multi-installation Ways.Bracket standing installation, base-standing installation,
lifting or hanging installation, multi cascade installation and creative installation.No need steel structure, you can install the screens quickly and conveniently.

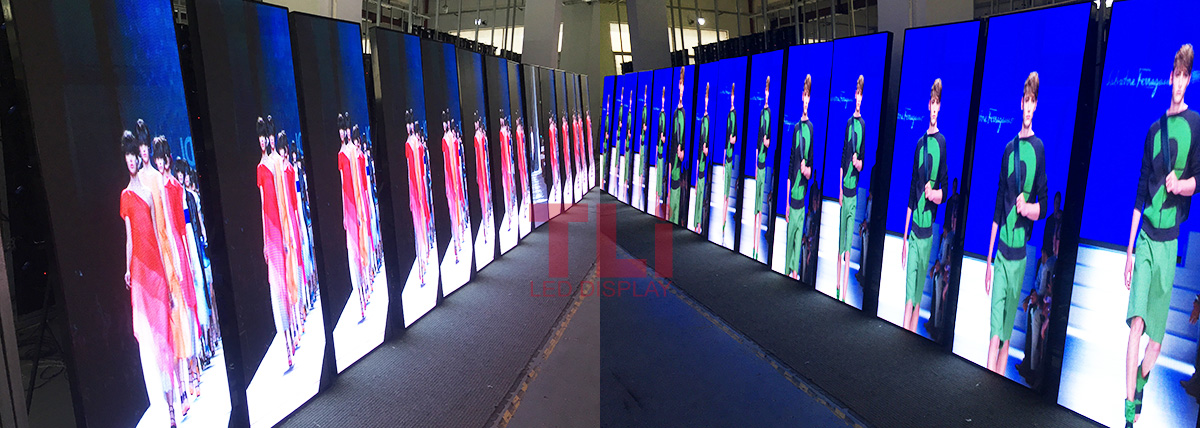

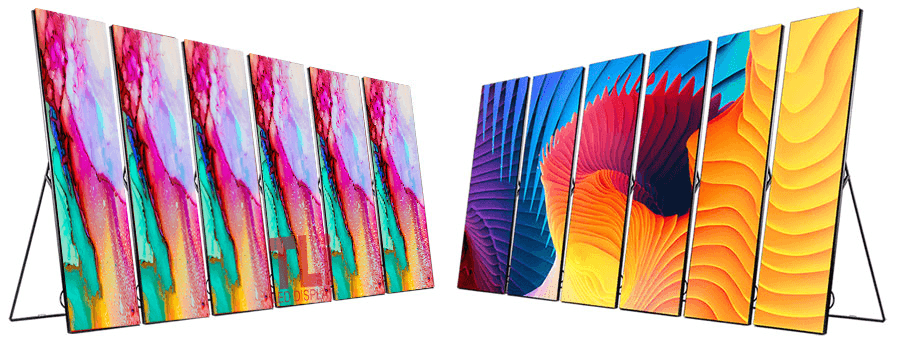

TLI TPoster series poster LED display supports Seamless Cascade multi screens to reach a large one.
Also poster LED screens can play as one big screen or separately through controller management.
Like this Poster LED displays? Send us message now, we will reply you in 24 hours.
| MODEL | P 2 | P 2.5 | |
| LAMP | LED Type | SMD(1515) | SMD(2121) |
| MODULE | Pixel pitch | 2mm | 2.5mm |
| LED module size | 160×80mm | 320×160mm | |
| Resolution(H×W) | 320×960 | 128×64 | |
| LED driving method | 1/40 dynamic scan | 1/32 dynamic scan | |
| CABINET | LED module layout(H×W) | 12×2 | 12×2 |
| Resolution(H×W) | 320×960 | 256×768 | |
| Display area | 1.06m² | 1.06m² | |

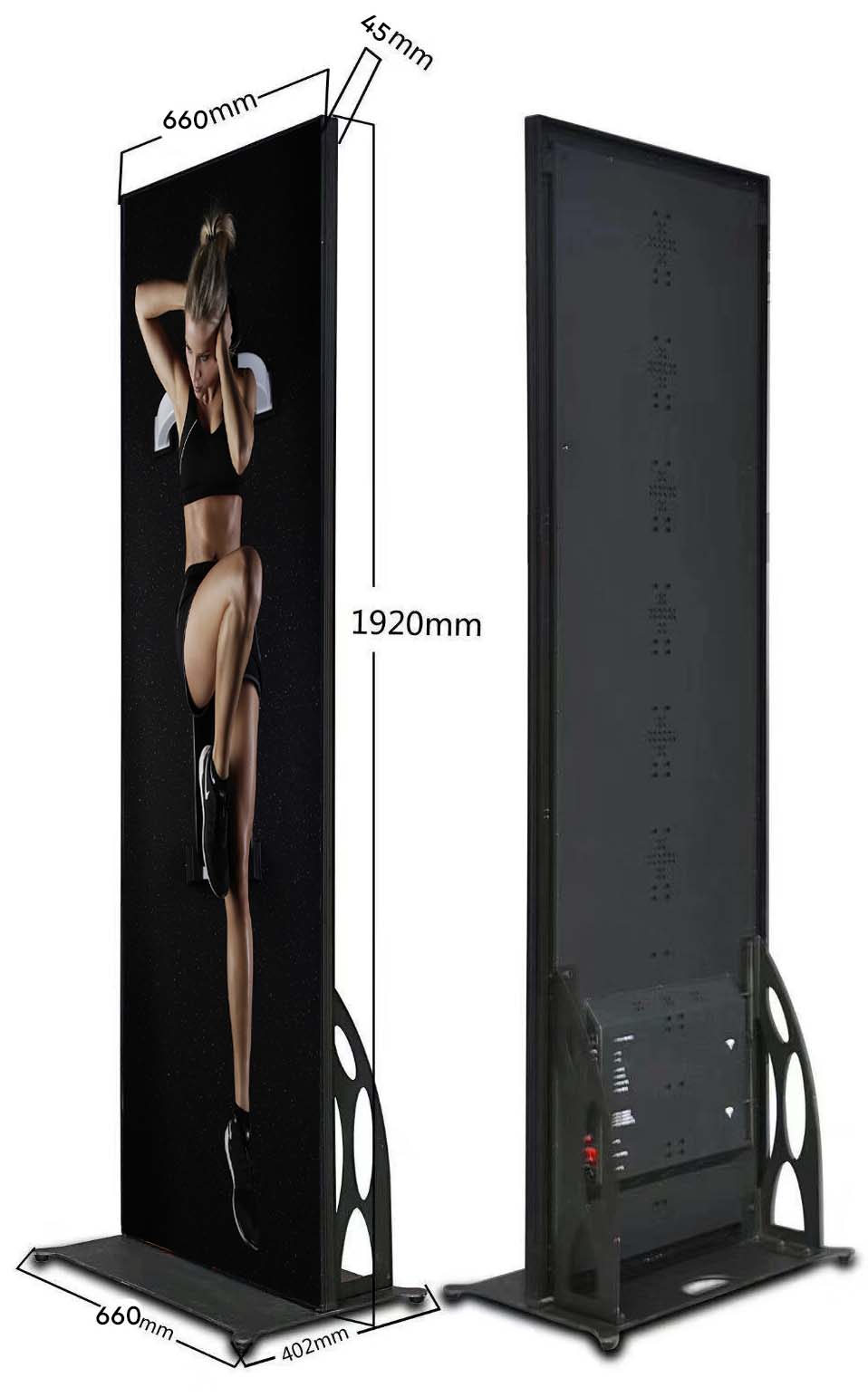

| Cabinet size | 640×1920×35mm | 640×1920×35mm | |
| Net. weight/set | 45kg | 45kg | |
| Ingress protection | Front IP40/Rear IP40 | Front IP40/Rear IP40 | |
| Power | AC 240/100±10% | AC 240/100±10% | |
| Serviceability | Rear service | Rear service | |
| DISPLAY | Max.Power consumption | 500W | 650W |
| Avg.Power consumption | 150W | 195W | |
| Viewing angle(H/V) | 160°/160° | 160°/160° | |
| Brightness | 800~1000 nits | 800~1000 nits | |
| Pixel density(pixel/m²) | 169344 | 279936 | |
| Contrast ratio | 4,000:1 | 4,000:1 | |
| Temperature/Humidity(Operation/Storage) | -10°C to +40°C; 10% to 90% | -10°C to +40°C; 10% to 90% | |
| (Operation/Storage) | |||
| Lifetime(50% brightness) | 80,000hours | 80,000hours | |
| Processing | 16bit | 16bit | |
| Colors | 281trillion | 281trillion | |
| Refresh rate | ≥2880Hz | ≥2880Hz |
344*1032mm/Cabinet
640*1920mm Cabinet size
320*960mm/Cabinet
640*1920mm Cabinet size
256*768mm/Cabinet
640*1920mm Cabinet size
208*624mm/Cabinet
640*1920mm Cabinet size
