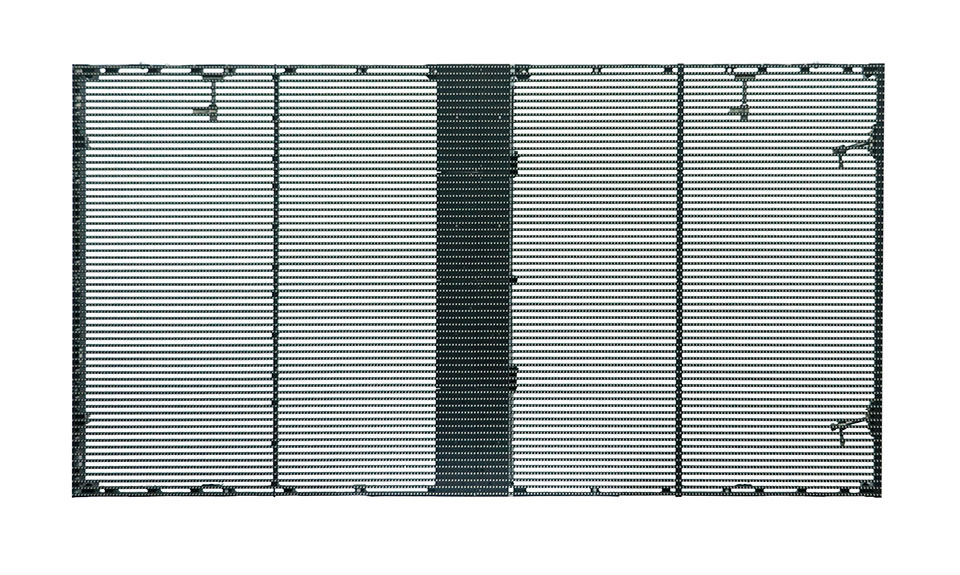

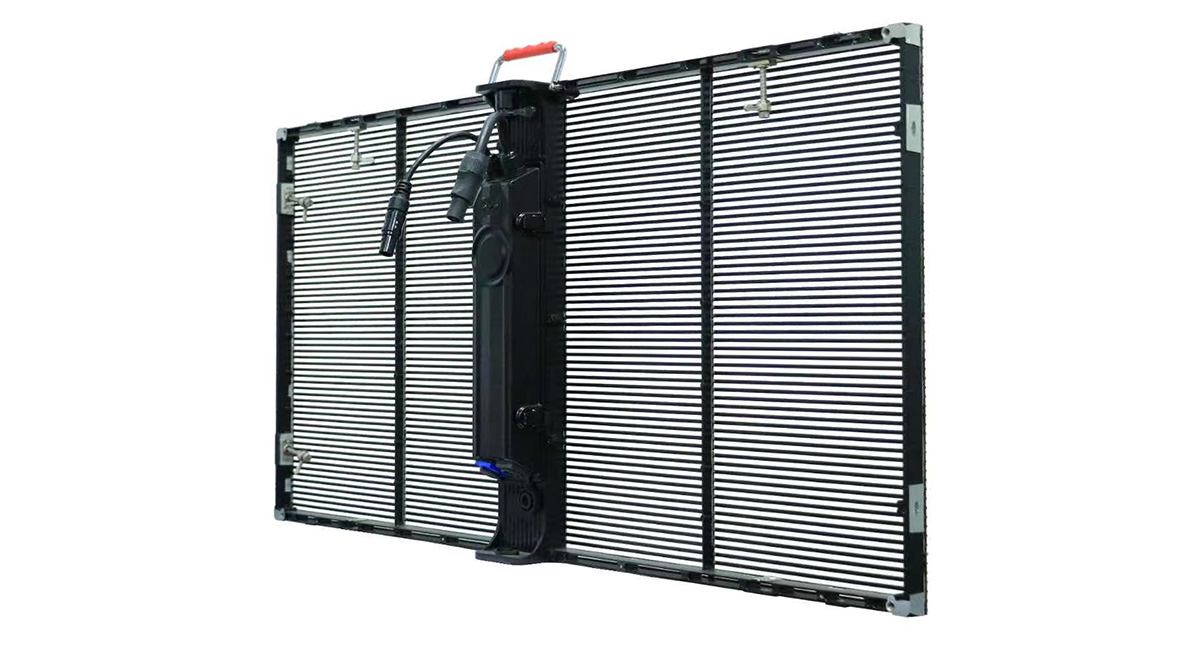

1000x500mm

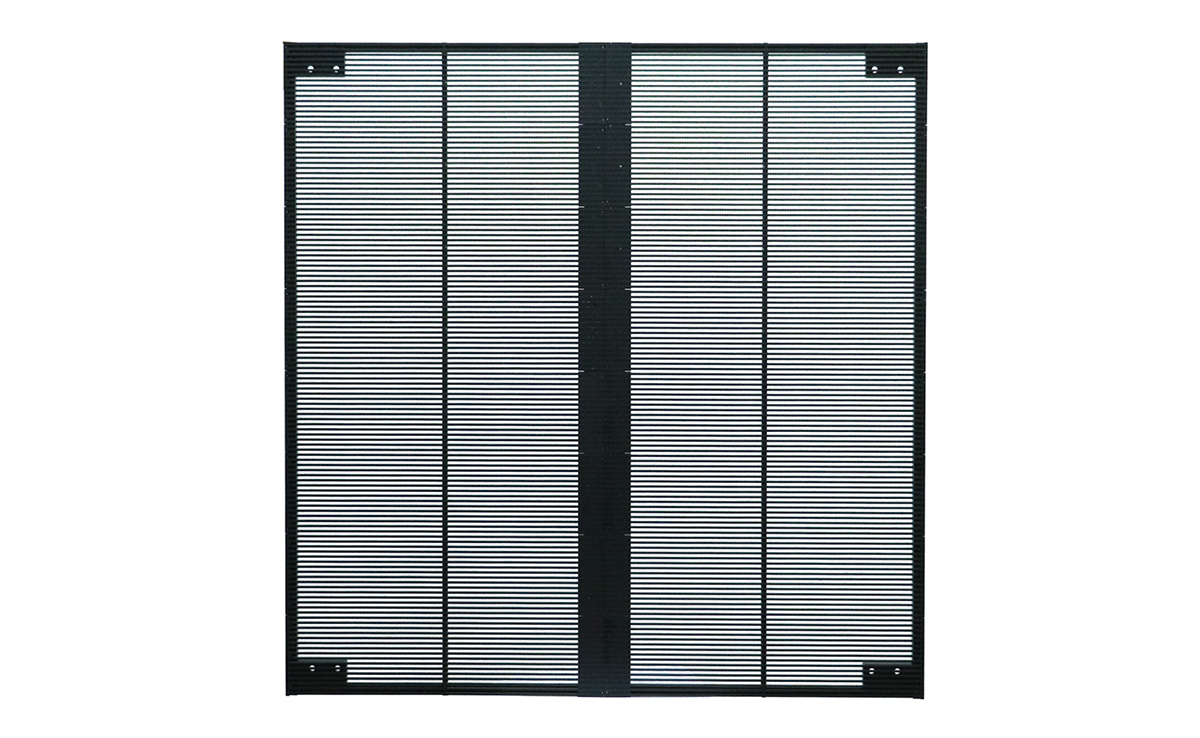

1000x1000mm
TLI classic series transparent LED display glass window LED display features in high transparent, viewing angle, simple operation, high contrast ratio and more. You can use this product without to change architectural appearance and transparency of the glass window. Modularized design, more than 80% transparency, easy installation and maintenance, new and unique display effect.
Thinner and lighter display body., can be easily installed to the original glass curtain window wall withou out any additional stell structure. Another simple and excellent display format.

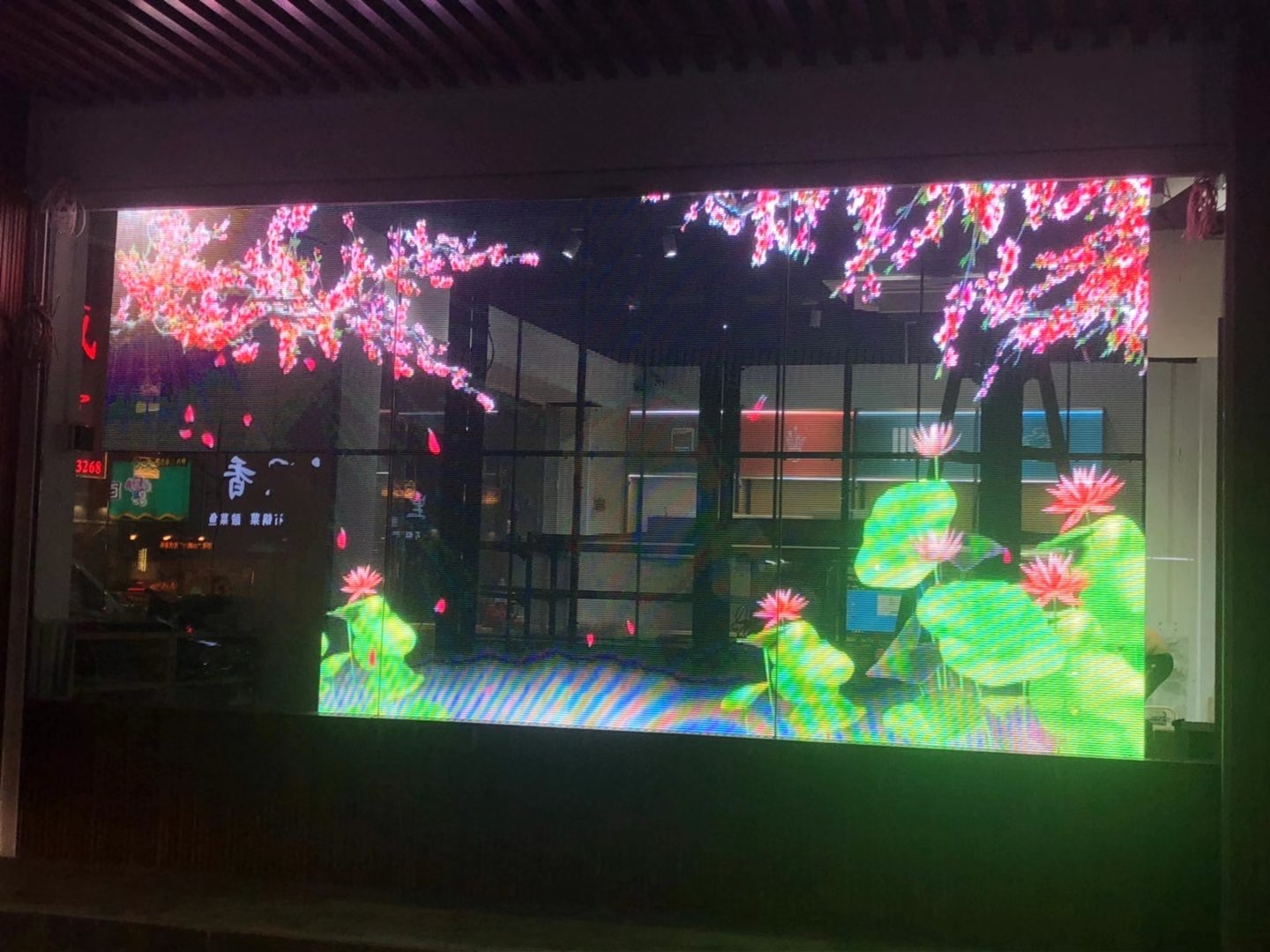

High transparency is better for glass wall. Indoor install, view from outside. Fashion, secure, easy to use, better advertising type for better visual experience.
TLI led transparent poster series LED display, also called as transparent LED advertising machine, can be used for any large shopping malls, airports, indoor chain shops, banks, exhibition centers, luxury stores, subway stations, auto 4S stores, car showroom, hotel and other indoor locations, it is ideal to keep the visual depth of the enviroment, so that the LED transparent screen visual experience is more stronger and deeper.
Have LED display projects? Send us message now, we will reply you in 24 hours with the best solution and price for your cases.Â
| ITEM | Â | 3.91-7.82 | 7.82-7.82 | 10.4-10.4 |
| LEDÂ Type | N/A | Â 1R1G1B | 1R1G1B | 1R1G1B |
| Pixel Pitch | mm | 3.91-7.82 | 7.82-7.82 | 10.4-10.4 |
| Ingress Protection | IP | IP45 | ||
| Viewing Distance | meter | 5-100 | 8-100 | 15-120 |
| Transparency | N/A | 0.8 | 0.8 | 0.85 |
| Module Dimension | mm | 500*500 500*1000 | 500*500 500*1000 | 500*500 500*1000 |
| Weight | KG/㎡ | 15 | 15 | 14 |
| Thickness | cm | 8.5 | 8.5 | 8.5 |
| Brightness | Nits | 1000-5500 | ||
| Refresh rate | Hz | 1920-3840 | ||
| Viewing Angle | N/A | 120° | ||
| Gray Scale | Level | 14bits | ||
| ACÂ Speration | V | AC90~264 | ||
| Power Consumption(Max/Avg) | W/m2 | 800/240 ( Estimate ) | ||
| Storage Tem. | F/C | -4 ~ 140F/-20C ~ +60C | ||
| Storage Humidity | RH | 10% ~ 85% | ||
| Operating Tem. | F/C | -4F ~ 140F/-20C ~ +60 | ||
| Operating Humidity | RH | 10% ~ 85% | ||
| Lift time(50% brightness) | Hour | 100,000 | ||
| Control Mode | N/A | Video Sync | ||
We offer full technical support for our customers, also for more information or get quotes from us, click here to contact us.
